1. This position control lever can be used
to lower and lift an imple ment freely.
2. Pulling the lever back lifts the im plement
while pushing it forward lowers the im-
plement.
CAUTION
To avoid a personal injury, use the
position control lever when attach-
ing/detaching the implement.

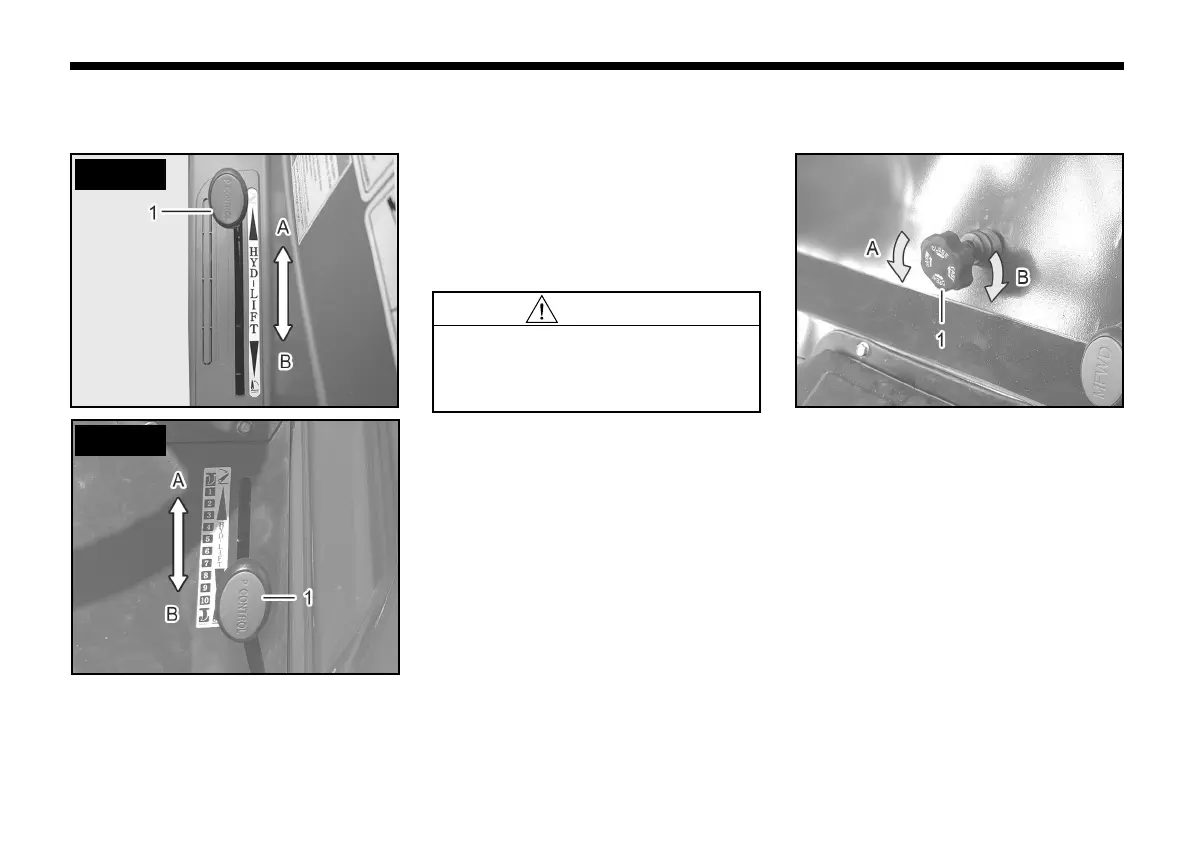

TO RAISE OR LOWER THE IMPLEMENT
(1) Position Control Lever
(A) Down (B) Up
ADJUSTING THE LOWERING
SPEED OF THE IMPLEMENT
For adjusting the lowering speed, turn
valve (A) to the left for faster movement or
(B) to the right for slower movement. Turn-
ing the valve fully to the right (B) will block
the hydraulic pressure and will cause the
implement to stop.
(1) Flow Control Valve
(A) Fast (B) Slow
