BAD BOY TRACTOR
CONTROLS 1(PEDALS)
[HST]

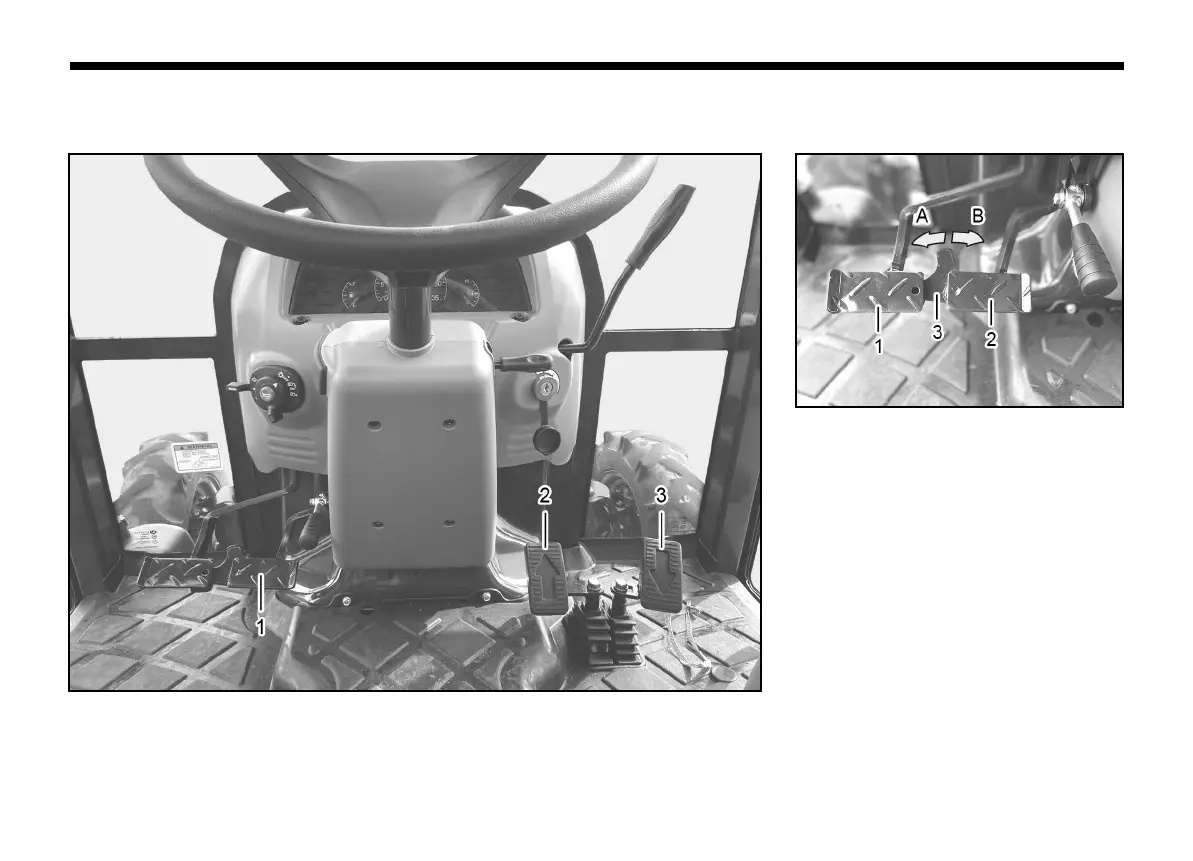

(1) Brake Pedal
(2) Forward Shuttle Pedal
(3) Reverse Shuttle Pedal
BRAKE PEDAL (LEFT/RIGHT)
Each brake pedal is activated independent-
ly. To make a sharp turn, depress one of
the brake pedals on the turning direction to
brake the rear wheel on the same side.
Make
sure to interlock the brake pedals
with the link bracket before driving on a
public road.
(1) Left Brake Pedal (2) Right Brake Pedal
(3) Link Bracket
(A) Engage (B) Release
