BAD BOY TRACTOR
ROPS FOLDING METHOD
HOW TO FOLD DOWN THE ROPS
1. Turn the handle to separate the push
plate and the ROPS.
2. Pull the pins on both sides of the tractor
and turn them about 1/4 turns to release
the lock of the ROPS.
3. Raise the ROPS a little.
4. Replace the pin.
5. Fold down the ROPS, and the pins will
lock into place.
If it is not certain whether the pins are
fixed, shake the frame a little bit to fix
the pins for sure.
Raise the safety frame.
[ROPS]
Pull the pins on both
sides and turn them
about 1/4 turns.
Replace
the pins.
Don’t fasten your seat belt after fold-
ing ROPS.
When you drive tractor, fold up verti-
cally.
Fasten your seat belt after folding up
ROPS.
When working with the tractor, don’t
fold down ROPS.
Don’t change ROPS without authority.
Before using tractor, check your
ROPS support and other parts.
If there is damage to the ROPS,
change ROPS at once.
[Otherwise]
If the tractor rolls over, you could be in-
jured or death may occur.
ROPS are a very important structure
for protection on roll over, always
check your ROPS.
CAUTION

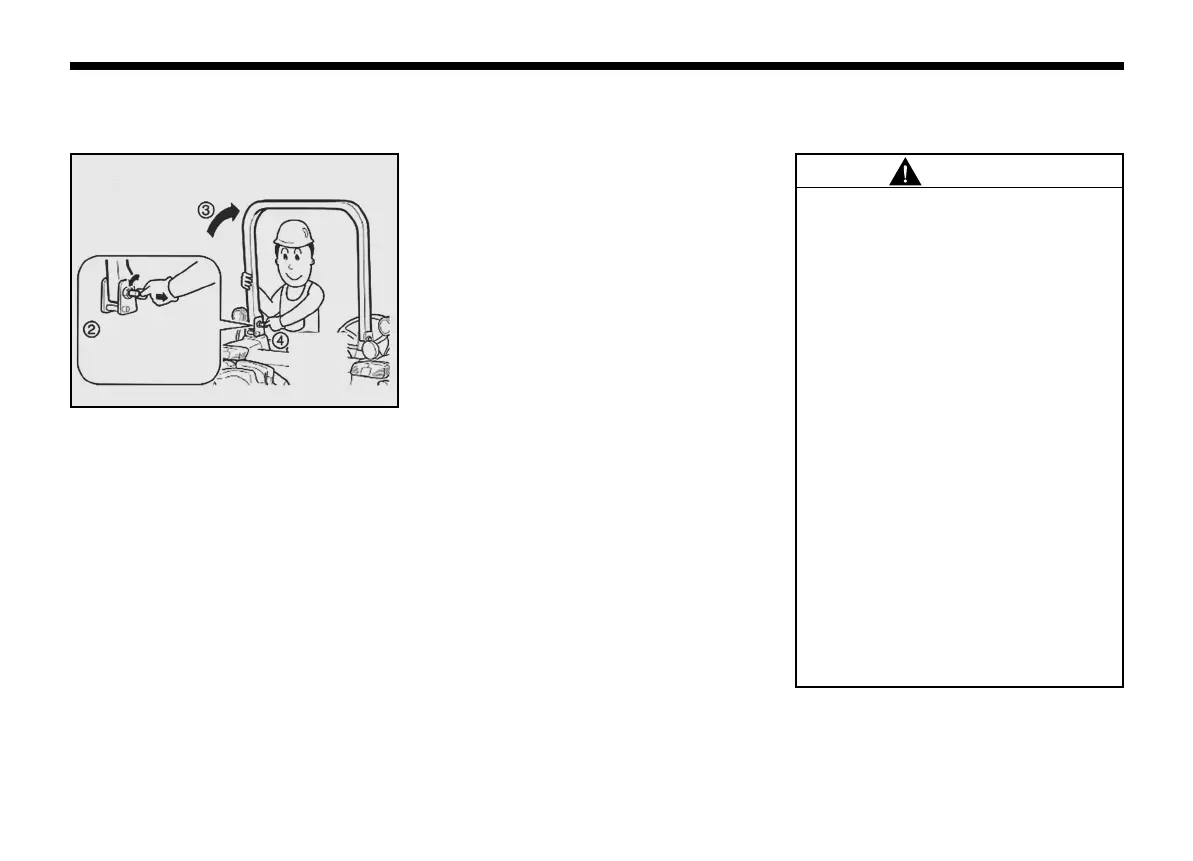

1. Pull the pins on both sides of the tractor
and turn them about 1/4 turns to release
the lock of the ROPS.
2. Raise the ROPS a little.
3. Replace the pins.
4. Stand the ROPS up, and the pins will
lock into place.
If it is not certain whether the pins are
xed, shake the ROPS a little bit to x
the pins for sure.
5. Turn the handle to x the push plate and
the frame.
HOW TO STAND UP THE ROPS
