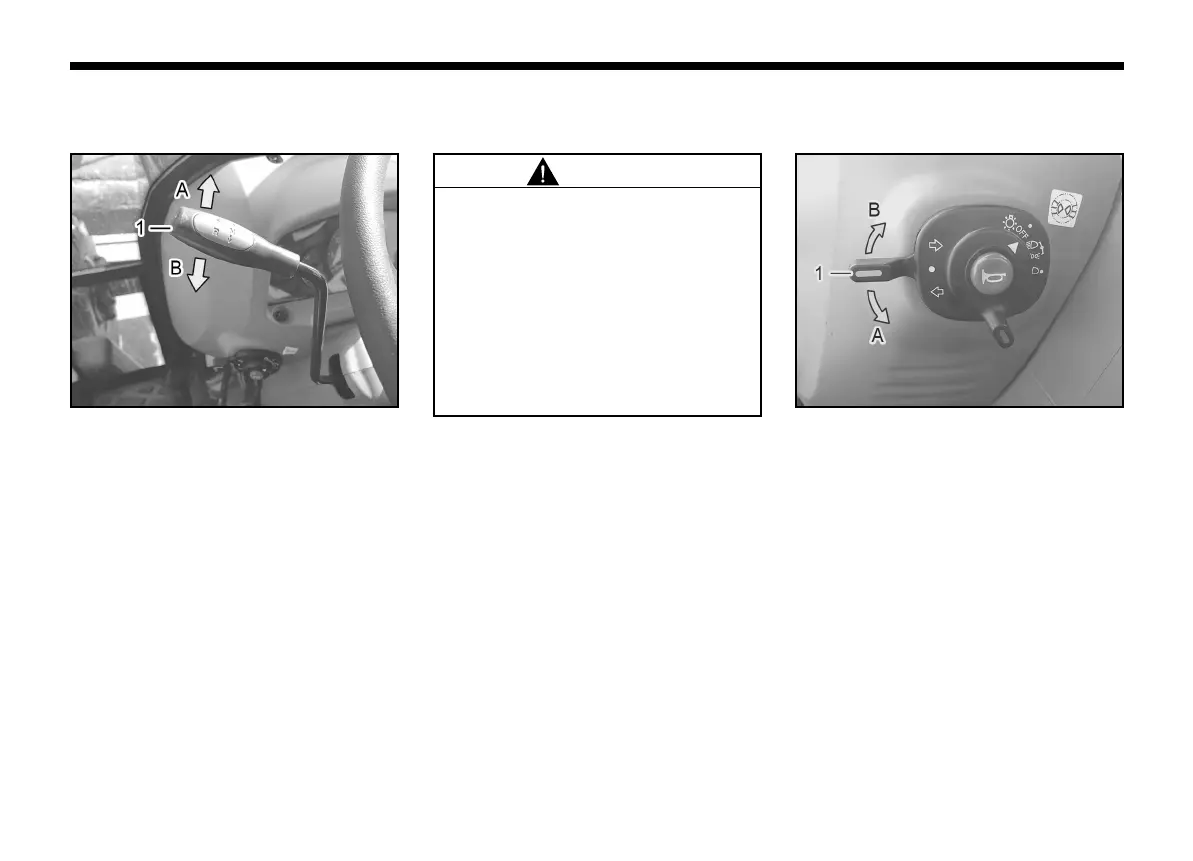

F-R SHUTTLE LEVER
This is used to drive the tractor forward or
backward. Shift the lever with the clutch
pedal and brake pedal depressed to maxi-
mum.
(1) F-R Shuttle Lever
(A) Forward (B) Reverse
COMBINATION SWITCH
►TURN SIGNAL LAMP SWITCH
(1) Turn Signal Lamp Switch
(A) LH (B) RH
The turn signal lamps can be operated with
the main (ignition) key switch in the “ON”
position.
Left turn: Turn the turn signal switch
counterclockwise. Then, the left turn sig-
nal lamp and the left turn signal lamp on
the instrument cluster blink.
Right turn: Push the turn signal switch
clockwise. Then, the right turn signal
lamp and the right turn signal lamp on
the instrument cluster blink.
For safety, when shifting from “for-
ward” to “reverse” or from “reverse”
to “forward”, put the lever in the “neu-
tral” position and wait for the trac-
tor to stop moving before shifting the
gear to the opposite direction. T
o en-
sure safety, the lever must first be
pulled upward for shifting to another
position.
CAUTION
