BAD BOY TRACTOR
BATTERY CHARGE WARNING
LAMP

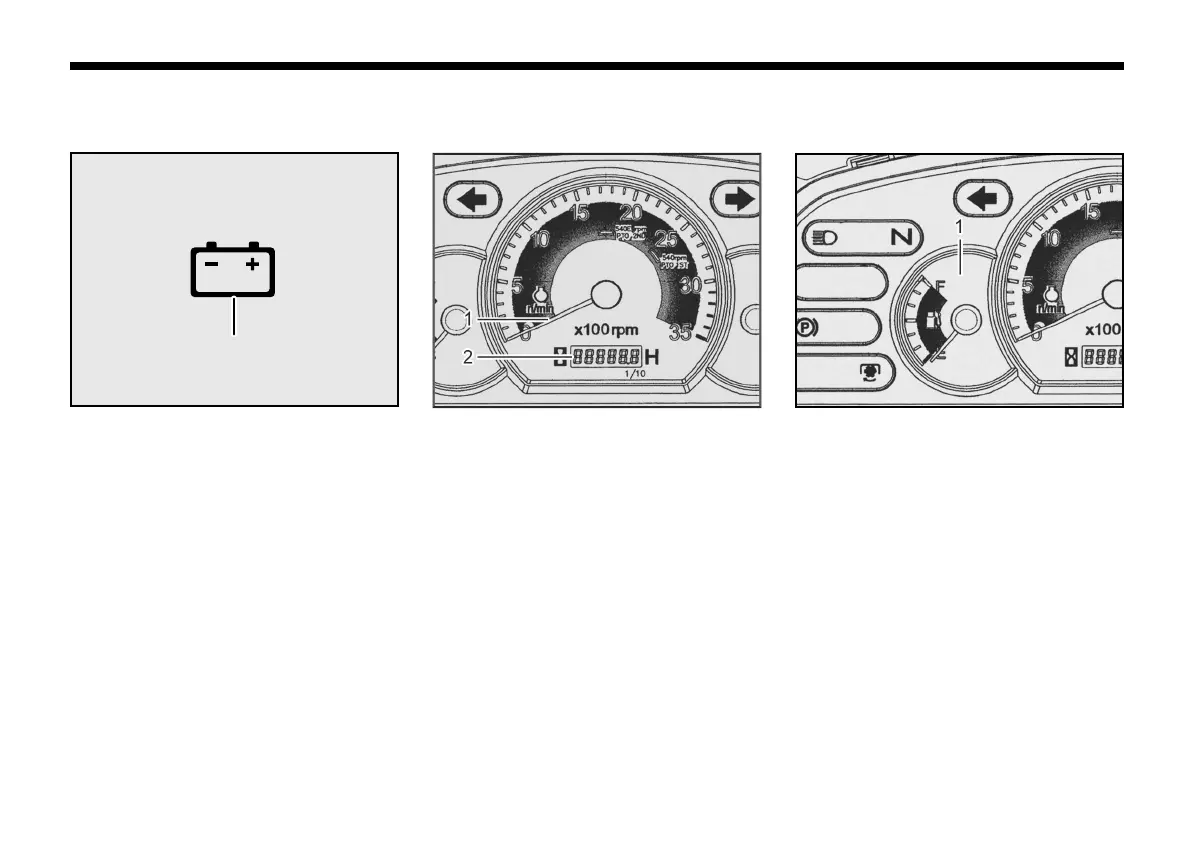

(1) Battery Charge Warning Lamp
1
1
RPM GAUGE
/ENGINE USING HOUR METER
The needle indicates the number of en-
gine RPM It indicates the tractor’s run-
ning hours. By multiplying the digit in the
far right position by 6, you will get the
time in minute.
(1) RPM Gauge
(2) Engine Hour Meter
It will be turned on when the main (ignition)
switch is put into the “ON” position, and
will be turned o when the battery starts
being charged after engine is started and
the engine revolution increases.
The battery will not be charged with the
engine below 1,000 rpm. (The rpm should
be 1,500 rpm or higher)
FUEL GAUGE
This indicates the remaining fuel level.
Immediately ll the fuel tank if the needle
reads the red area.
(1) Fuel Gauge
