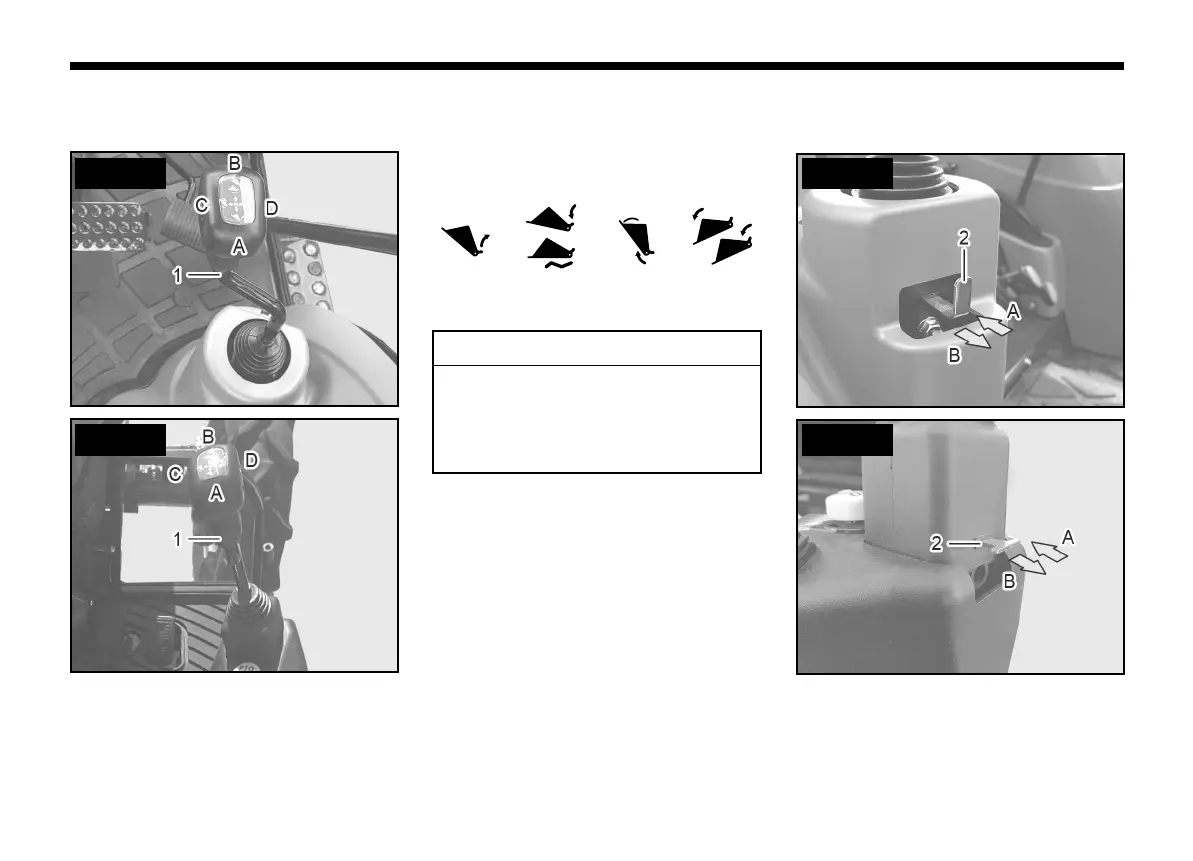

JOY-STICK LEVER
It is a device that allows control during load-
er operation.
(B)
Boom down
(A)
Boom up
(C)
Bucket up
(D)
Bucket down
Do not operate the boom cylinder
and bucket cylinder at the same time.
A loader may malfunction due to
insu cient oil ow.
NOTE
(2) Lock Button
(A) Lock (B) Release
