OPERATION
5

To prevent the locker shaft from un-
expected movement, turn “OFF” the
traction
(draft) control before attach-
ing the implement to the hitch.
WARNING
4. Detach the top link from the xing bracket.
5. Attach the top link to the top mast of the
implement.
6. Adjust the length of the top link and lower
link if required.

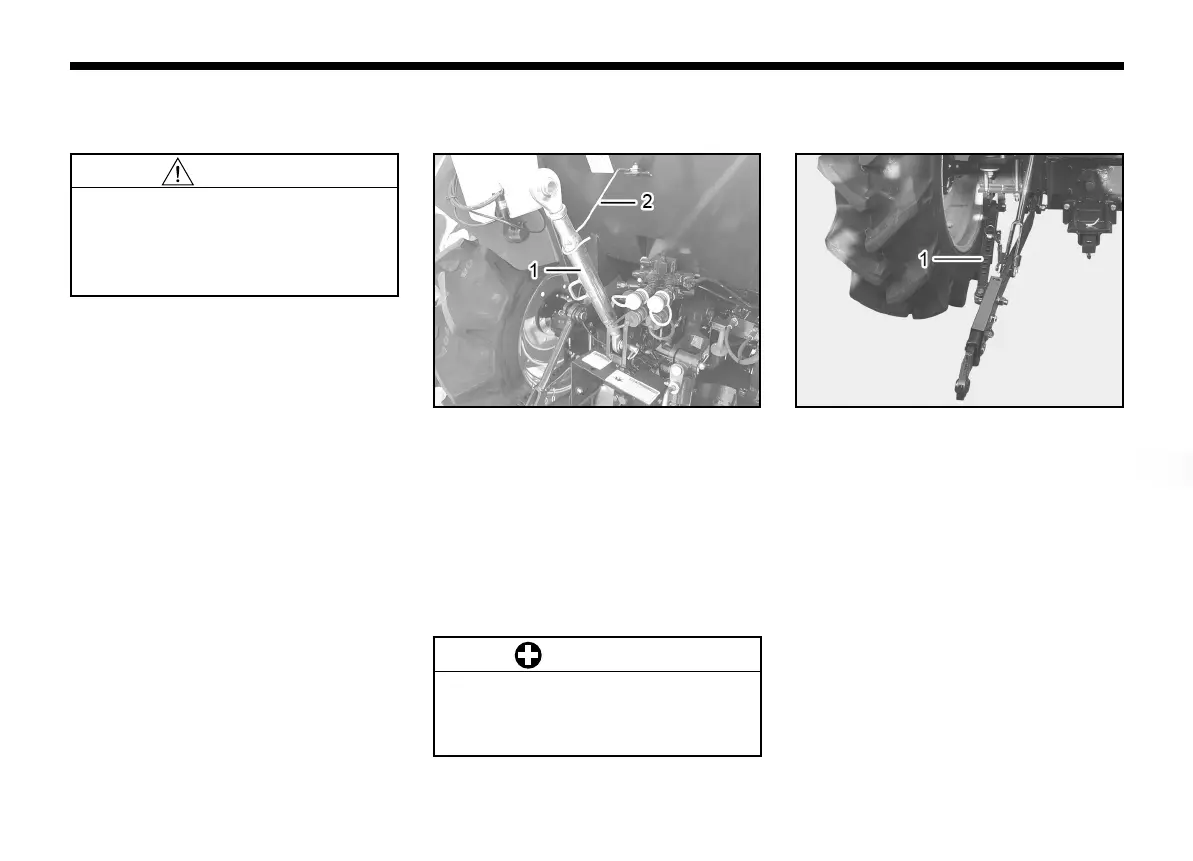

(1) Top link (2) Fixing bracket
IMPORTANT

Do not extend the top link excessively
out of the limit. The top link’s body or
thread can be damaged.
ADJUSTMENT OF CHECK LINK
1. For implements such as a plow and disc
harrow, adjust the length so that it can
be moved for 5 ~ 6 cm sideways.
2. For implements such as a rotary tiller
and mower, adjust the length so that it
cannot be swayed sideways.
(1) Check Link
