OPERATION DESCRIPTION
4

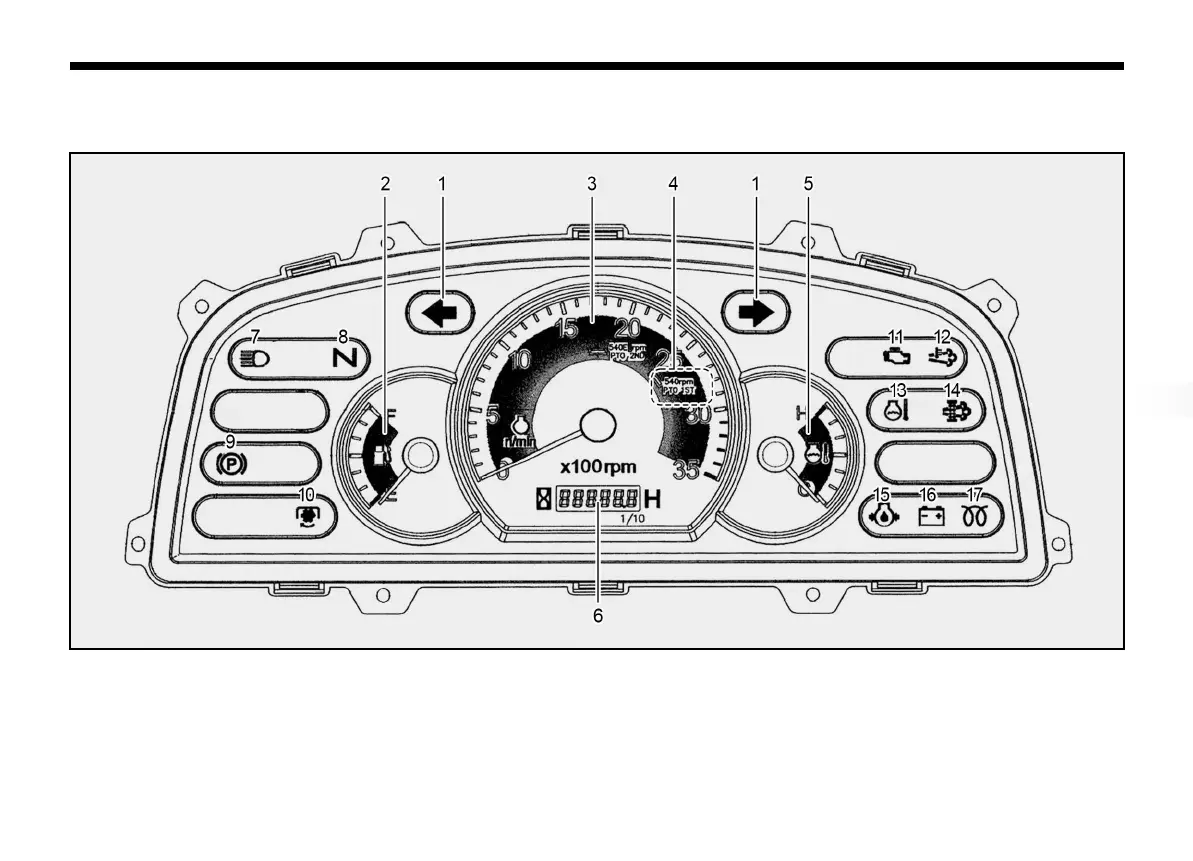

INSTRUMENT PANEL
(1) Turn Signal Lamp
(2) Fuel Gauge
(3) Tachometer
(4) PTO Rotating Position
(5) Coolant Temperature Gauge
(6) Hour Meter
(7) High beam Lamp
(8) Neutral Lamp
(9) Parking Brake Lamp
(10)
PTO Lamp
(11)
Engine Failure Lamp
(12)
EGT Lamp
(13)
Coolant Overheating
Warning Lamp
(14)
DPF Lamp
(15)
Engine Oil Pressure
Warning Lamp
(16)
Battery Charge Warning Lamp
(17)
Pre-heat Lamp
