OPERATION DESCRIPTION
4

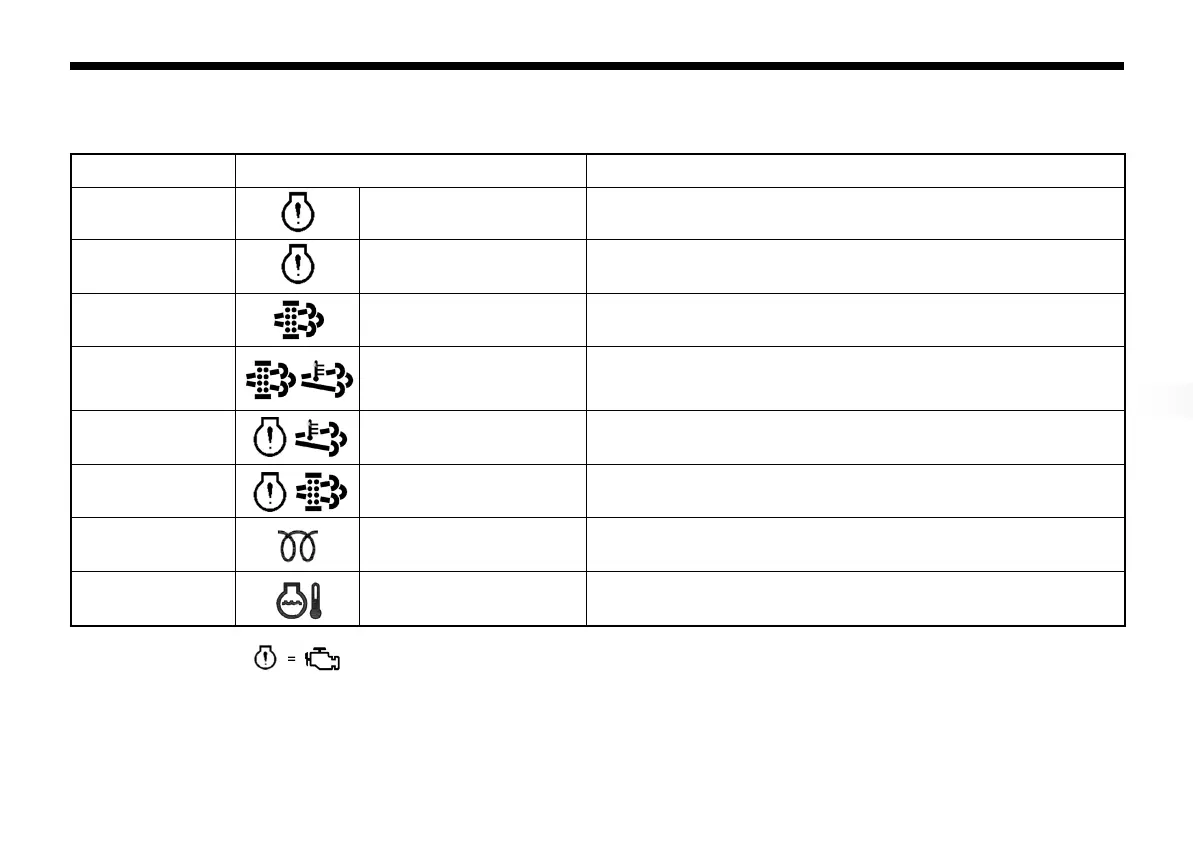

►SENSOR ERROR INDICATION & CORRECTIVE ACTION
Ite ms Lamp Indication Description
RPM error Light on Actives when the rpm signal is not input for cranking.
Water temperature
sensor error
Light on Actives when the water temperature sensor is out of range.
Di󰀨erential pressure
sensor error
Repeat blinking twice
every 2.5 sec.
Active when the di󰀨erential pressure sensor is out of range.
Learning error of
electric exhaust valve
0.5 sec. Blinking + 2 sec. Blinking
Repeat the above pattern
Active when the position of the electronic exhaust valve is not learned.
The lamp continues to be blinked until the learning of the electronic exhaust valve is
successful.
Working error of
electric exhaust valve
Blinking
Active when the position sensor of the electronic exhaust valve is out of the range.
DPF error
Light on Active when the DPF is damaged or removed.
Glow relay error
0.5 sec. Blinking
Glow Relay (Pin 25) Disconnection or Relay fault Lights up for more than 2 sec.
Cooling water overheat
Light on
When the cooling water temperature is 110 degrees or higher option)
HA00001566A instrument panel only.
1) Engine warning lamp
2)
Cleaning logic (30% close operation of valve, prevention of valve seizure) is present at every key-on.
