Badger Meter E-Series G2 - Firmware Version Screen; 4-20 mA Set Point Screen; Scaled Pulse Set Point Screen; Measurement Resolution

ESM-UM-02782-EN-12
Firmware Version Screen
Displays current meter firmware version.

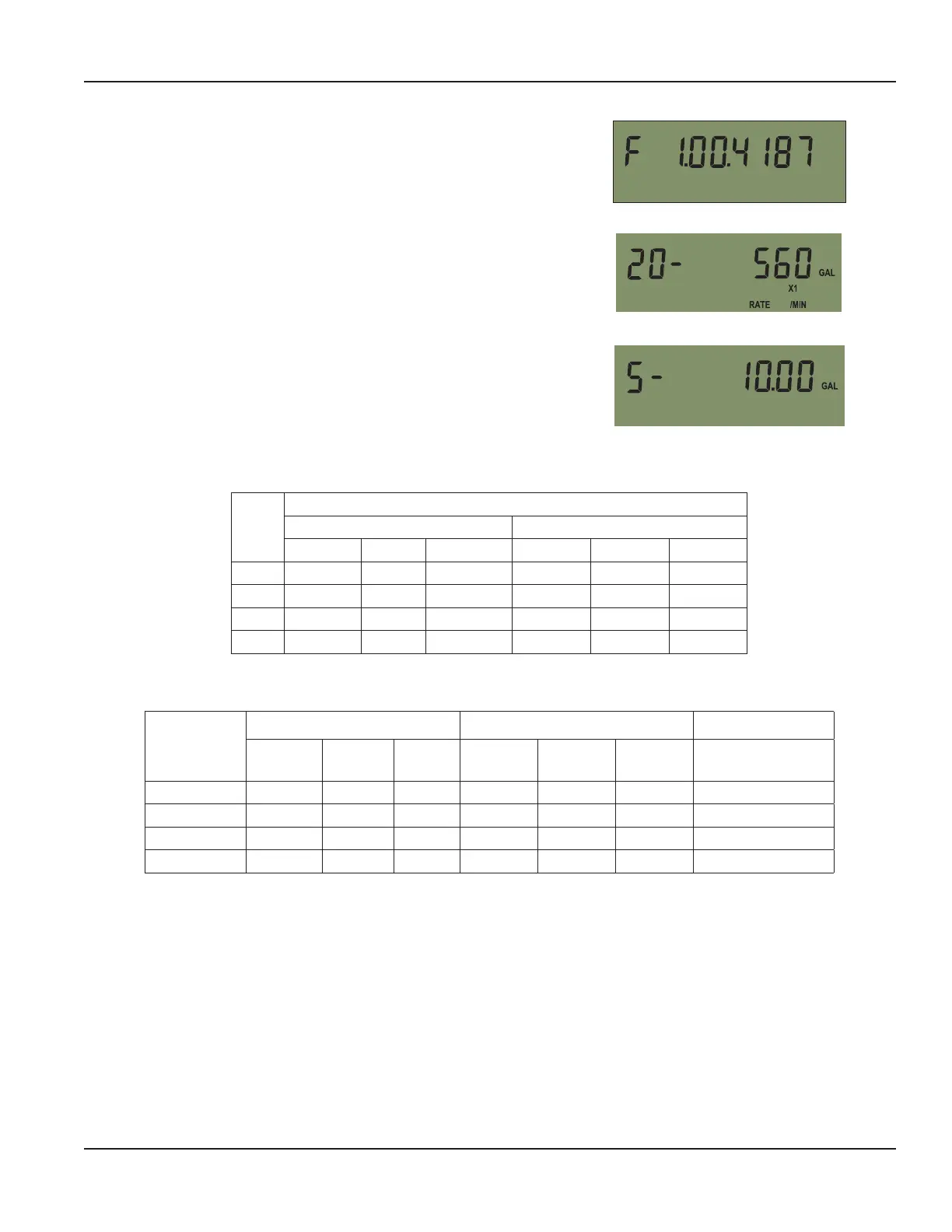

Figure 13: Firmware version screen
4-20 mA Set Point Screen
Displays for meters with 4-20 mA output. The default display value
is equal to the safe maximum operating condition flow rate which is
dependent on the size of the meter.
Figure 14: Analog output
Scaled Pulse Set Point Screen
Displays for meters with scaled pulse output. The display resolution
presents the pulse weight for a given unit of measure. See the default
pulse weight chart for each unit of measure in Figure 16.
The unscaled pulse output does not have a dedicated display screen.
Default values are shown in the chart in Figure 16.
Figure 15: Scaled pulse output
Meter
Size
Pulse Weight
Scaled (units/pulse) Unscaled (units/pulse)
gal ft3 m3 gal ft3 m3
3 in. 10 1
0.1 0.250 0.05 0.001
4 in. 10 1 0.1 0.500 0.1 0.002
6 in. 100 10 1 1.000 0.1 0.005
8 in. 100 10 1 2.000 0.2 0.005
Figure 16: Default pulse weights
Measurement Resolution
E-Series
Ultrasonic
Meter Size
Scaled (pulse/unit) Unscaled (pulse/unit) Analog Output
gal ft3 m3 gal ft3 m3
20 mA Set point
(gpm)
3 in.
0.10 1 10.0 4 20 1000 560
4 in.
0.10 1 10.0 2 10 500 1100
6 in.
0.01 0.1 1 1 10 200 2000
8 in.
0.01 0.1 1 0.5 5 200 3500
