Badger Meter E-Series G2 User Manual

ESM-UM-02782-EN-12
Display Screens

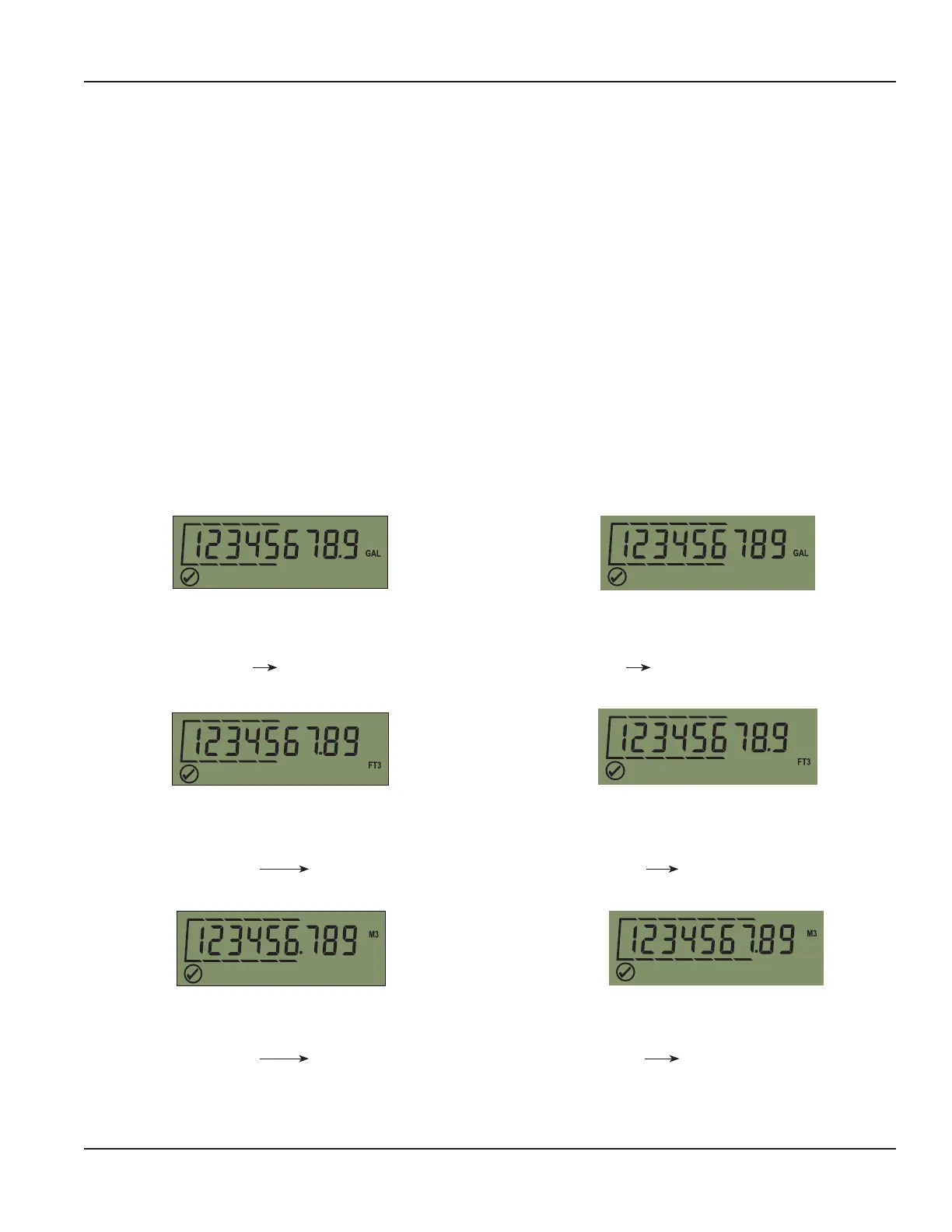

Total Consumption Screen
The total consumption screen shows all nine digits, including leading zeroes and a decimal point.
The displayed value is the sum of the forward flow minus the reverse flow. The display also includes indicator lines above and
below the digits to represent the typical utility meter reading (electronic equivalent of white and black number wheels on
mechanical registers).
Unit of measure and resolution are factory programmed for the meter. Options are gallons, cubic feet and cubic meters. For
manual reading purposes, the segmented lines above and below the numeric digits represent the visual billing units. The
number of segmented lines are factory programmed for typical billing units.
Billing unit dashed lines can be reprogrammed over display digits 1…7 using the Badger Meter Product Configuration Utility
software. For example, a register measuring gallons can have billing units down to the nearest 10 gallons.
3, 4 inch meters: Totalized flow displays up to 100 million gallons with a resolution of 0.1 gallons, 10 million cubic feet with a
resolution of 0.01 cubic feet, or one million cubic meters with a resolution of 0.001 cubic meter.
6, 8 inch meters: Totalized flow displays up to 1 billion gallons with a resolution of 1 gallon; 100 million cubic feet with a
resolution of 0.1 cubic feet; or 10 million cubic meters with a resolution of 0.01 cubic meter.
3, 4 inch 6, 8 inch
Gallons
Meter reading to the nearest?
10th gallon = 12345678.9 Meter reading to the nearest?
1 gallon = 12345678 1 gallon = 123456789
10 gallons = 1234567 10 gallons = 12345678
100 gallons = 123456 100 gallons = 1234567
Typical Billing Units 1000 gallons = 12345 Typical Billing Units 1000 gallons = 123456
Cubic Feet
Meter reading to the nearest?
100th ft
3
= 1234567.89 Meter reading to the nearest?
10th ft
3
= 1234567.8 10th ft
3
= 12345678.9
1 ft
3
= 1234567 1 ft
3
= 12345678
10 ft
3
= 123456 10 ft
3
= 1234567
Typical Billing Units 100 ft
3
= 12345 Typical Billing Units 100 ft
3
= 123456
Cubic Meters
Meter reading to the nearest?
1000th m
3
= 123456.789 Meter reading to the nearest?
100th m
3
= 123456.78 100th m
3
= 1234567.89
10th m
3
= 123456.7 10th m
3
= 1234567.8
Typical Billing Units 1 m
3
= 123456 Typical Billing Units 1 m
3
= 1234567
10 m
3
= 12345 10 m
3
= 123456
Operations
Page 9 December 2021
