Motorized Linear Actuator baelz 373-E45

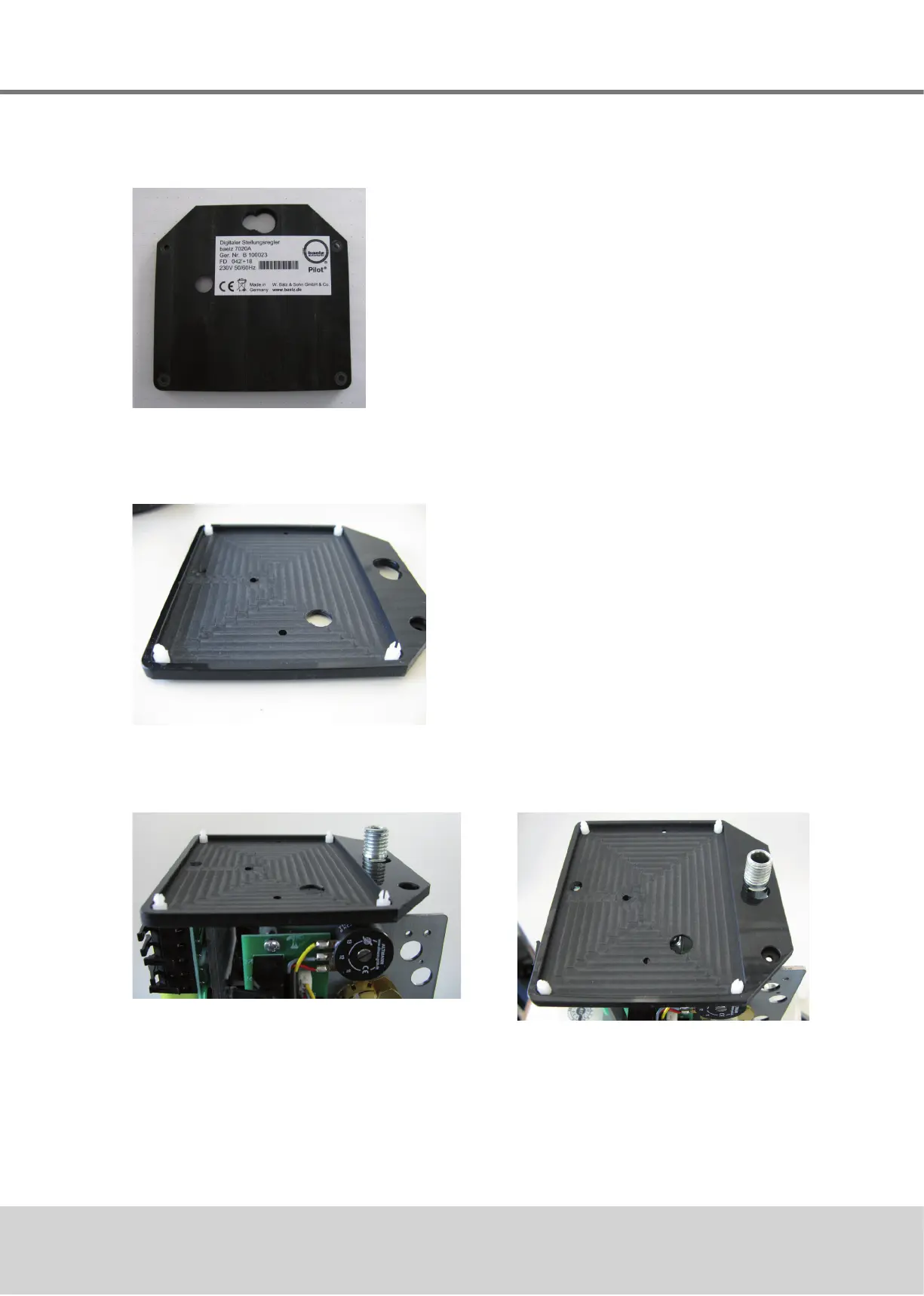

● Beforettingtheadaptorpanel,thenameplatemustbestucktotheunderside.Ifthe
digitalpositionerboardistreplaced,thisnameplatemustalsobechanged.
● Placethe4click-tspacerconnectorsontheadaptorpanel.
● Fittheadaptorpaneloverthethreadedendoftheextensionsothatitrestsonthe
bracket.
