Motorized Linear Actuator baelz 373-E45

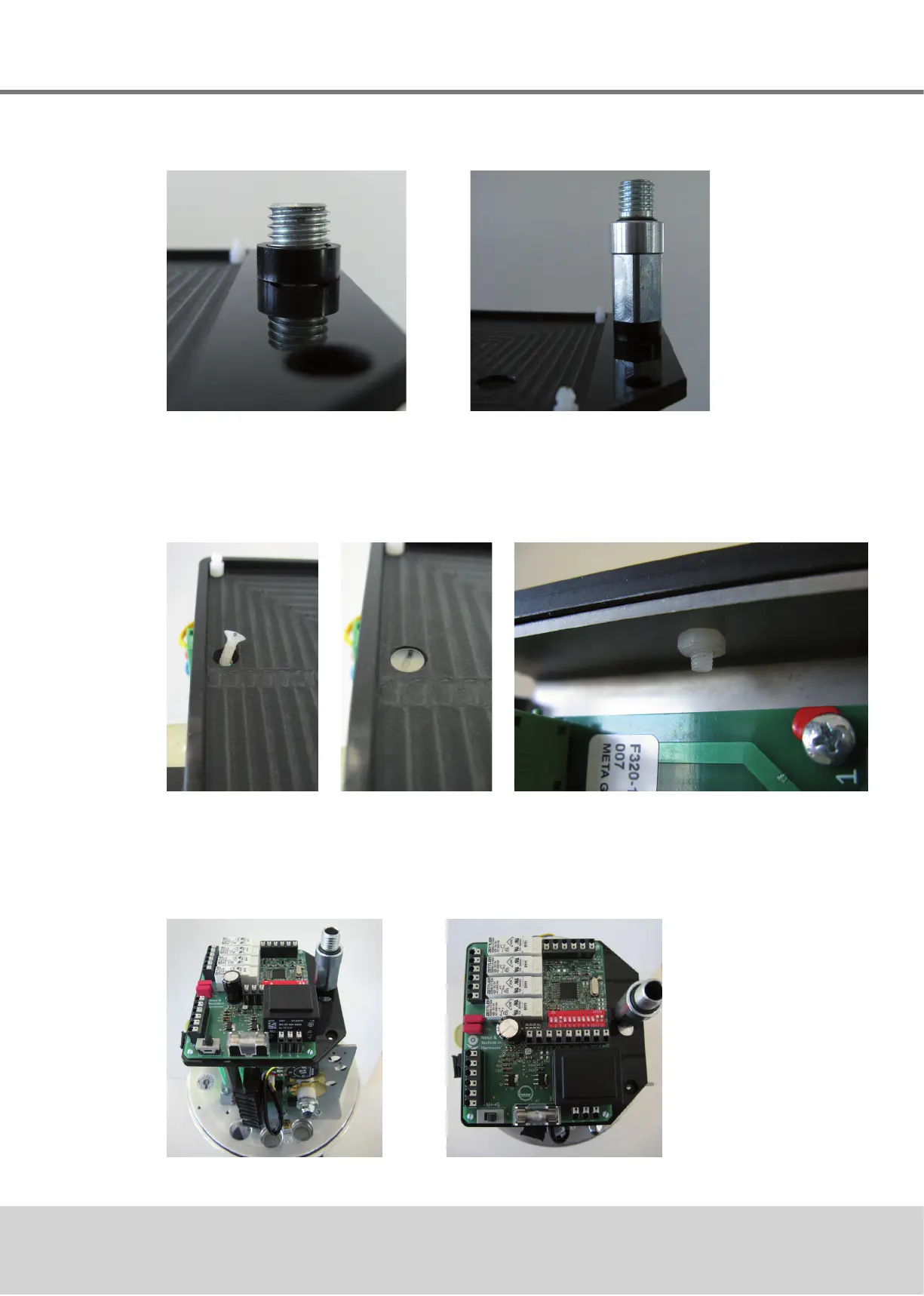

● Adjusttheadapterpanelonthebracketsothatthecountersunkholeandtheholein
thebracketarealigned.Inserttheplasticscrewsandtandtightenthenutsonthe
undersideofthebracket.
● Fitthespacersleeveontothethreadandscrewtheextensionon.
● Mountthedigitalpositionerboardontotheclick-tspacerconnectors.Thetransformer
shouldbeonthesamesideasthepotentiometer.
