Motorized Rotary Actuator baelz 375-E42
6.2 Retrotting of two additional travel switches (2EZ)
Disconnect actuator from power supply before starting work!
Danger
1. Remove the two allen screws [1] on the main switch board. Replace them with two
spacer bolts [3].
2. Clip the spacer [2] into the main switch board.
3. Cliptheadditionalswitchboard[4]ontothespacer[2]andxwiththeallenscrews[1].
4. Adjust the cams according to the instructions in section 5.2

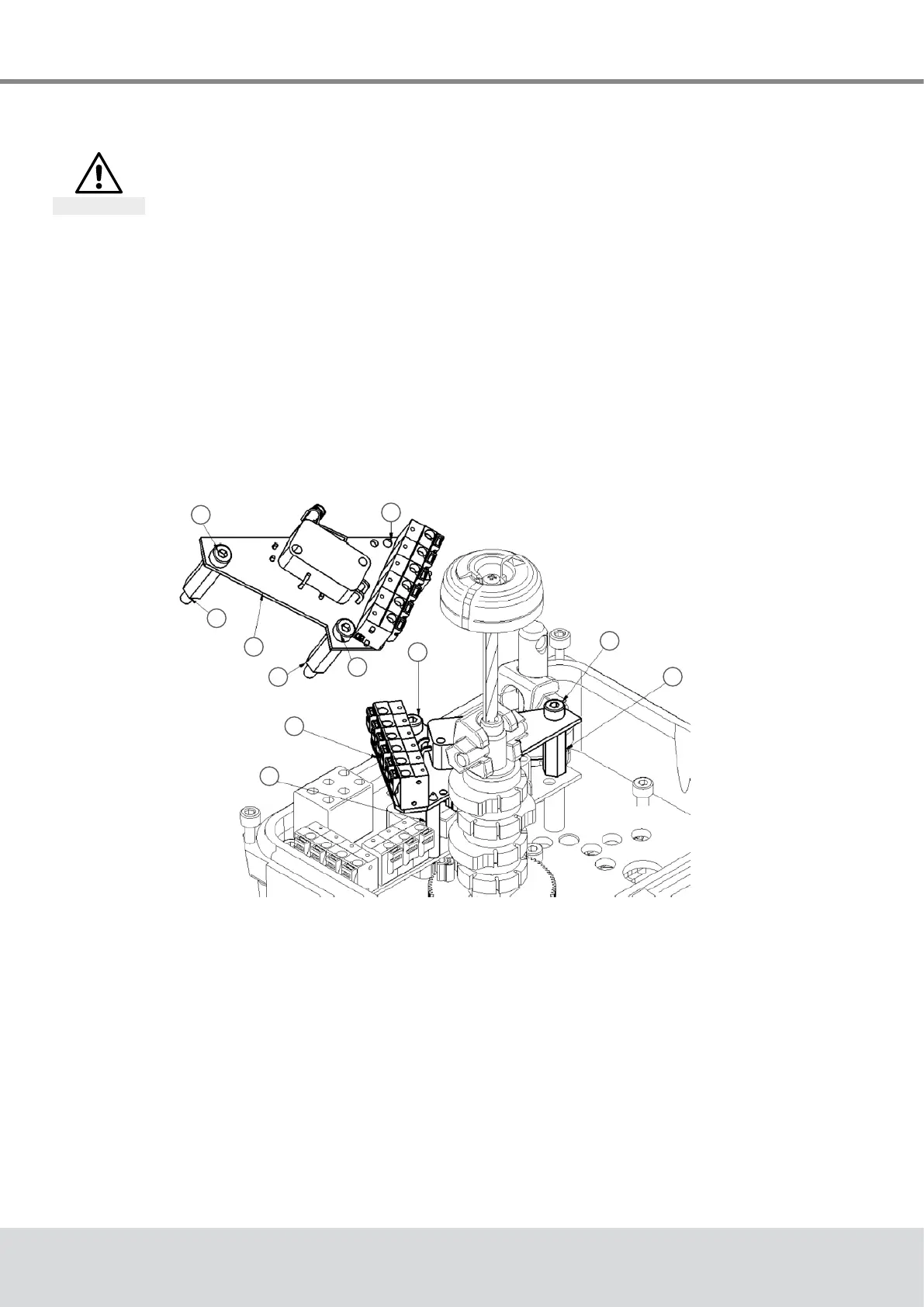

Fig. 6: Retrotting of two additional travel switches (2EZ)
