Motorized Rotary Actuator baelz 375-E42
7.4 Conguration of the DIP switches
= factory setting
The factory setting of the DIP switches is position 0, as shown.

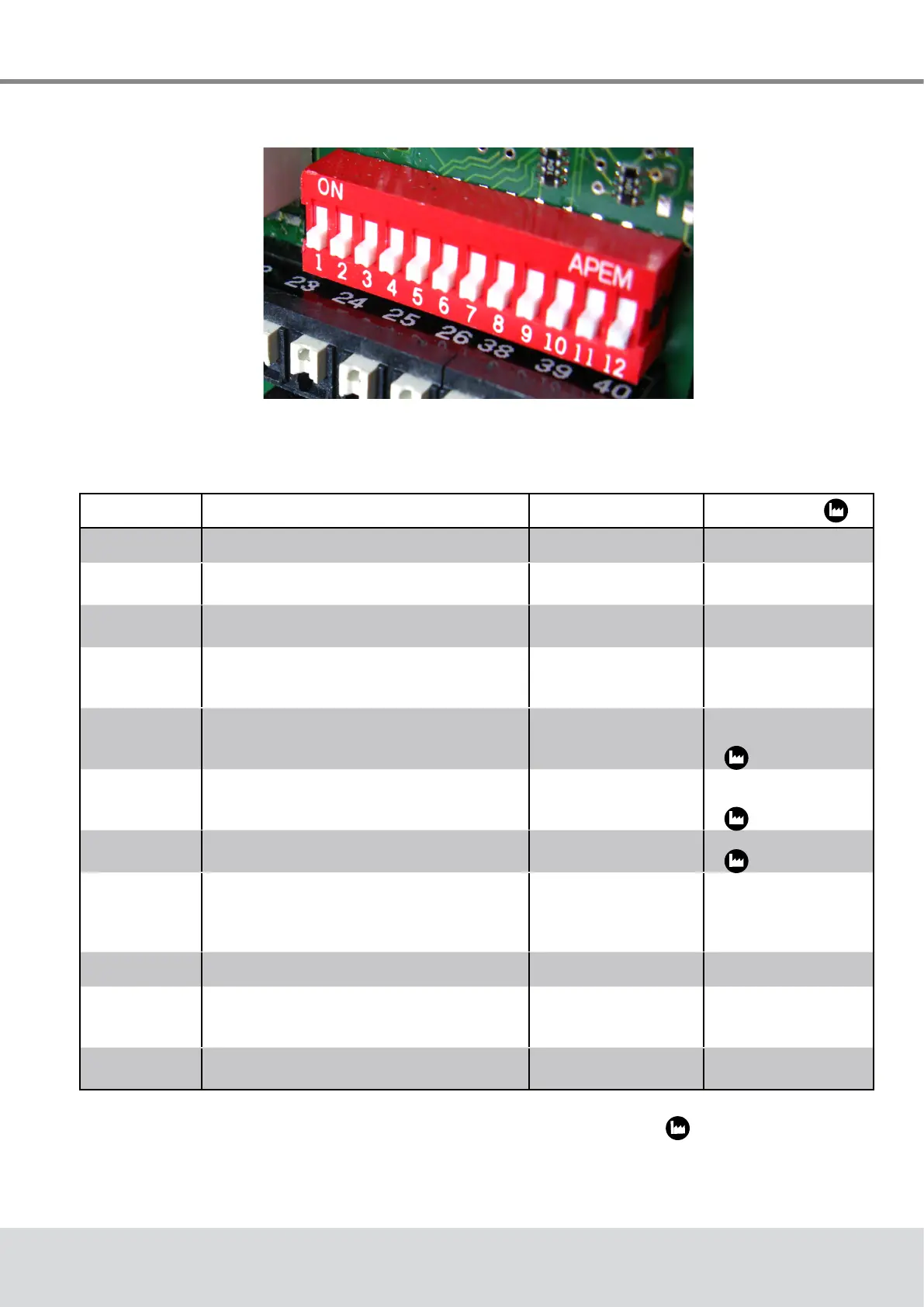

Fig. 11: Setting the DIP switches
Switch Function Position 1 "ON" Position 0
DIP 1
Set value input: voltage, V or current, mA? current, mA voltage, V
DIP 2
Set value input starting at 0 V / 0 mA or
2 V / 4 mA?
2-10 V / 4-20 mA 0-10 V / 0-20 mA
DIP 3
Analogue output starting at 0 V / 0mA or
2 V / 4 mA?
2-10 V and / or
4-20 mA
0-10 V and / or
0-20 mA
DIP 4
Direction of control action: does valve
close when actuator turns clockwise or
anticlockwise?(positionindicatorincover)
Actuator turns
clockwise→
valve closed
Actuator turns
anticlockwise→
valve closed
DIP 5
Current position of the actuator is saved as
additionalswitchingposition"2EZ-1".See
wiring diagram, page 20.
from0to1→
save"2EZ-1"
= 2%
DIP 6
Current position of the actuator is saved as
secondadditionalswitchingposition"2EZ-1".
See wiring diagram, page 20.
from0to1→
save"2EZ-2"
= 98%
DIP 7, 8, 9
These3DIPswitchesdenethefunction:
linear / split range / 11-point / inverted
s. , page 24
= linear
DIP 10
Denesvalvecharacteristicusingactuator
characteristic, see page 23.
Actuator characteristic
inverse equal
percentage, valve
action linear
Actuator characteristic
linear, valve action
equal percentage
DIP 11
Selects standard or Modbus mode. Modbus mode standard mode
DIP 12
Starts initialization run.
Set back to 0 after initialization
(s.section7.5.2)
from0to1→
starts initialization run
N↔S
Selects normal or safety mode position "S"
= safety mode
position "N"
= normal mode
