Motorized Rotary Actuator baelz 375-E42

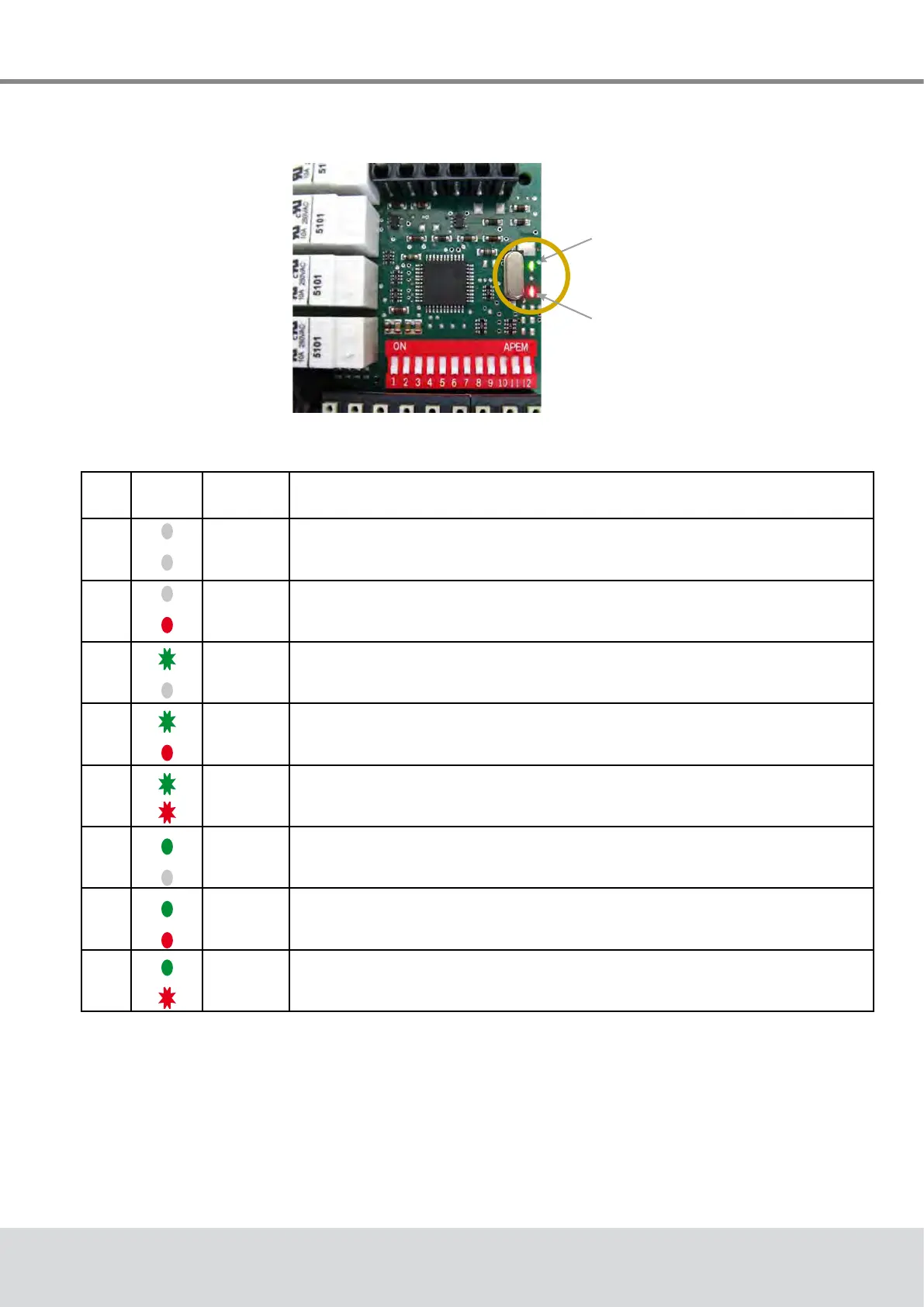

7.5.3 Meaning of LED signals
red LED
green LED
LED
signal
LED
signal
Meaning
1
green off
red off
Unit is switched off.
2
green off
red on
Initialization run in progress.
3
green
ashing
red off
Unitisnotinitialized.Potentiometerinidealpositionforinitializationrun(between7.5and
17.5%).
4
green
ashing
red on
Unit is not initialized. Potentiometer not in ideal position for initialization run.
Initialization still possible.
(IftheredLEDisickering,thepositionofthepotentiometerisattheedgeoftheoptimalrangeandthereforeOK.)
5
green
and red
ashing
Errorduringinitialization.Unitisnotinitialized.TheashingredLEDshowsthenumber
oftheerrorcode:3ashes,interval,3ashes,interval→errorcode3.Seealsosection
7.6.1.
6
green on
red off
Unit is initialized. No errors.
7
green on
red on
Immediately after the unit is switched on, both LEDs are lit for 2 seconds to show that they
are in working order.
8
green on
red
ashing
Unitisinitialized.DIP12setto1→errorafterinitializationrun,seesection7.6.1
DIP12setto0→errororalarmduringnormalpositioneroperation,seesection7.5.2.
