Motorized Rotary Actuator baelz 375-E42
7.6 Errors
7.6.1 Errors after an initialization run
Following a successful initialization run, only the green LED is lit.
IftheredLEDisashing,thisindicatesanerrorfollowinganunsuccessfulinitializationrun.
Thersterrortooccurduringinitializationisshown.IfthegreenLEDislit,theunithadalready
beeninitializedbeforethecurrentinitializationrun.IfthegreenLEDisashing,theunithadnot
been successfully initialized previously.

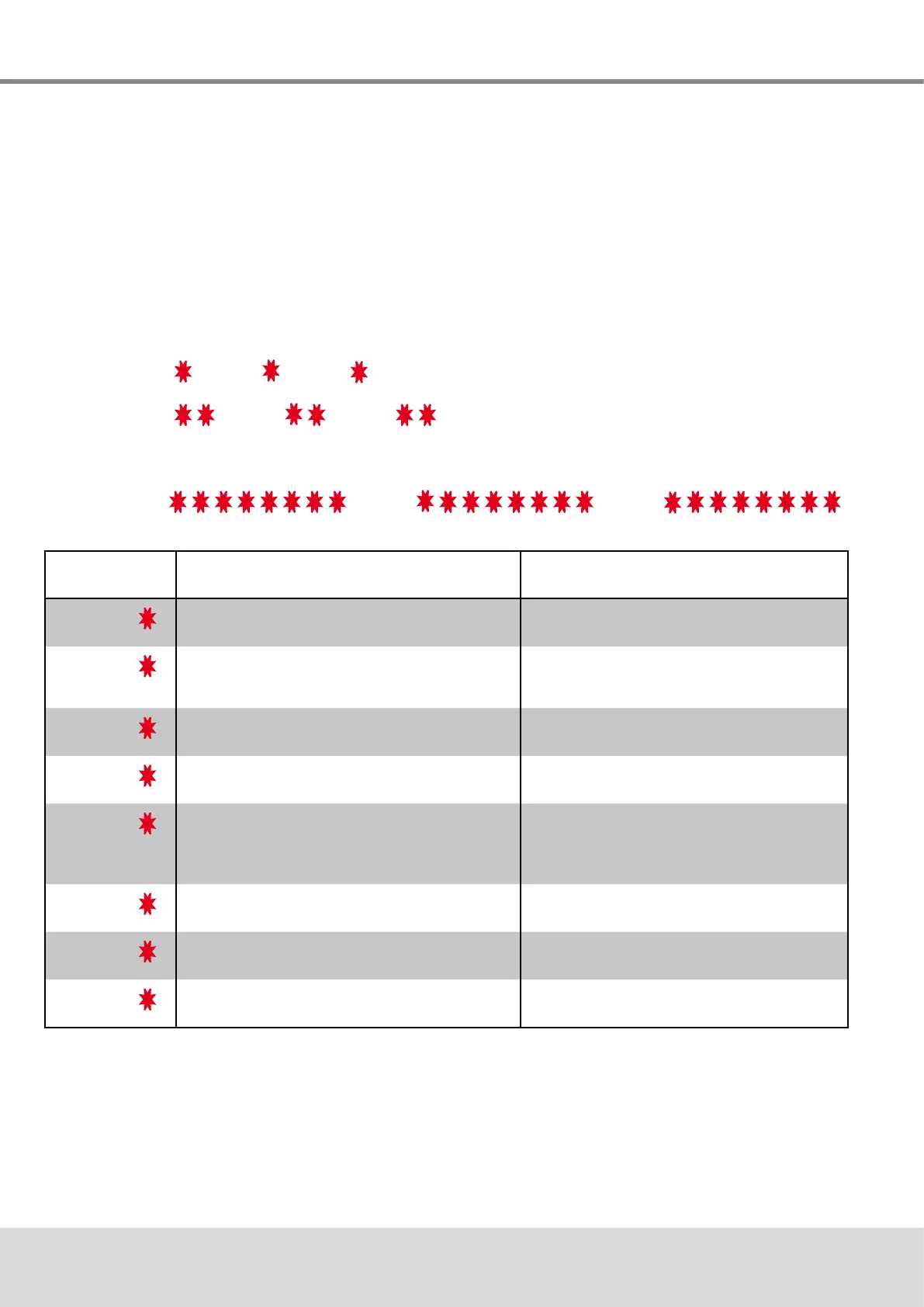

The red LED shows errors occuring during initialization as follows:
Error code 1: interval interval etc.
Error code 2: interval interval etc.
etc. up to ...
Error code 8: interval interval
etc..
Following an initialization run, the red LED shows only initialization errors as long as DIP switch
12 is set to 1. This enables a clear differentiation between errors occuring during initialization
and those occuring during normal positioner operation. Setting DIP switch 12 from 1 back to 0
permits the red LED to show any normal operational errors instead of initialization errors which
may have occured.
Error code Error Corrective action
1 → 1 x
Invalid status of initialization run. Possible
cause:EMI(electromagneticinterference).
Remove source of interference.
2 → 2 x
Sensor malfunction at analogue input AI1:
No signal from potentiometer.
Check connection terminals 91, 92, 93
(seewiringdiagram,Fig. 10, page 20).
Replace potentiometer if necessary.
3 → 3 x
Potentiometer value at AI1 too small.
Possible cause: EMI.
Remove source of interference.
Replace potentiometer if necessary.
4 → 4 x
Potentiometer value at AI1 too large.
Possible cause: EMI.
Remove source of interference.
Replace potentiometer if necessary.
5 → 5 x
Wrong direction of travel Checkmotor(97,98,99)andpotentiometer
(91,92,93)connections(seewiringdiagram,
Fig. 10, page 20).
Remove source of interference.
6 → 6 x
Obstruction: potentiometer or motor not moving. Checkconnections,setN↔Sswitchto"N",
remove any obstructions.
7 → 7 x
Actuator turns too far. Set a smaller angle of rotation for the
actuator(<110°).
8 → 8 x
Actuator doesn't turn far enough. Set a larger angle of rotation for the actuator
(>25°).
