Motorized Rotary Actuator baelz 375-E42
6.3 Fitting the 7020A digital postioner
Disconnect actuator from power supply before starting work!
Danger

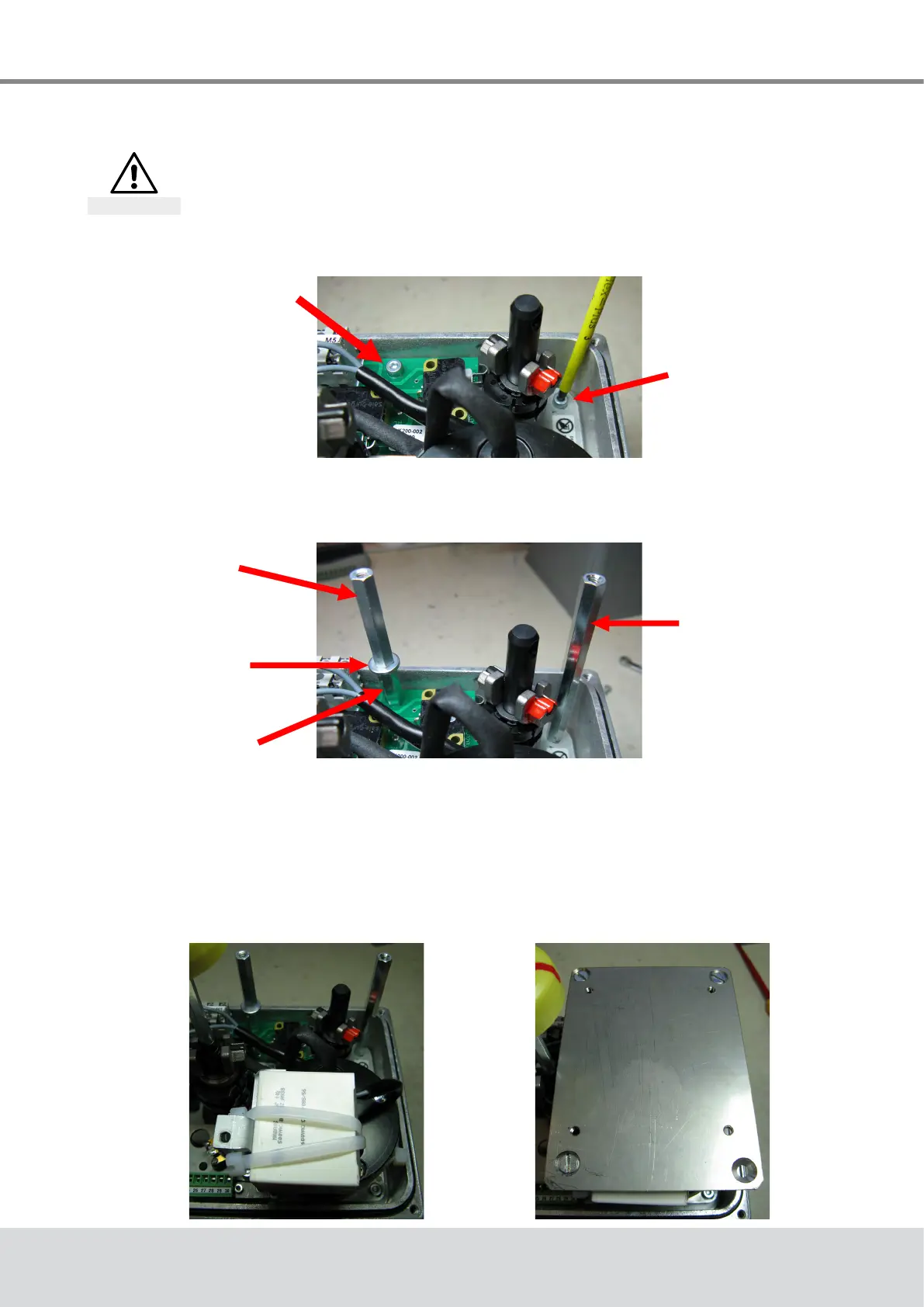

1. Remove the two screws indicated below.
2. Replace the screws with the spacer bolts
3. Placetheadaptorpanelontothespacerboltsandthecapacitorbracketandxwith
the metal countersunk screws. IMPORTANT NOTE: The holes in the adaptor panel are
notsymmetrical;theoutermostholeisatthetopleft(seeright-handphotobelow).The
bottom right-hand hole remains unused.
spacer bolt
M4 x 38 mm
washer 1.6mm
(onlywithout
additional travel
switches)
spacer bolt
M4 x 22 mm
(onlywithout
additional travel
switches)
spacer bolt
M4 x 85 mm
