Motorized Rotary Actuator baelz 375-E42

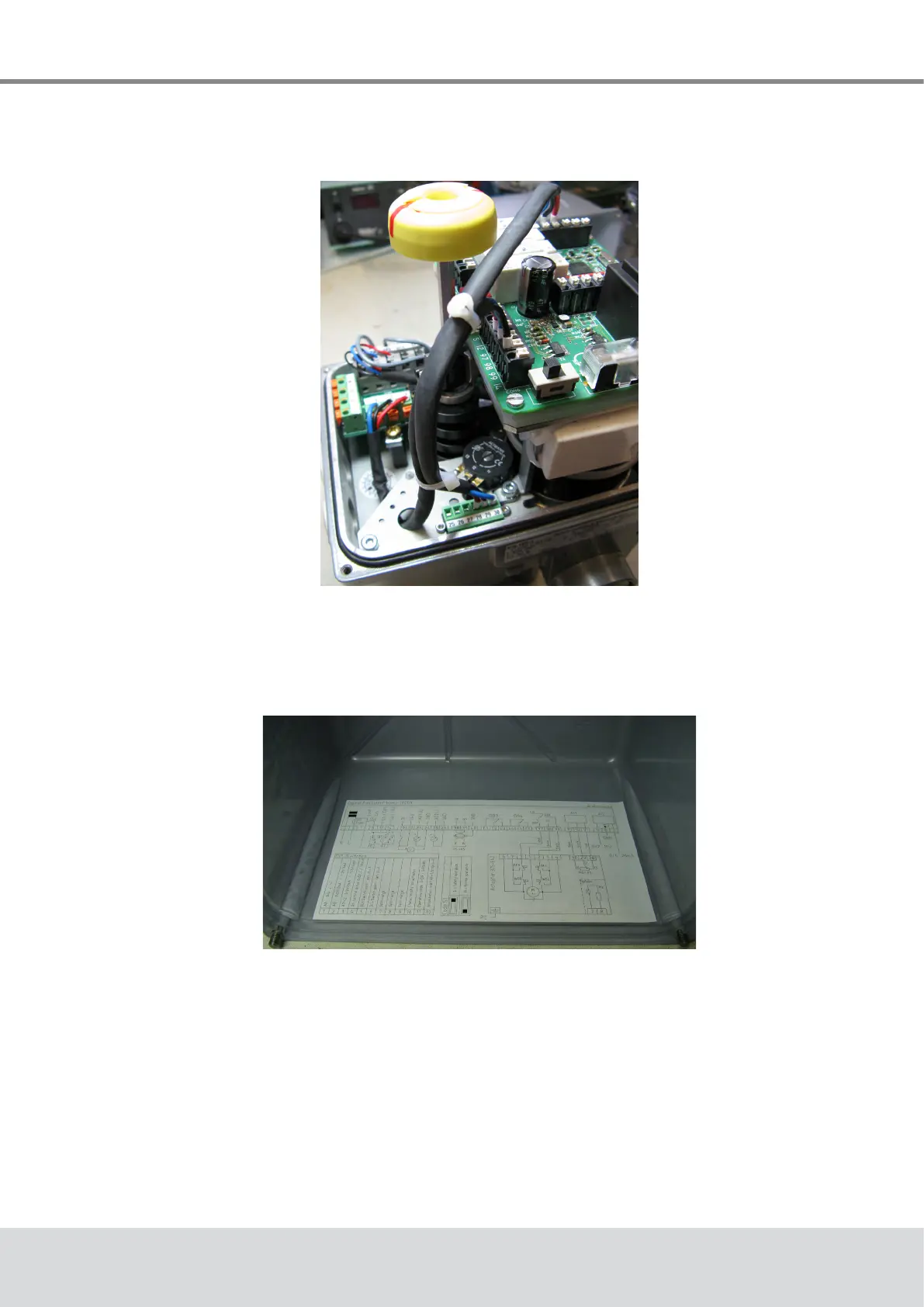

3. Wire up the circuit board and the actuator using the wiring provided and according to
the wiring diagram provided.
4. Afterttingthedigitalpositioner,stickthewiringdiagramontotheinsideoftheactuator
cover as shown.
