USER MANUAL – M625/M325 DRIVE SYSTEM
12

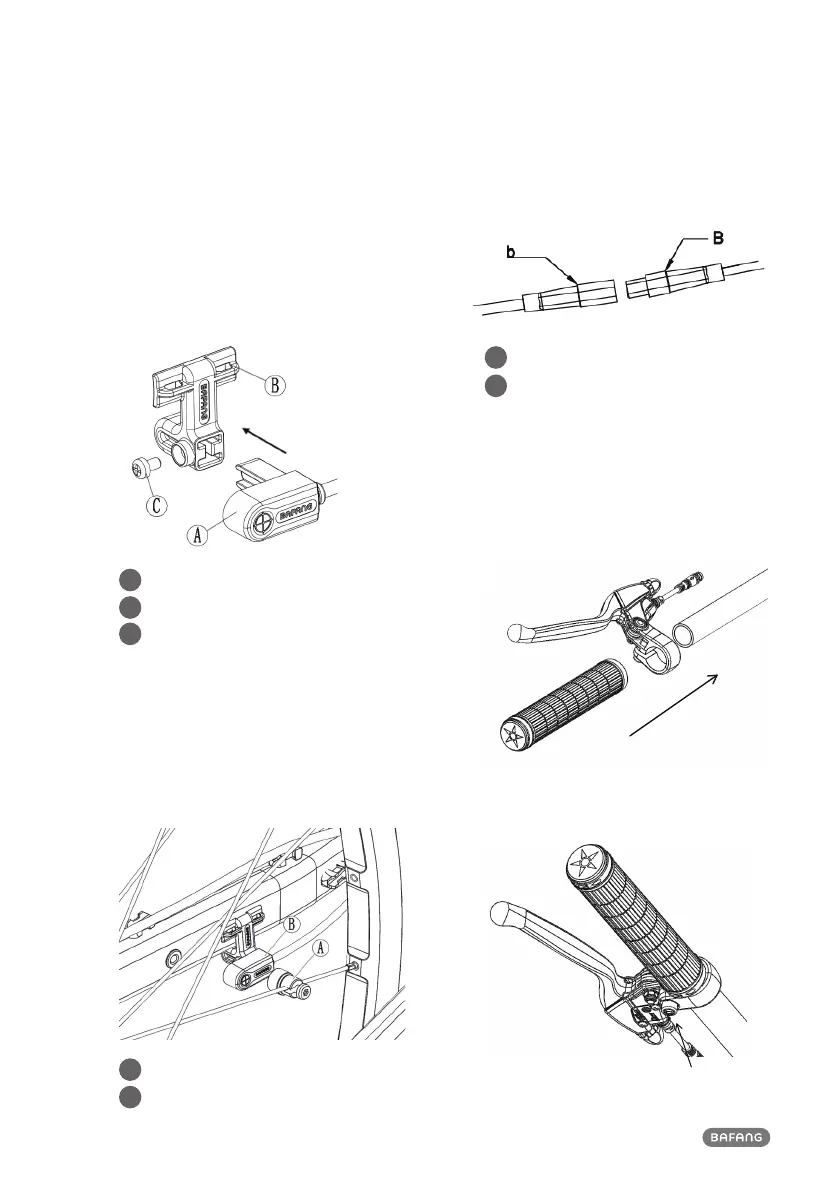

6.5 Speed Sensor
Installation
1. First insert the speed sensor (A) into the
support (B) and tighten the screw (C) with
a screwdriver.
Speed sensor
Support
Screw
A
B
C
2. First with cable ties fasten the speed sensor
onto the chain stay, and then tighten
mounting screw on magnet to the spokes
with cross screwdriver. Tightening torque
is 1.5–2Nm. Please make sure the gap
between the speed sensor and the magnet
is 5 mm.
Magnet
Speed Sensor
A
B
3. Connect the speed sensor to the drive unit.
Male connector from speed sensor
Female connector from the drive unit
B
b
6.6 E-Brake Lever and
Throttle Installation
1. Install the left e-brake lever and the grip on
the handlebar.
2. Now with M5 screw tighten the e-brake
lever into position.
