INSTALLATION
SETUP/PHYSICAL INSTALLATION
WBPEEUI240755B0 3 - 3

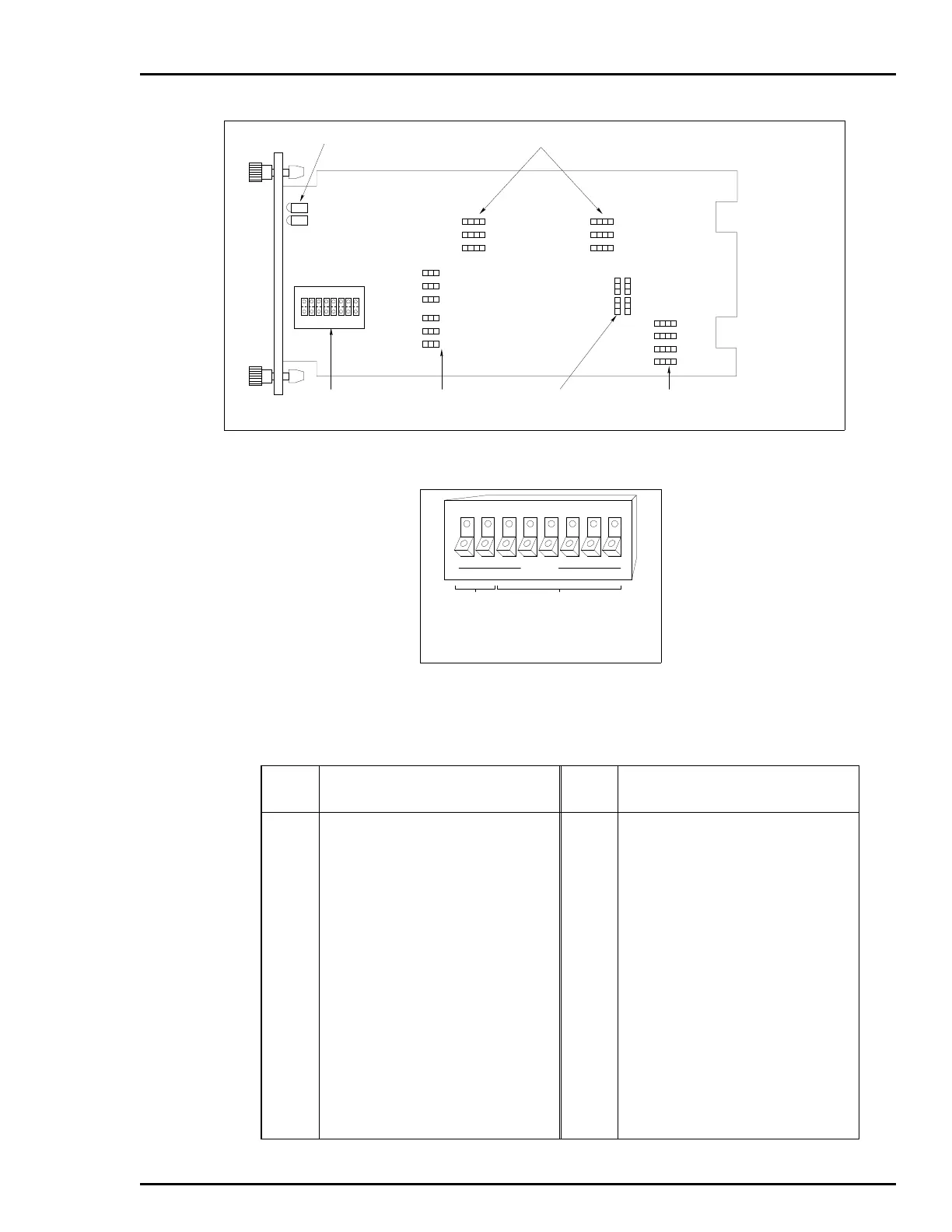

Figure 3-1. Switch and Jumper Locations
ANALOG OUTPUT
DEFAULT JUMPERS
ANALOG INPUT
MODE JUMPERS
ANALOG OUTPUT
MODE JUMPERS
ADDRESS
SWITCH
EDGE
CONNECTORS
P1
P3
P2
MODULE STATUS LEDS DIGITAL INPUT JUMPERS
S1
18
OPEN
T00086A
1
J1
J3
J5
1
1
1
J7
J9
J17
J15
J20
J12
J8
J11
J18
J14
J10
J13
J19
J16
1
J2
J4
J6
Figure 3-2. Address
Select Switch (S1)
1 2 3 4 5 86 7
OPEN
MUST
REMAIN
CLOSED
I/O
ADDRESS
MSB LSB
TP65205B
NOTE: OPEN POSITION = LOGIC 1
Table 3-1. S1 Address Switch Settings
ADDR
MSB LSB
ADDR
MSB LSB
3 45678 3 45678
0 0 00000 14 0 01110
1 0 00001 15 0 01111
2 0 00010 16 0 10000
3 0 00011 17 0 10001
4 0 00100 18 0 10010
5 0 00101 19 0 10011
6 0 00110 20 0 10100
7 0 00111 21 0 10101
8 0 01000 22 0 10110
9 0 01001 23 0 10111
10 0 01010 24 0 11000
11 0 01011 25 0 11001
12 0 01100 26 0 11010
13 0 01101 27 0 11011
