Setup 3-3MN1917
3.1.5 Starting WorkBench v5

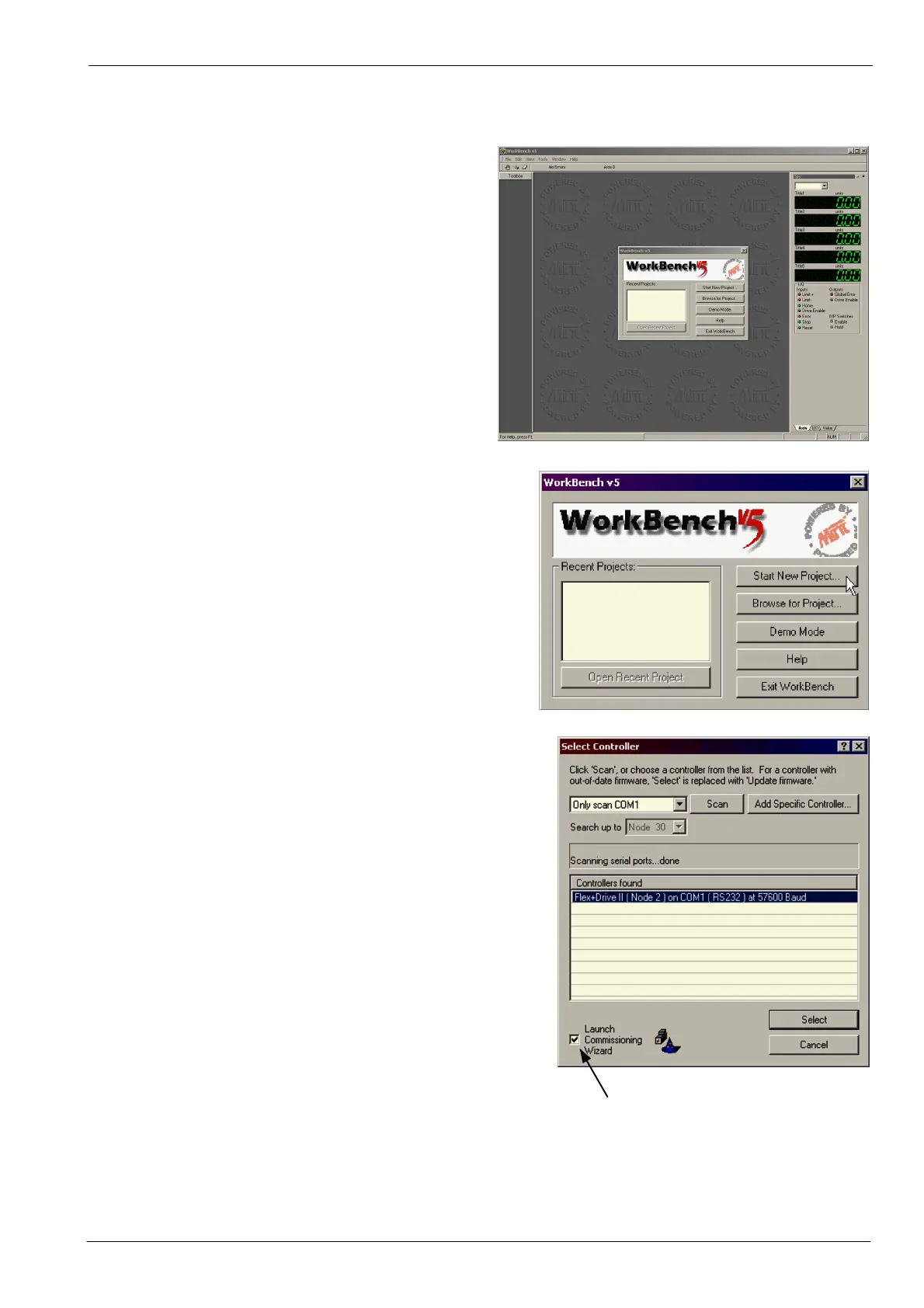

1. On the Windows Start menu, select
Programs, WorkBench v5, WorkBench v5.
WorkBench v5 will start, and the Tip of the
Day dialog will be displayed.
You can prevent the Tip of the Day dialog
appearing next time by removing the check
mark next to Show tips at startup.
Click Close to continue.
2. In the opening dialog box, click
Start New Project...
3. In the Select Controller dialog, go to the drop down box
near the top and select the PC serial port to which the
drive is connected.
(If you are unsure which PC serial port is connected to
the drive, select Scan all serial ports).
Click Scan to search for the Flex+Drive
II
.
When the search is complete, click on Flex+Drive
II
in
the list to select it.
Note: If the Flex+Drive
II
is not listed, check the serial
lead between the MintDrive
II
and the PC.
Check the demonstration unit is turned on.
Check that SW1 DIP switches 1 to 4 are all in
the Off position. In the Search up to box, select
Node 15. Click Scan to re-scan the ports.
4. If this is the first time that you have used the
demonstration unit, or you want to demonstrate the
commissioning process again, confirm that the
Launch Commissioning Wizard option is checked,
then click Select.
If the Flex+Drive
II
has been commissioned before, and you do not want to demonstrate commissioning again,
clear the Launch Commissioning Wizard option, click Select and go straight to section 4.
Ensure this option is checked if you want to see the
commis sioning process. When you click select, the
Commissioning Wizard will start automatically.
