A-2 Upgrade Kit MN1917
A.2.3 Removing the sid e panel, cont rol panel an d blanking plate
The control panel is the large yellow panel at the base of the demonstration unit containing the switches and
indicators. The blanking plate is screwed to the rear wall of the demonstration unit, and supports a rubber grommet
through which the cables pass into the demonstration unit.
Side panel
Control panel
Blanking plate
(covering
blanking plate
aperture)
Control
panel
aperture

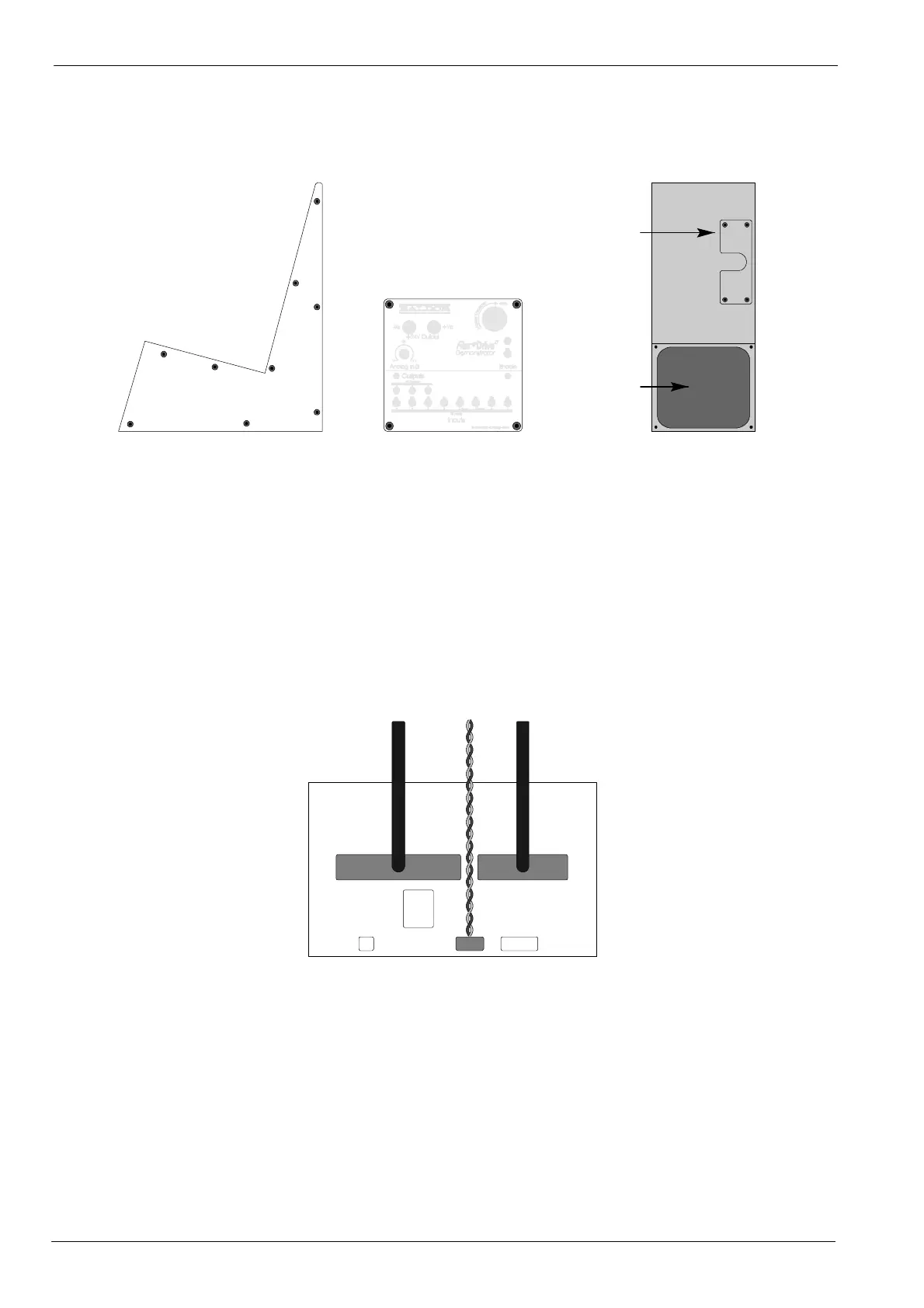

Figure 4 - Side panel, control panel and blanking plate
1. Using a 2.5mm (3/32in) Allen key (hexagonal socket wrench), remove the Allen bolts on the right side panel of
the demonstration unit. Remove the side panel.
2. Remove the four corner bolts on the control panel. Carefully withdraw the control panel.
3. Remove the four corner bolts on the blanking plate. Remove the blanking plate.
A.2.4 Removing th e cab les
A PCB will be seen mounted on the rear of the control panel.
D-type D-type
Power (black/red
twisted pair)
Figure 5 - PCB D-type and power connector positions
1. Disconnect the two D -type plugs, and remove the two cables from the demonstration unit.
A brown/blue/earth power cable group also emerges from the blanking plate aperture. Leave this cable group in
place, and retain the blanking plate’s rubber grommet.
2. A thin black/red twisted pair cable is connected near the edge of the PCB by a small two-pin plug (see Figure 5).
Disconnect the plug from the PCB, but do not remove the cable from the demonstration unit; it will be used to
provide power to the new control panel.
