4-4 Basic Demonstrations MN1917
4.3 Preset moves
The Flex+Drive
II
can store 16 preset moves. Presets can be selected and triggered using software (WorkBench v5
or a Mint program) or by using a combination of the digital inputs. In this demonstration the digital inputs will be used,
operated by the control panel switches.
1. In the Open dialog, select the file Presets.mnt, and click Open.
2. Click the Start button to run the program.
3. In the Toolbox, click Application then click the Presets icon.
In Presets mode, an interactive table allows you to setup preset moves, with
each preset shown on a separate row. WorkBench v5 reads the current
preset data from the Flex+Drive
II
whenever you switch to Presets mode.
Preset tables can also be saved in files on the PC and downloaded to the
Flex+Drive
II
from WorkBench v5.
For this demonstration, it will be necessary to download a preset table:
4. Click the Open icon just above the presets table.
5. In the Demonstration Units folder, carefully locate the correct subfolder
for your demonstration unit.
6. Select the file Presets.pre and click Open.
7. Click Apply to download the Presets table to the Flex+Drive
II
.

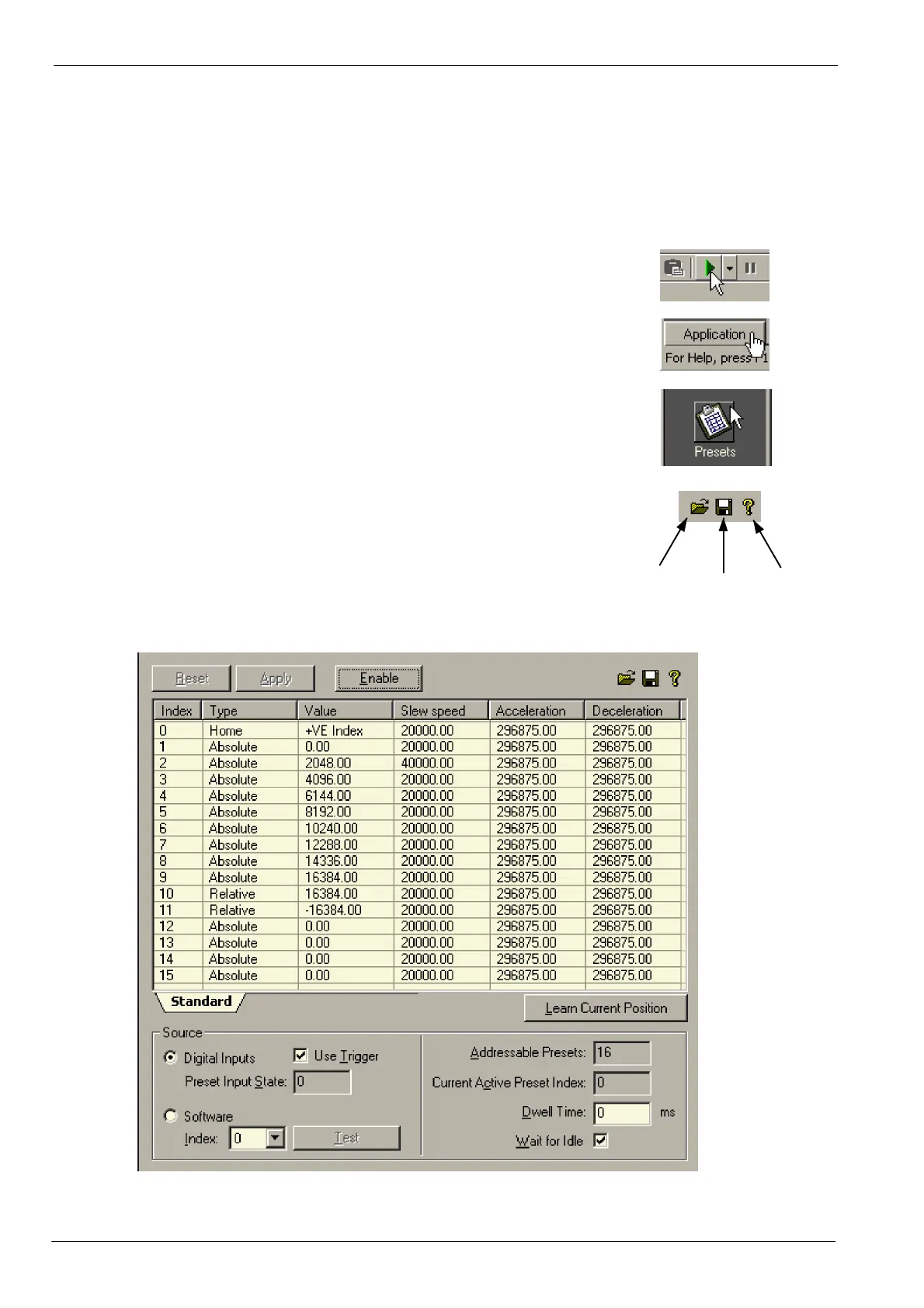

Figure 2 - The Presets table
Open Save Help
