Care2
Installation Instructions
24 Care2 issue 7
2.5 EXTERNAL CALL OUTPUT
The External Call Output is an Option that causes a pair of
contacts to operate after a delay if a call comes in but the door is
not opened.
The delay can be set from immediate to approximately 3 minutes.

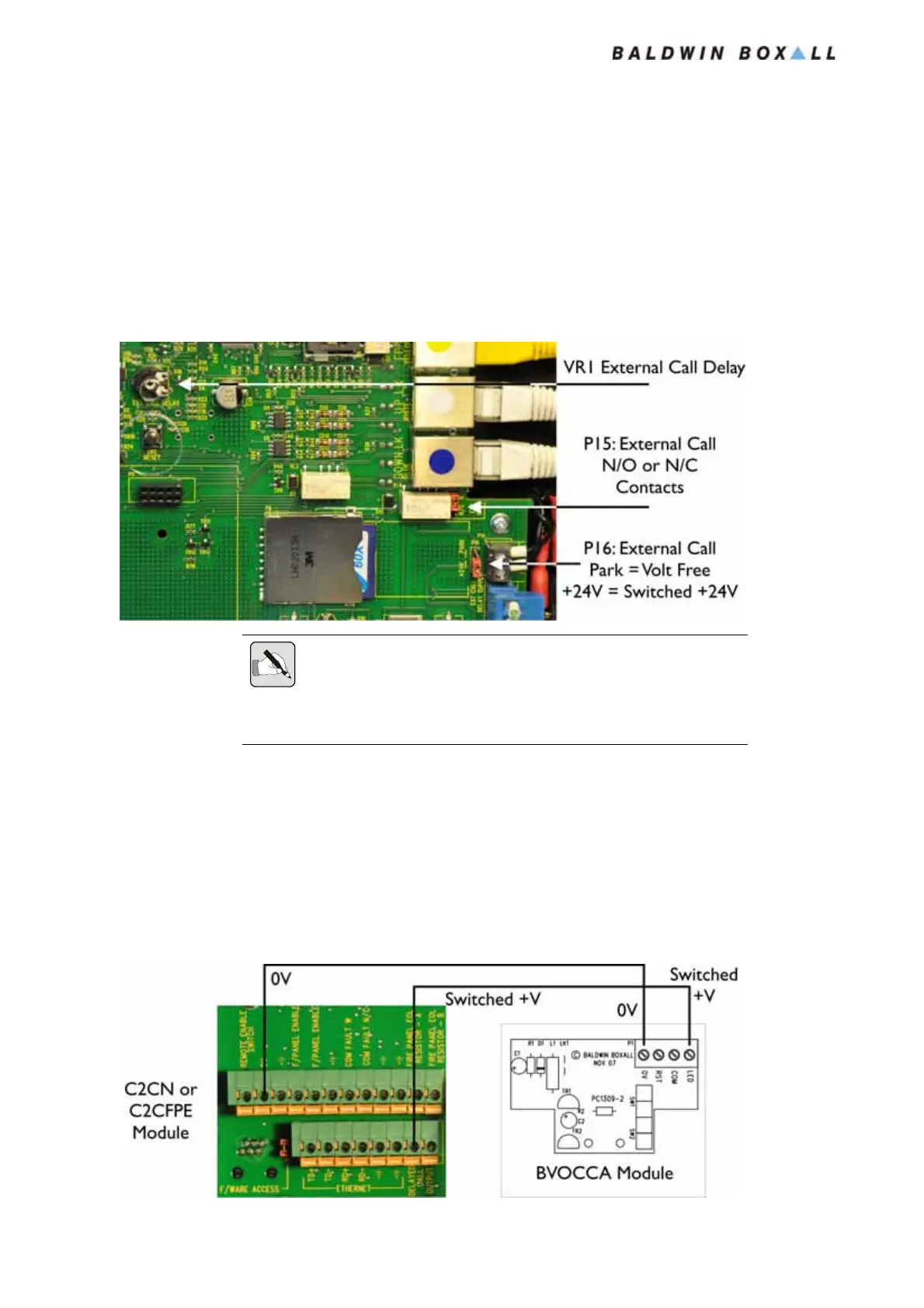

Figure 2.28 — Delayed Call Output settings
2.5.1 External Call Settings using BVOCCA
If a BVOCCA Call Alert Module is used, P15 must be set to
N/O and P16 set to +24V.
The connections to the C2CN and C2CFPE are shown below:
Figure 2.29 — BVOCCA Connection details
NOTE: The Console must be fitted with either a C2CN or C2CFPE to
access the External Call terminations.
The External Call output is available on the following Consoles:
C2CB4 - BN 27693 and later, C2CS4 - BN 27133-DCO and later.
