2.7 FIRE / STEWARDS TELEPHONES
2.7.1 Mounting Details

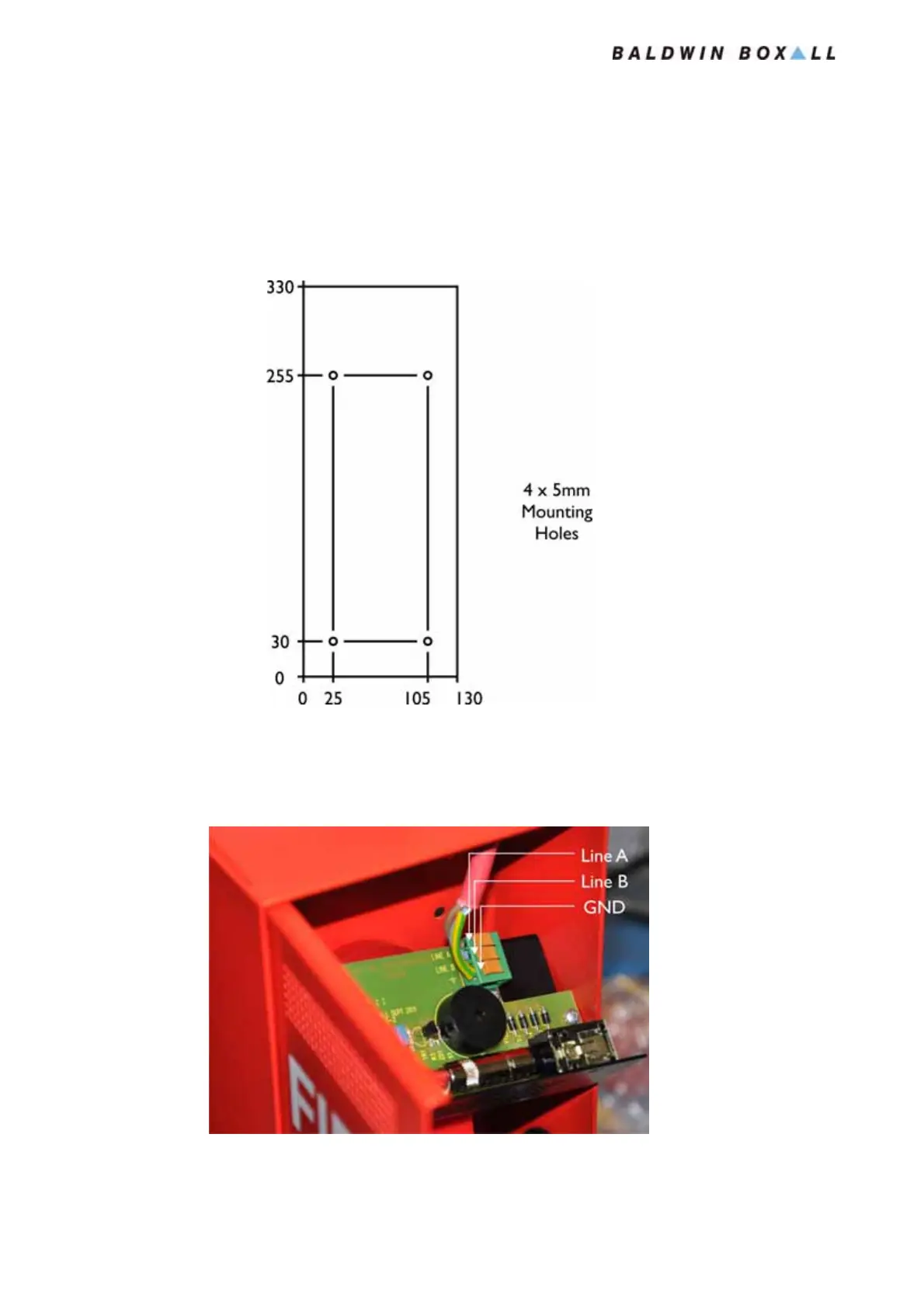

Figure 2.32 — Mounting Holes for Fire / Stewards Telephone
2.7.2 Connection Details
Figure 2.33 — Site Wiring Connections for Fire / Stewards Telephone
The termination blocks on the DRS unit are “Cage Clamp”
terminals to enable quick and secure connections.
