1.9.4.1.1 Electrical characteristics of signals
Input Voltage
Signal min nom max Unit
V_IN - 5 - V
I
VCC_IN
2 A
I per pin 0.5 A
Power Down
Signal Properties min nom max Unit
PCIe_PERST_N
Voltage level - 3.3 - V
V
IL
(low level input voltage) -
0.←-
5
- 0.8 V
V
IH
(high level input voltage) 2 - 3.8 V
WAKE_PCIe
Voltage level - 3.3 - V
V
IL
(low level input voltage) -
0.←-
5
- 0.8 V
V
IH
(high level input voltage) 1 - 3.8 V
Current WAKE_PCIe - - 4 mA
1.9.4.2 Power/IO connector (for OCuLink model)

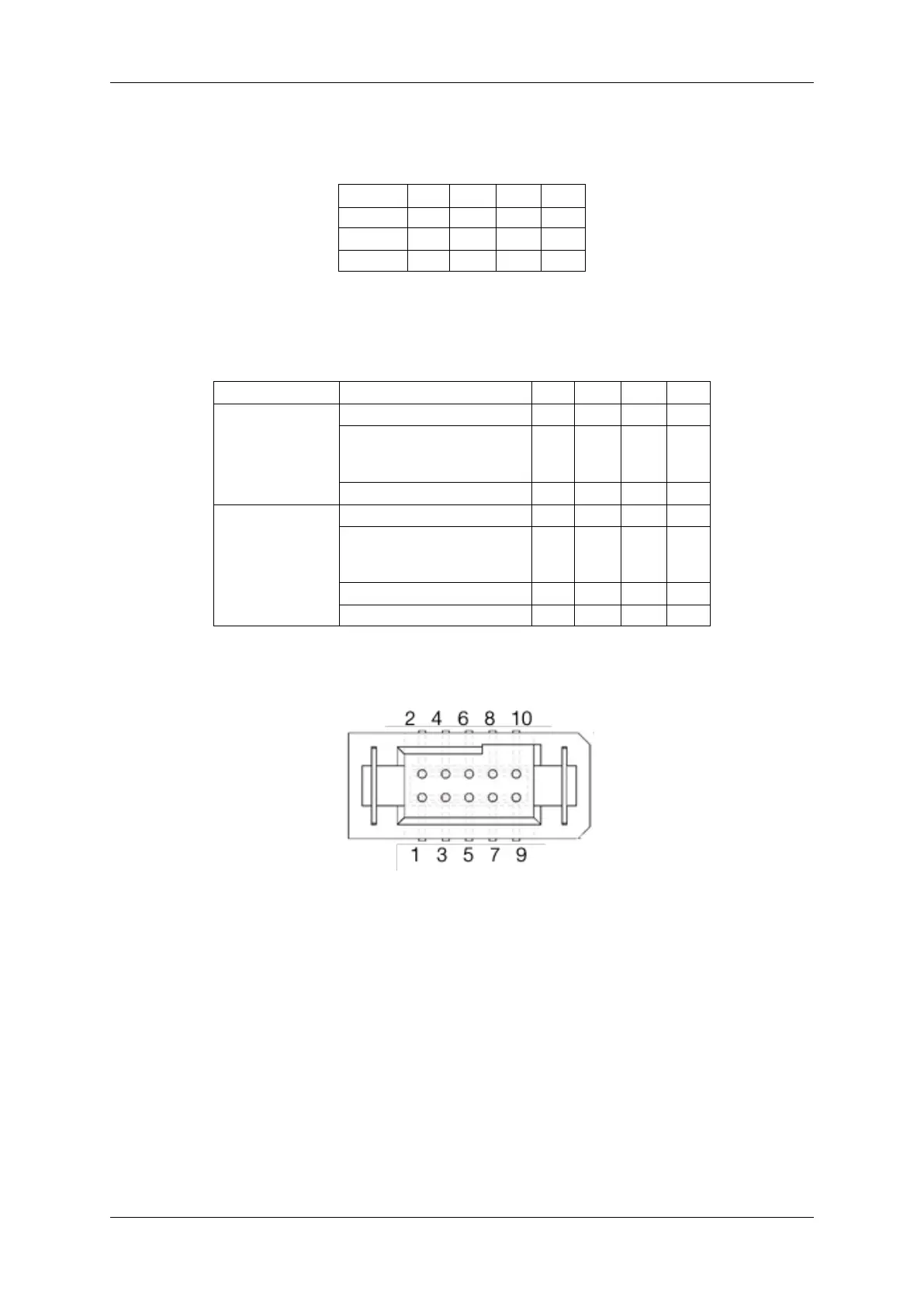

Figure 9: Power/IO connector (for OCuLink model)
"Camera connector"
• 10-Pin Samtec Connector
• Part type: TFM-105-02-L-D-WT
• 1.27 mm pitch Samtec Tiger Eye
"Matching cable"
• Alysium A65-3210 or KS-10TFM-OPEN LS 01.0 (p. 20)
• Samtec SFSD series or similar from other suppliers
