1.4.3 Remote operation
Several options are available for remote control and remote operation. The most convenient
solution may be selected on the basis of the requirements.
Operating
element
Methods Functions Connection
1 Key manual Ultrasound operation ON/OFF fi xed on the ultrasonic
transducer
2
Foot switch foot-operated Ultrasound operation ON/OFF Remote control socket
3 external control signal Ultrasound operation ON/OFF
Remote control socket
Remote control socket

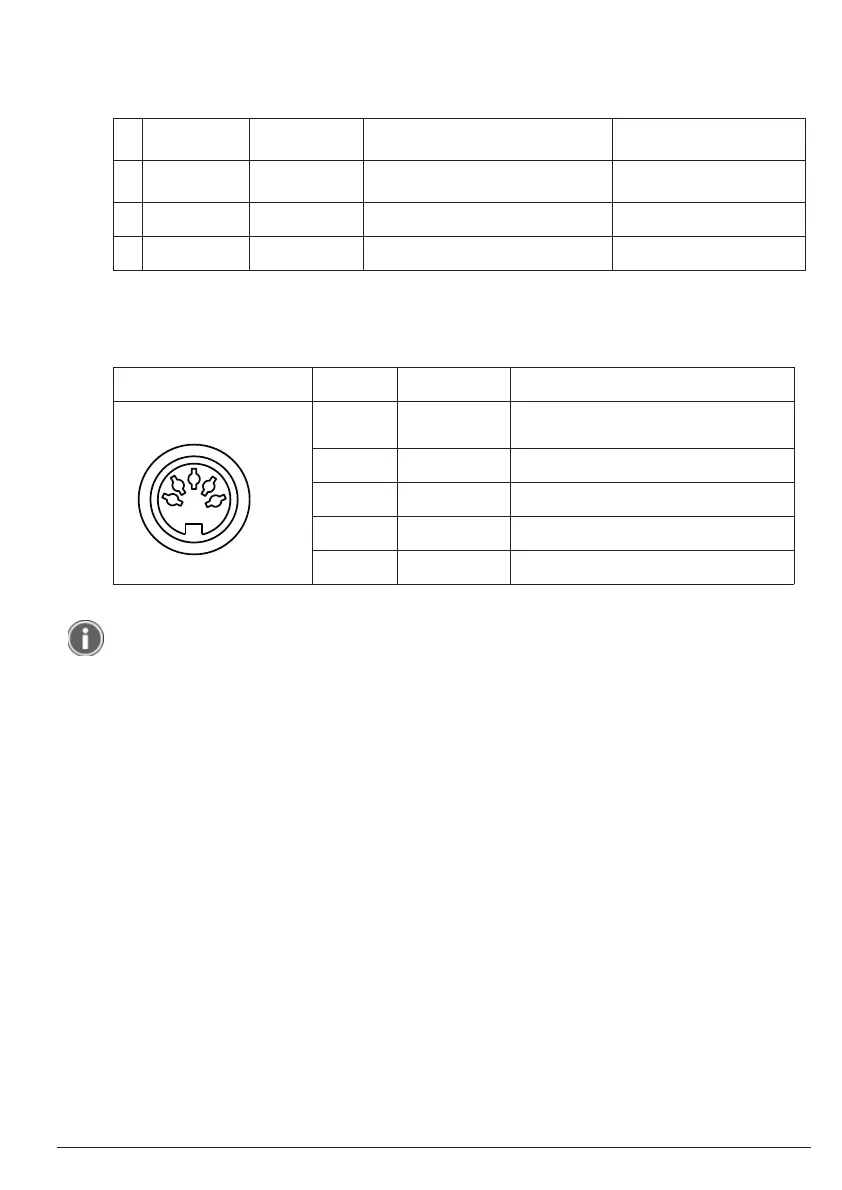

Contact assignment and functional description of the remote control socket
Diagram Contact Assignment Function
1
2
3
4
5
1 Input Ultrasound operation ON
Ultrasound operation OFF
2 n/a
3 Earth
4 n/a
5 n/a
Notes:
• The inputs and outputs may not be connected to other circuits, ground planes, or ground
terminals.
• The connection of power or voltage sources of any type is not permitted.
• When connecting a changeover contact (toggle function) to connector 1, the make time must be
> 100 ms.
1.4.4 Electromagnetic ambient conditions (EMC)
The device was tested to DIN EN 61326-1 for electromagnetic compatibility (EMC) and complies
with the requirements for class B devices according to EN 55011.
It is suitable for use in facilities and areas which are directly connected to a public low-voltage
supply network, e.g. medical laboratory facilities.
11 / 4451436a GB/2017-10
