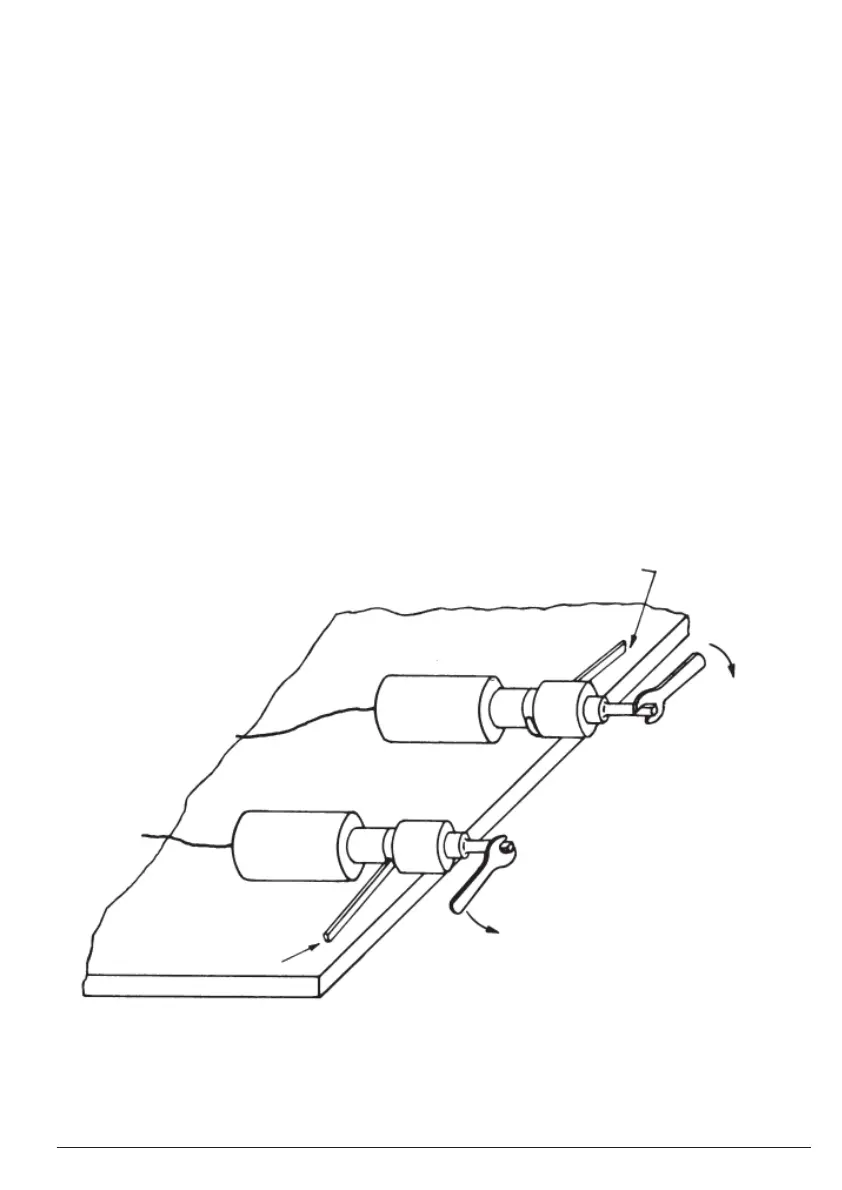

Sickle spanner HS 40/42 on
work plate.
Screw on
TT 13, TT 13 FZ, TT 19, TT 25
TT 13, TT 13 FZ, TT 19, TT 25
Sickle spanner on work
plate
Unscrew
4.3.1.1 Mounting and dismounting the titanium plates
• Titanium plate TT 13 /FZ, TT 19, TT 25
- In standard horn SH 70 G, the TT 13 is mounted onto HD 2070, and in booster horn
SH 213 G, it is mounted onto HD 2200.
- In fl ow-through standard horn FZ 5 G, the TT 13 FZ is mounted onto HD 2070, and in fl ow-
through booster horn FZ 7 G, it is mounted onto HD 2200.
- In booster horn SH 219 G, the TT 19 is mounted onto HD 2200.
- In booster horn SH 225 G, the TT 25 is mounted onto HD 2200.
First, carefully wipe the mounting surfaces of the standard and/or booster horns and of the
respective titanium plate ⇒ ensure clean mounting surfaces.
Screw on the titanium plate by hand.
Apply spanners - SW 10 for TT 13 and TT 13 FZ, SW 15 for TT 19, SW 22 for TT 25 - to the
spanner fi tting on the titanium plate.
Firmly hold the standard or booster horn using sickle spanner HS 40/42, and fi rmly mount the
titanium plate to the standard or booster horn.
Dismount in the opposite direction.
