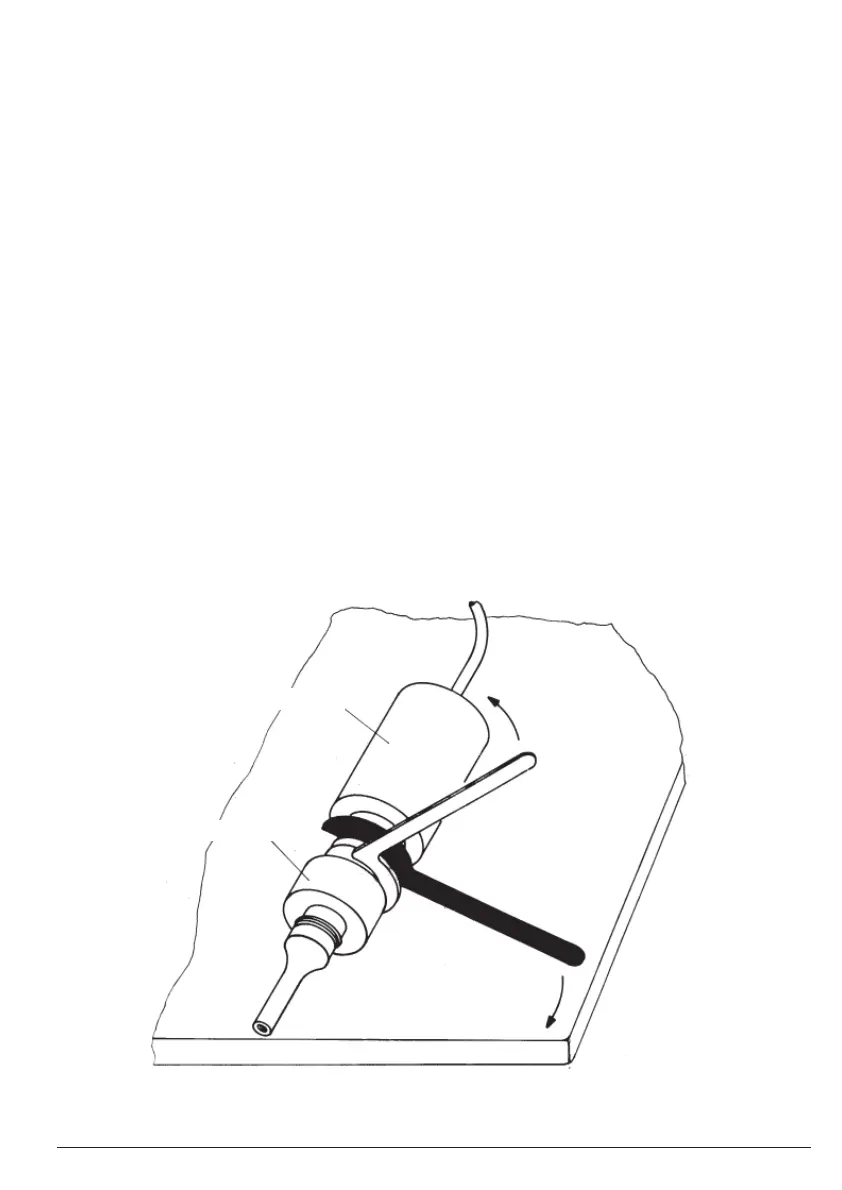

Dismounting
Ultrasonic transducer
Standard and/or booster horn
Vigorously turn sickle spanner
HS 40/42 long, or HS 45/50 long,
in the opposite direction
4.4 Mounting and dismounting of the standard and booster horns
Standard and/or booster horns
• are screwed onto the respective ultrasonic transducer,
• are made of high-strength titanium alloy,
• transmit the oscillations to the probe,
• enhance the amplitude thanks to their geometry.
At the time of delivery, standard horn SH 70 G and booster horn SH 213 G are fi rmly mounted
onto the HD 2070 and HD 2200, respectively, on the ultrasonic transducer.
Before mounting the standard or booster horn, the HF generator must be turned off and the
ultrasonic transducer must be disconnected from the HF generator.
Release the fi rmly-mounted standard and/or booster horns SH 70 G or SH 213 G from
the ultrasonic transducer UW 2070 or UW 2200, respectively. To do so, lay the ultrasonic
transducer on a fi rm base (non-slip, if possible).
Dismounting
Place one sickle spanner on the ultrasonic transducer and the other sickle spanner on the
standard or booster horn. To dismount, press the fi rst sickle spanner against the fi rm base,
press the other sickle spanner fi rmly in the opposite direction.
One sickle spanner is part of the scope of delivery of one standard or booster horn.
25 / 4451436a GB/2017-10
