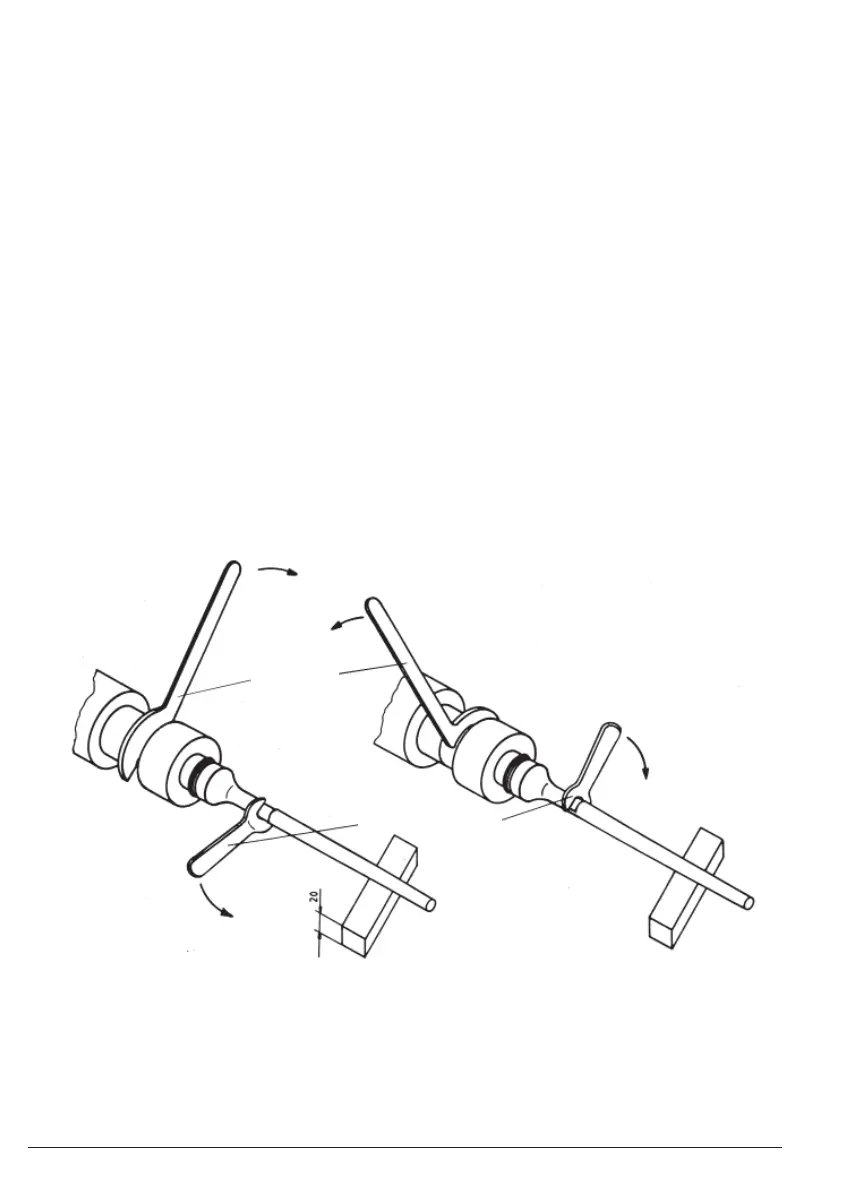

Dismounting
Assembly
Sickle spanner
HS 40/42 or
HS 45/50
Spanner
here: Spanner SW 10
4.3.1.2 Mounting and dismounting of micro and tapered tips and long
probes
• Micro and tapered tips (MS 72, MS 73, KE 76) and long probes (VS 70 /T, VS 200 /T)
- On HD 2070, the MS 72, MS 73 and KE 76 are mounted onto standard horn SH 70 G.
- On HD 2200, the MS 72, MS 73, KE 76, VS 70 /T are mounted onto booster horn
SH 213 G.
- On HD 2200, VS 190 T is mounted onto booster horn SH 219 G.
- On HD 2200, VS 200 /T is mounted onto booster horn SH 225 G.
First, carefully wipe the mounting surfaces of the standard and/or booster horns and of the
probe ⇒ ensure clean mounting surfaces.
Screw on the probe by hand.
Lay the probe on an approx. 20 mm thick base so that it does not bend.
Firmly hold the standard or booster horn in place using sickle spanner HS 40/42, and tighten
the probe using the appropriate spanner, see illustration.
Dismount is conducted in the opposite direction.
