GM 2070 and GM 2200
10
12
11
GM 2070-U and GM 2200-U
10a
10b
12
11
1 Product description

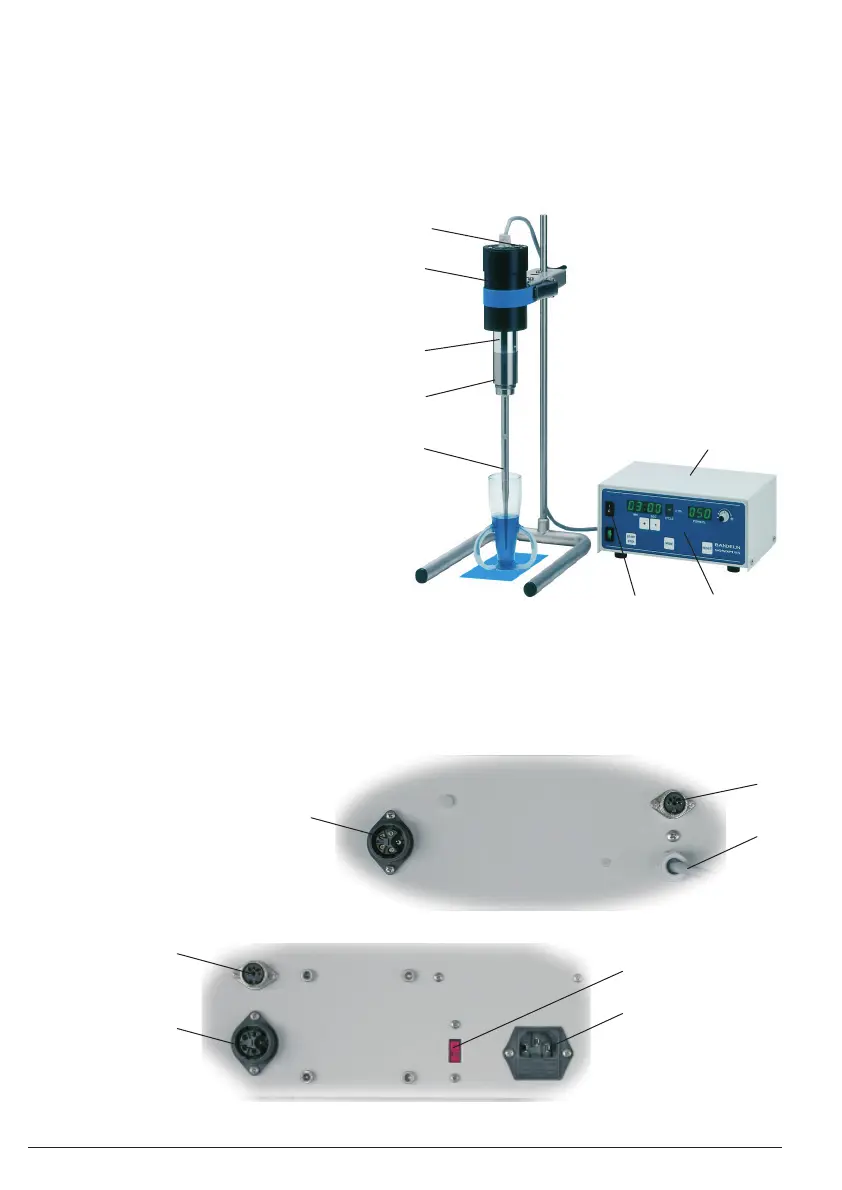

The SONOPULS ultrasonic homogeniser is essentially made up of three components: the HF
generator, the ultrasonic transducer, and the working tip (probe). The individual components can
be varied using a multitude of options and accessories. The type specifi cation and serial number
are found on the type plate.
Product features:
• HF generator (1) in low-maintenance, robust plastic housing, with connections for the ultrasonic
transducer.
• Operating and display panel (2)
• Ultrasonic transducer (3) with Start/Stop
key (3a)
• Ultrasonic oscillating system (4)
• Booster horn (5)
• Probe (6)
• Mains switch (7)
Product features on the rear side of the HF generator:
• Depending on type, with mains cable (10) or mains socket (10a) with fuse holder and, if needed,
with a switch (10b) for voltage selection.
• HF socket (11)
• Remote control socket(12)
