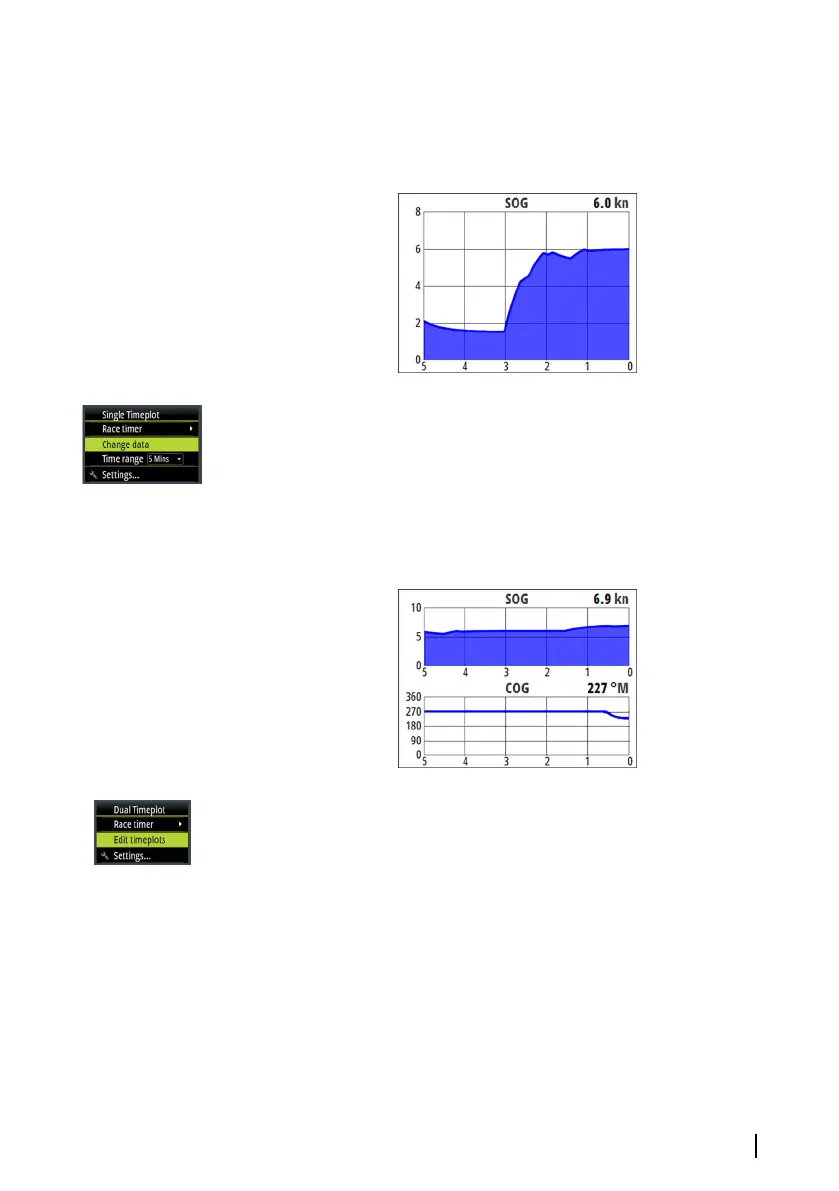

Single time plot
Easy visualization showing current and historical data plotted over a
specified time scale.
You can change data and time period from the menu.
The time period can also be adjusted by using the arrow keys.
Dual time plot
Easy visualization showing current and historical data plotted over a
specified time scale.
You can change data and time period for each of the time plots
from the menu.
Configuring data pages
Replacing a page
Any enabled page can be replaced with one of the other
predefined pages, or by a template page if you want to create a
custom page.
Pages | Triton2 Operator manual
25

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the B&G Triton2 and is the answer not in the manual?

B&G Triton2 Specifications

General IconGeneral
Resolution320 x 240 pixels
InterfaceNMEA 2000
Power Supply12V DC
Waterproof RatingIPX7
BacklightLED
Display Size4.1 inches
Operating Voltage9 to 16V DC
