NAC-2/NAC-3: Course chg confirm angle, refer to "Steering (NAC-2/
NAC-3)" on page 51
AC12N/42N and SG05: Navigation change limit, refer to
"Automatic steering (AC12N/AC42N)" on page 55
Using the autopilot in an EVC system
When the Triton
2
is connected to an EVC system via the SG05, you
can take manual control of the steering regardless of the autopilot
mode.

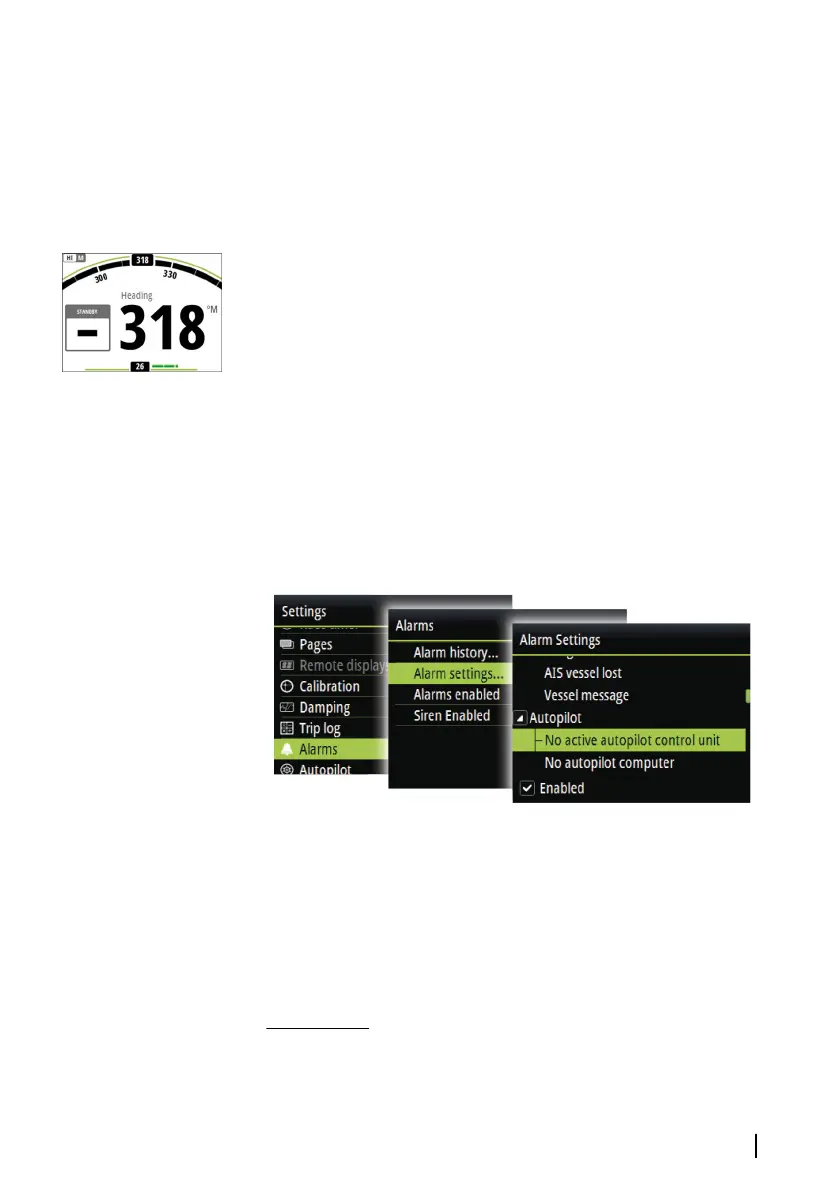

The mode indicator is replaced by a dash to indicate EVC override.
The system returns to Triton
2
control in Standby mode if no rudder
command is given from the EVC system within a predefined period.
Autopilot alarms
You can define several alarms to alert you if the autopilot system or
autopilot sensors are failing.
The alarms are activated from the Alarm Settings dialog.
For more information about alarms, refer to "Alarms" on page 57.
Autopilot settings
The autopilot settings can be split between settings done by the
user, and settings done during installation and commissioning of
the autopilot system.
User settings can be changed for various operational conditions
or user preferences
Autopilot | Triton2 Operator manual
47
