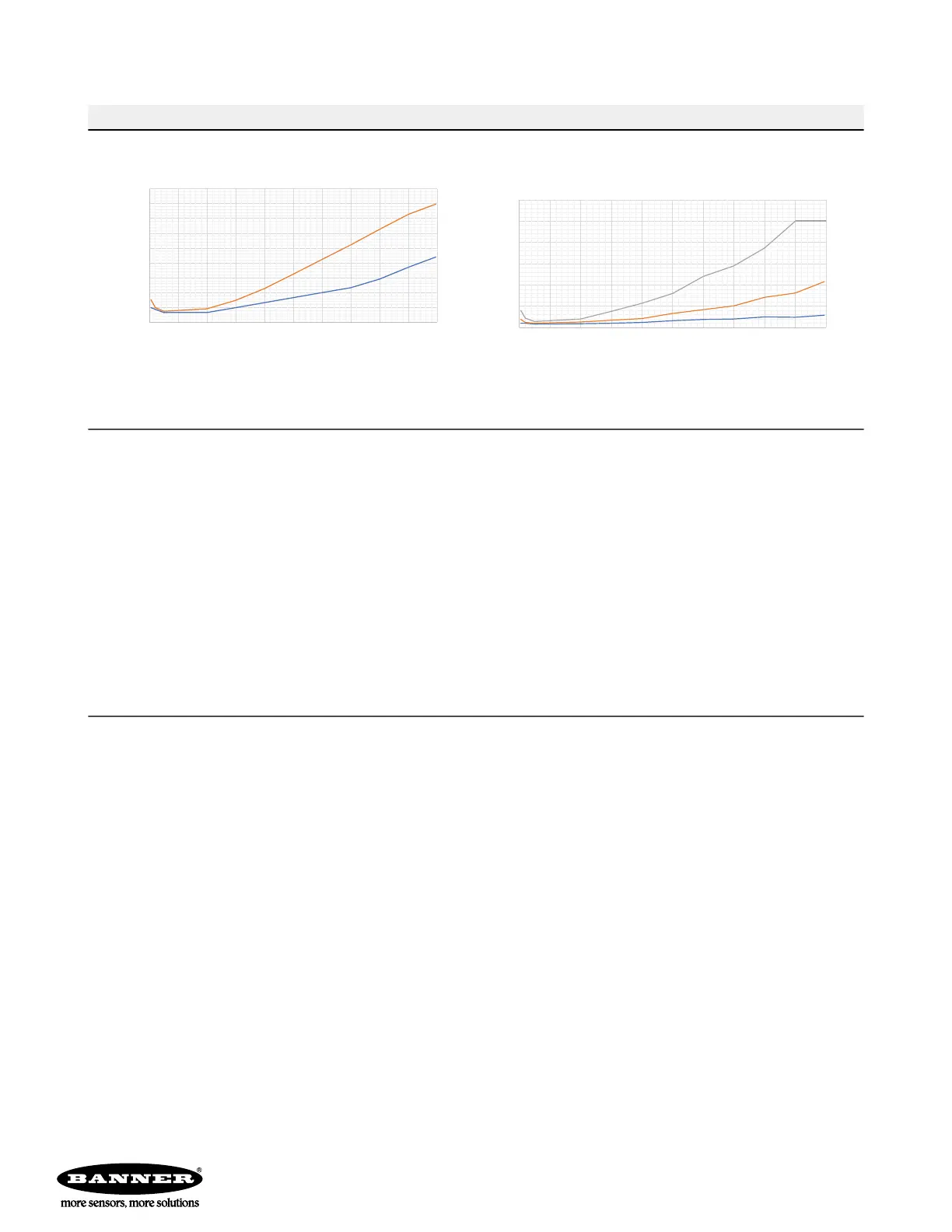

Table 6: Typical performance curves for the 10000 mm models
Minimum Object Separation Repeatability
Figure 25. Minimum Object Separation for 50 ms Response Time
Minimum Object Separation (50 ms)
Distance to Target (mm)
(Dimension X)
Target to Background (mm)
(Dimension Y)
90% white/90% white
6% black/90% white
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10 000
0
20
40
60
80
100
120
140
180
160
Figure 26. Repeatability for 50 ms Response Time
Repeatability (50ms)
90% White
18% Gray
6% Black
Distance to Target (mm)
(Dimension X)
1σ Repeatability in mm
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10 000
0
5
10
15
20
25
30
Dual Mode Reference Surface Considerations
Optimize reliable detection by applying these principles when selecting your reference surface, positioning your sensor relative to the
reference surface, and presenting your target.
The robust detection capabilities of the Q5X allows successful detection even under non-ideal conditions in many cases. Typical
reference surfaces are metal machine frames, conveyor side rails, or mounted plastic targets. Contact Banner Engineering if you
require assistance setting up a stable reference surface in your application.
For detailed instructions for detecting clear or transparent objects, refer to the Instruction Manual, p/n 208794.
1. Select a reference surface with these characteristics where possible:
Matte or diffuse surface finish
Fixed surface with no vibration
Dry surface with no build-up of oil, water, or dust
2. Position the reference surface between 200 mm (20 cm) and the maximum sensing range.
3. Position the target to be detected as close to the sensor as possible, and as far away from the reference surface as
possible.
4. Angle the sensing beam relative to the target and relative to the reference surface 10 degrees or more.
Banner Engineering Corp. Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or
replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty does not
cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR
TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO
BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES RESULTING FROM ANY PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY,
STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously
manufactured by Banner Engineering Corp. Any misuse, abuse, or improper application or installation of this product or use of the product for personal protection applications when the
product is identified as not intended for such purposes will void the product warranty. Any modifications to this product without prior express approval by Banner Engineering Corp will void
the product warranties. All specifications published in this document are subject to change; Banner reserves the right to modify product specifications or update documentation at any time.
Specifications and product information in English supersede that which is provided in any other language. For the most recent version of any documentation, refer to:
www.bannerengineering.com.
For patent information, see www.bannerengineering.com/patents.
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
©
Banner Engineering Corp. All rights reserved
