Discrete Output Distance Repeatability
Distance (mm) Repeatability (2000 mm Models)
95 to 300 ± 0.5 mm
300 to 1000 ± 0.25%
1000 to 2000 ± 0.5%
See the charts for the Repeatability of the 5000 mm and 10000 mm models.
Certifications
Banner Engineering BV
Park Lane, Culliganlaan 2F
bus 3, 1831 Diegem,
BELGIUM
Turck Banner LTD
Blenheim House, Blenheim
Court, Wickford, Essex
SS11 8YT, Great Britain
Industrial
Control
Equipment
3TJJ
Class 2 power
UL Environmental
Rating: Type 1
Required Overcurrent Protection
WARNING: Electrical connections must be made by qualified personnel in accordance with local and national electrical codes and
regulations.
Overcurrent protection is required to be provided by end product application per the supplied table.
Overcurrent protection may be provided with external fusing or via Current Limiting, Class 2 Power Supply.
Supply wiring leads < 24 AWG shall not be spliced.
For additional product support, go to www.bannerengineering.com.
Supply Wiring (AWG) Required Overcurrent Protection (Amps)
20 5.0
22 3.0
24 2.0
26 1.0
28 0.8
30 0.5
Performance Curves

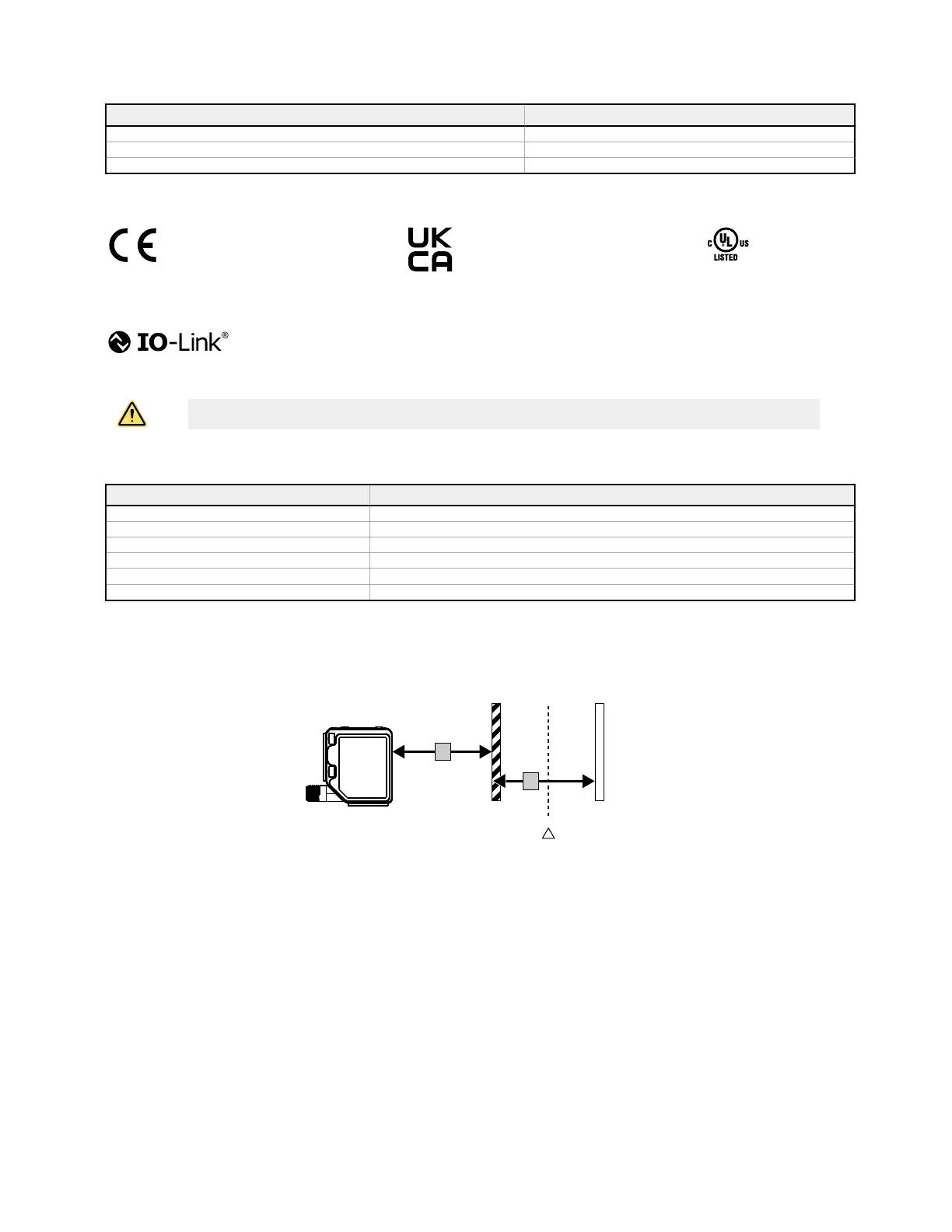

Figure 21. Minimum object separation distance (90% to 6% reflectance) for the 2000 mm models
Target
Switch Point
Distance
Background
X
Y
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
12 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G
