Banner Q5X Manual

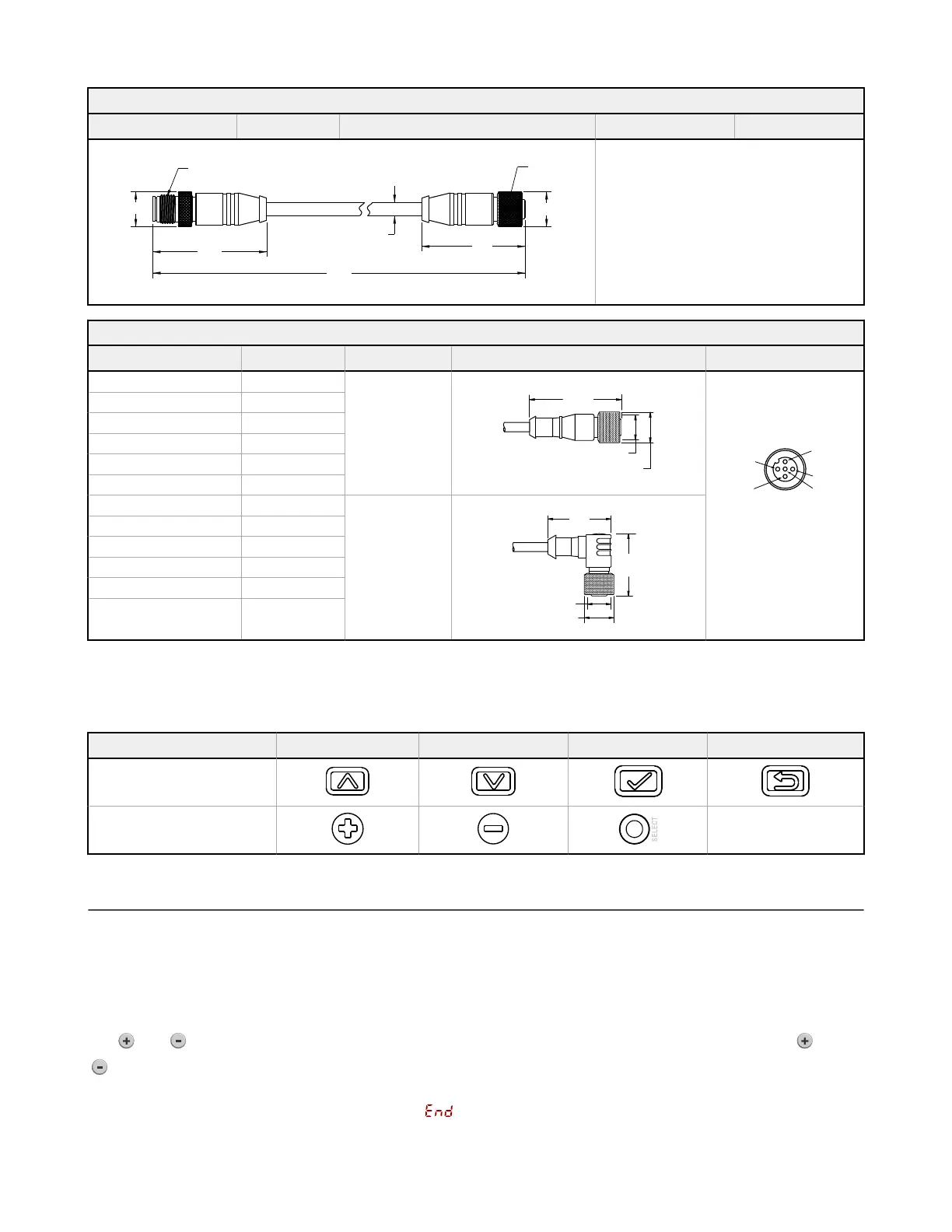

5-Pin Male Threaded and 5-Pin Female Quick Disconnect M12 Cordset with Shield—Double Ended
Model Length "L1" Style Pinout (Male) Pinout (Female)
M12 x 1
14.5
ø 5.9
14.5
“L1”
47.4
47.4
M12 x 1
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
5-Pin Threaded M12 Cordsets with Shield—Single Ended
Model Length Style Dimensions Pinout (Female)
MQDEC2-506 2 m (6.56 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
MQDEC2-515 5 m (16.4 ft)
MQDEC2-530 9 m (29.5 ft)
MQDEC2-550 15 m (49.2 ft)
MQDEC2-575 23 m (75.44 ft)
MQDEC2-5100 30.5 m (100 ft)
MQDEC2-506RA 2 m (6.56 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDEC2-515RA 5 m (16.4 ft)
MQDEC2-530RA 9 m (29.5 ft)
MQDEC2-550RA 15 m (49.2 ft)
MQDEC2-575RA 23 m (75.44 ft)
MQDEC2-5100RA 31 m (101.68 ft)
Button Map from RSD1 to Sensor
The sensor may be optionally connected to the Banner RSD1 remote display accessory. Refer to this table for the RSD1 button
association with your sensor.
Table 1: Button association between the RSD1 and the Q4X/Q5X sensors
Device
Up Button Down Button Enter Button Escape Button
RSD1
Q4X and Q5X N/A
Sensor Programming
Program the sensor using the buttons on the sensor or the remote input (limited programming options).
In addition to programming the sensor, use the remote input to disable the buttons for security, preventing unauthorized or
accidental programming changes. See the Instruction Manual, p/n 208794 for more information.
Setup Mode
Access Setup mode and the sensor menu from Run mode by pressing and holding MODE for longer than 2 seconds.
Use and to navigate through the menu. Press SELECT to select a menu option and access the submenus. Use and
to navigate through the submenus. Press SELECT to select a submenu option and return to the top menu, or press and hold
SELECT for longer than 2 seconds to select a submenu option and return immediately to Run mode.
To exit Setup mode and return to Run mode, navigate to
and press SELECT.
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
6 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G
