Connecting to RSD1

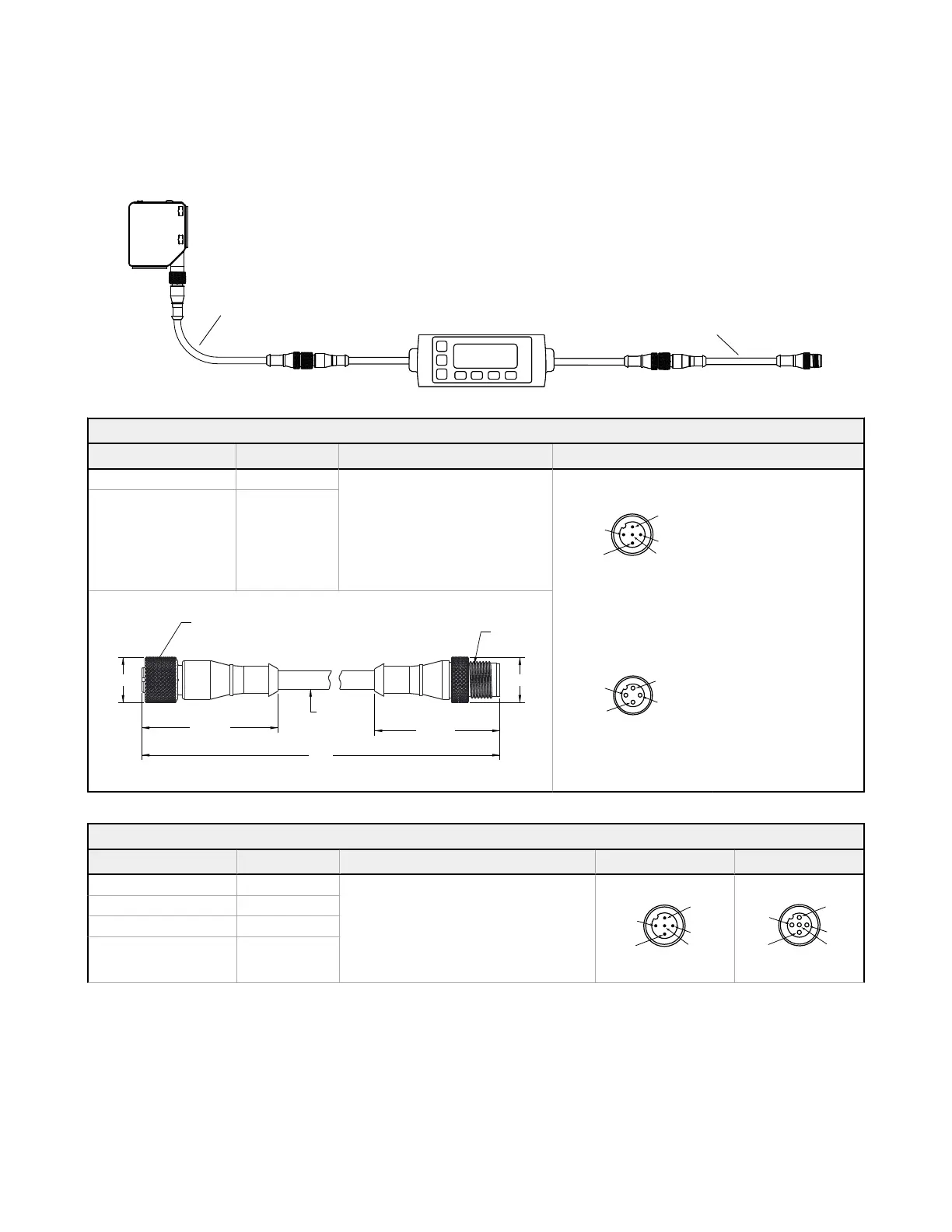

The following diagram depicts the connection of the Q5X to the optional RSD1 accessory.
Figure 18. Q5X to RSD1
MQDC-4501SS
Double Ended Sensor Pin 2 to Pin 5
MQDC-4506SS
MQDEC3-503SS
Double Ended Shielded
MQDEC3-506SS
MQDEC3-515SS
MQDEC3-530SS
MQDEC2-506
Flying Lead Shielded
MQDEC2-515
MQDEC2-530
RSD1
Q5X
Use these cordsets to connect the RSD1 to the Q5X sensor.
4-Pin Female and 5-Pin Male Threaded M12 Cordset—Double Ended
Model Length "L1" Style Pinout
MQDC-4501SS 0.30 m (0.98 ft)
Female Straight/ Male Straight
Male
1
4
5
3
2
1 = Brown
2 = Not Used
3 = Blue
4 = Black
5 = White
MQDC-4506SS 1.83 m (6.00 ft)
M12 X 1.0
43.5 ± 0.5
“L1”
ø 5.9
M12 X 1.0
ø 14.5
ø 14.5
40 ± 0.5
Female
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
Use these cordsets to connect the RSD1 to any PLC or IO block.
5-Pin Male Threaded and 5-Pin Female Quick Disconnect M12 Cordset with Shield—Double Ended
Model Length "L1" Style Pinout (Male) Pinout (Female)
MQDEC3-503SS 0.91 m (2.99 ft)
Female Straight/Male Straight
1
4
5
3
2
2
3
4
1
5
MQDEC3-506SS 1.83 m (6 ft)
MQDEC3-515SS 4.58 m (15 ft)
MQDEC3-530SS 9.2 m (30.2 ft)
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
P/N 208795 Rev. G www.bannerengineering.com - Tel: + 1 888 373 6767 5
