Buttons
Use the sensor buttons (SELECT)(TEACH), (+)(CH1/CH2), and (-)(MODE) to program the sensor.

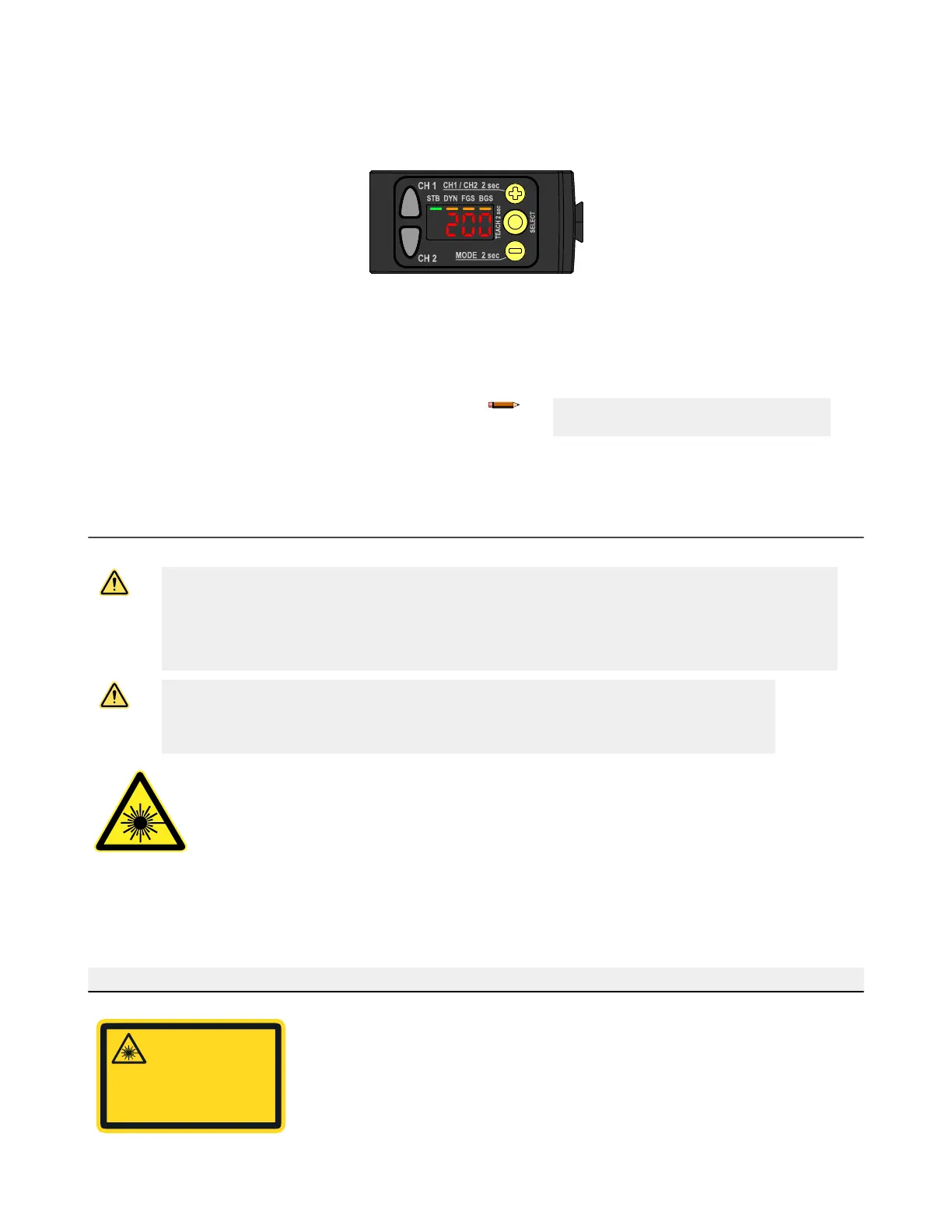

Figure 3. Button Layout
(SELECT)(TEACH)
• Press to select menu items in Setup mode
• Press and hold for longer than 2 seconds to start the
currently selected TEACH mode (the default is two-point
TEACH)
(+)(CH1/CH2)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to
increase numeric values
• Press and hold for longer than 2 seconds to switch
between Channel 1 and Channel 2
(-)(MODE)
• Press to navigate the sensor menu in Setup mode
• Press to change setting values; press and hold to
decrease numeric values
• Press and hold for longer than 2 seconds to enter Setup
mode
Note: When navigating the menu, the menu
items loop.
Class 2 Laser Description and Safety Information
Read the following safety information for proper use of a Class 2 laser.
CAUTION:
• Return defective units to the manufacturer.
• Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
• Do not attempt to disassemble this sensor for repair. A defective unit must be returned to the
manufacturer.
CAUTION:
• Never stare directly into the sensor lens.
• Laser light can damage your eyes.
• Avoid placing any mirror-like object in the beam. Never use a mirror as a retroreflective target.
For Safe Laser Use - Class 2 Lasers
• Do not stare at the laser.
• Do not point the laser at a person’s eye.
• Mount open laser beam paths either above or below eye level, where practical.
• Terminate the beam emitted by the laser product at the end of its useful path.
Class 2 lasers are lasers that emit visible radiation in the wavelength range from 400 nm to 700 nm, where eye protection is normally
afforded by aversion responses, including the blink reflex. This reaction may be expected to provide adequate protection under
reasonably foreseeable conditions of operation, including the use of optical instruments for intrabeam viewing.
Low-power lasers are, by definition, incapable of causing eye injury within the duration of a blink (aversion response) of 0.25
seconds. They also must emit only visible wavelengths (400 to 700 nm). Therefore, an ocular hazard may exist only if individuals
overcome their natural aversion to bright light and stare directly into the laser beam.
Class 2 Red Laser models with maximum range of 2000 mm: Reference IEC 60825-1:2007
Figure 4. FDA (CDRH) warning label (Class 2)
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
IEC 60825-1:2007. Wavelength
640-670nm; 1.0mW max. Complies with
21 CFR 1040.10 and 1040.11 except for deviations
pursuant to Laser Notice
No. 50, dated June 24, 2007.
Output: < 1.0 mW
Laser wavelength: 640 to 670 nm
Pulse Duration: 20 µs to 2 ms
Q5X Laser Measurement Sensor with Dual Discrete Outputs and IO-Link
2 www.bannerengineering.com - Tel: + 1 888 373 6767 P/N 208795 Rev. G
