• Ensure that there are no other photoelectric sources within the SX5 detection plane that can impair performance.
Monitoring through a window restriction — Do not use the SX5 to monitor an area (scan) through any window or transparent
materials. Doing so can result in false detection that will cause nuisance machine stoppages.
2.1.3 Product Specification
Label

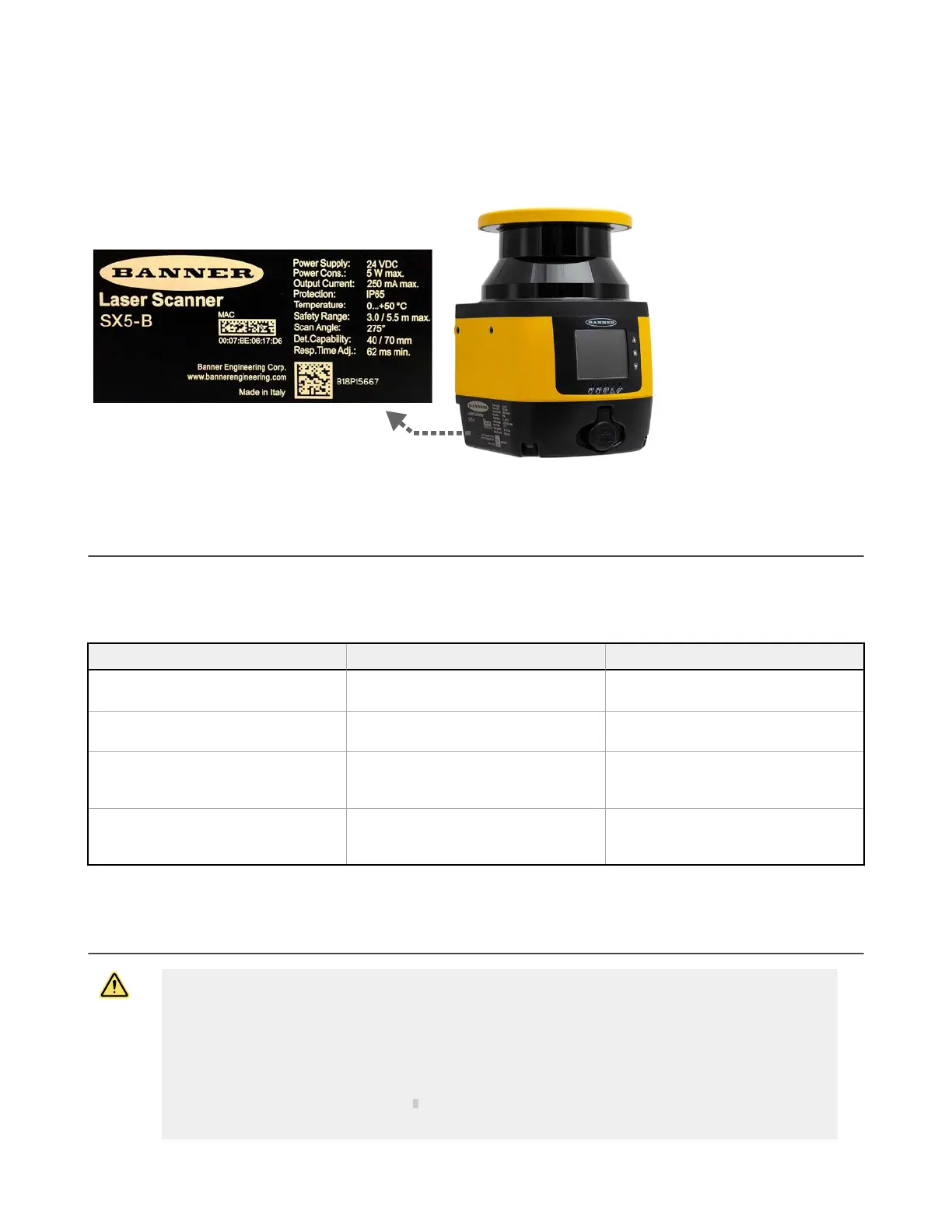

Figure 3. Product Identification Plate
2.2 Documents List
The information for applying and
configuring the SX5 Safety Laser Scanner is covered in several documents to simplify
access to information. The current version of the configuration software program and all PDF documents can be
downloaded from the Banner website
www.bannerengineering.com
.
Print out the relevant instructions to simplify reading and handling the documents.
Document Title Document Content Source
SX5 Safety Laser Scanner Datasheet General product information and diagnostic
reference
Included with the product in print and available
for download (p/n
208910
)
SX5soft Configuration and diagnostic software Download SX5soft from
www.bannerengineering.com
.
SX5 Safety Laser Scanner Instruction Manual Operation capabilities, functions, and
applications, for the machine designer, installer,
and end user
Download document part number
208913
SX5 Safety Laser Scanner Checkout Procedures Instructions for daily and semi-annual checkouts
of Scanner installation
Download document part numbers
208911
(Semi-Annual) and
208912
(Daily). Print as
needed and post near the guarded equipment.
2.3 Appropriate Applications and Limitations
WARNING: Read this Section Carefully Before Installing the System
If all mounting, installation, interfacing, and checkout procedures are not followed properly, the Banner
device cannot provide the protection for which it was designed. The user is responsible for ensuring that
all local, state, and national laws, rules, codes, or regulations relating to the installation and use of this
control system in any particular application are satisfied. Ensure that all legal requirements have been
met and that all technical installation and maintenance instructions contained in this manual are followed.
The user has the sole responsibility to ensure that this Banner device is installed and interfaced to the
guarded machine by
Qualified Persons
1
, in accordance with this manual and applicable safety
regulations. Failure to follow these instructions could result in serious injury or death.
