Banner SX5 - 9.4 Diagnostic Notes, Warnings, and Errors

Configuration
Accepted
Configuration Not
Accepted
Name Description
Safety Zone Signal
The device is correctly functioning. The device has detected an object
in the Safety Zone.
Reference Point Signal
Reference points have moved. The display sector in the direction of
the moved point is shown in blue.
9.4 Diagnostic Notes, Warnings, and Errors

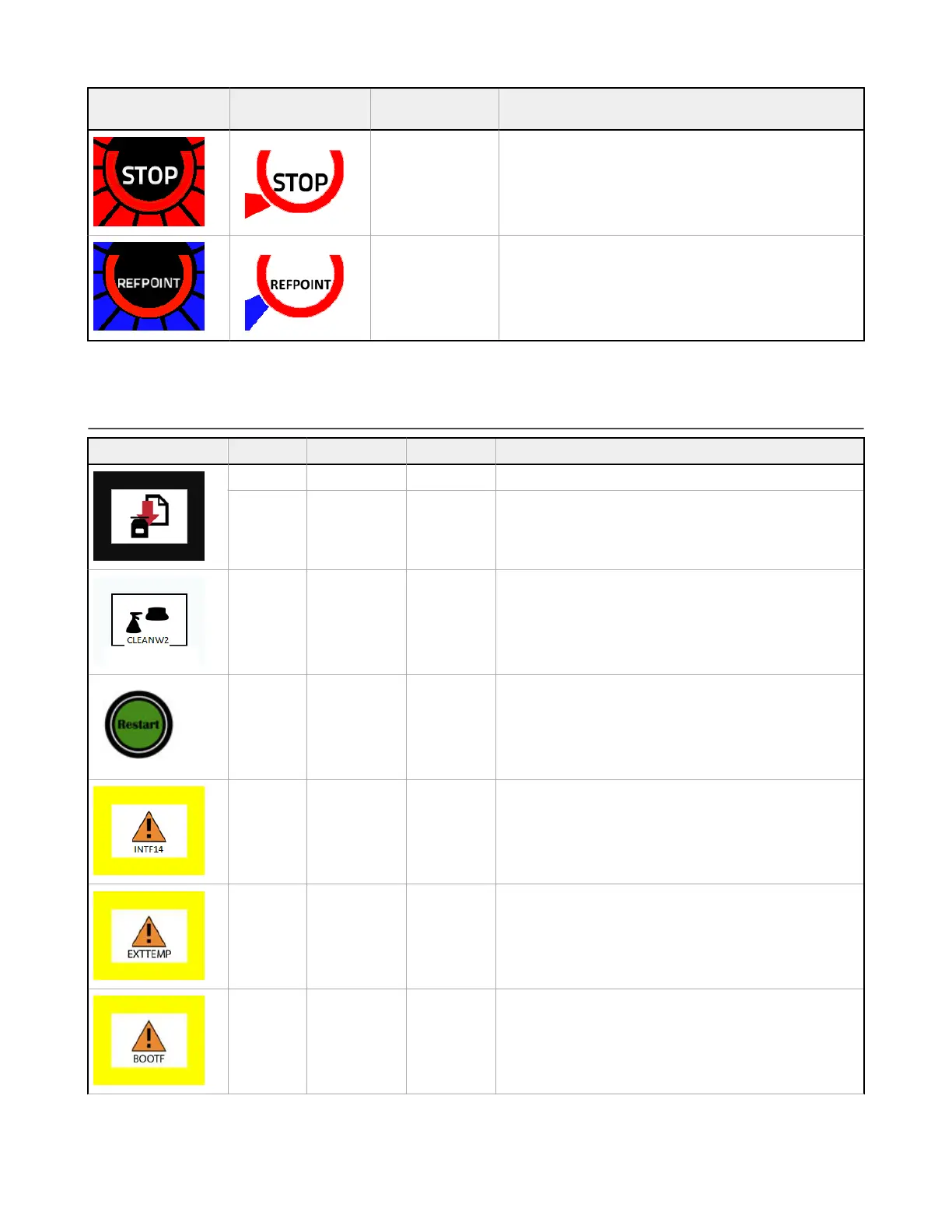

Icon Fault Code Device Status OSSD Status Description
DLDNF Normal Off Downloading the new firmware.
DLDNC Normal Off Downloading the new configuration.
CLEANW2 Normal On Clean the window to avoid a lockout condition.
ITLOCK1 Normal Off Interlock; waiting for a restart signal to turn the OSSDs back on.
INTF6 Normal On
Non-safety related internal test failure.
Reset the system using the reset function or cycle the power to the
device.
If the failure persists, contact the factory for support.
EXTTEMP Normal On
The device is operating in an environment that exceeds the specified
operating temperature range. Restore the correct ambient temperature
conditions.
BOOTF Normal Off
Invalid boot. Re-boot the system until the normal condition is restored.
If warning persists, contact the factory for support.
