43R5900103 /02 C-10, C-5

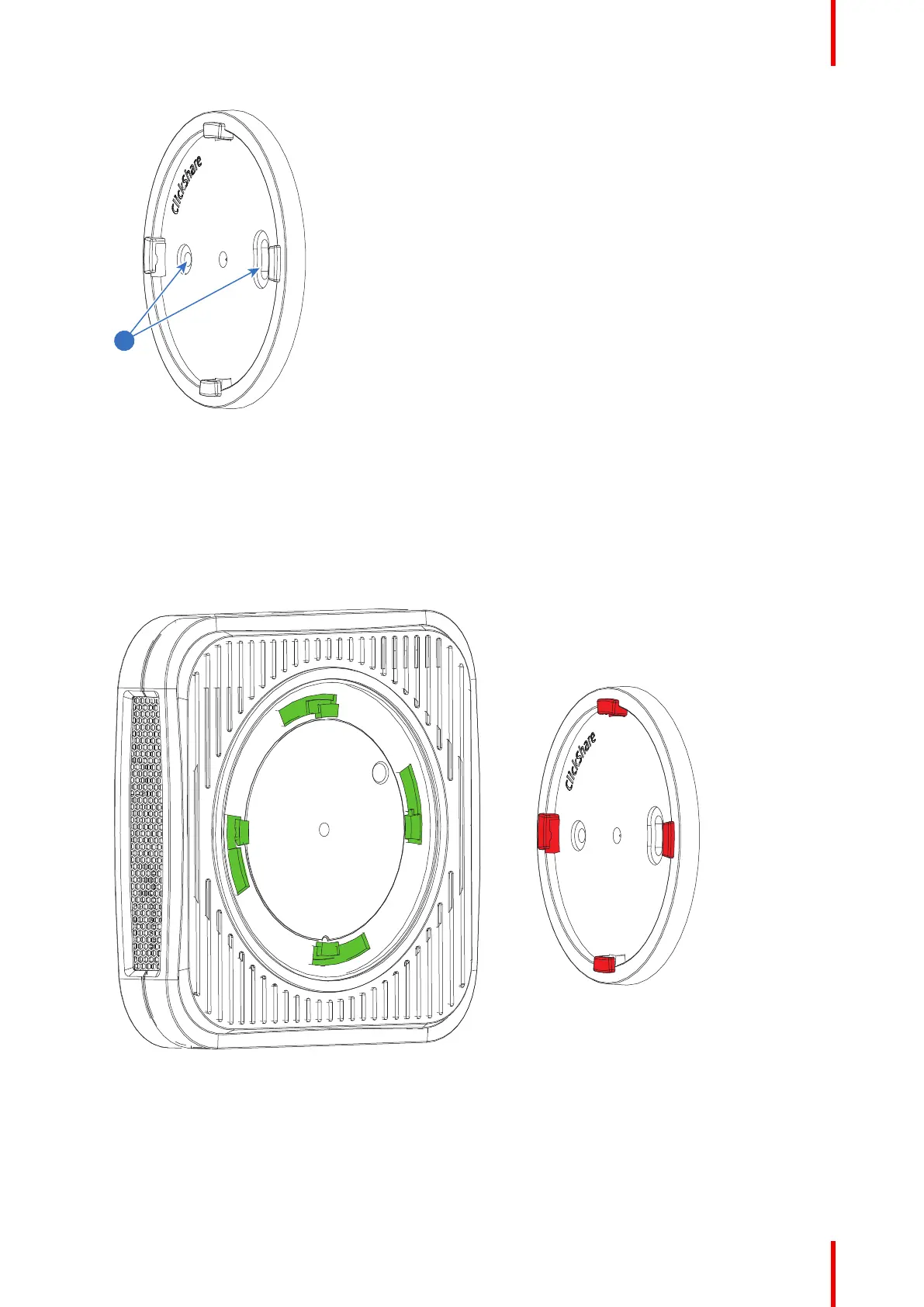

Image 4–1
3. Select a drill bit slightly smaller than the size of the used anchors to ensure a snug fit.
4. Drill the holes where marked.
5. Tap plastic screw anchors into the drill holes with a hammer (if needed, depending on the wall or ceiling
type).
6. Place the mounting base on the ceiling or wall, drive in the screws.
7. Place your device on the mounting base and turn it clockwise until it is locked.
Image 4–2
Mounting with the self-adhesive layer
1. Peel off the removable protection foil.
C-10, C-5 Installation
