not turned off, is visible and can be connected to by anyone. Mobile users are limited to the experience
described in the standalone setup. For Miracast, the Base Unit will have to be configured for Miracast to offer
a Wi-Fi direct connection.
Connecting the Base Unit to the Enterprise network opens the possibility for using the eXperience
Management Suite (XMS) for central management and/or using the auto-update functionality to keep your
installed base up to date.
A Base Unit which is connected to the network, can be monitored through SNMP, can be controlled and
monitored by other 3rd party systems such as Overture or Crestron or can be interfaced through the
ClickShare REST API.

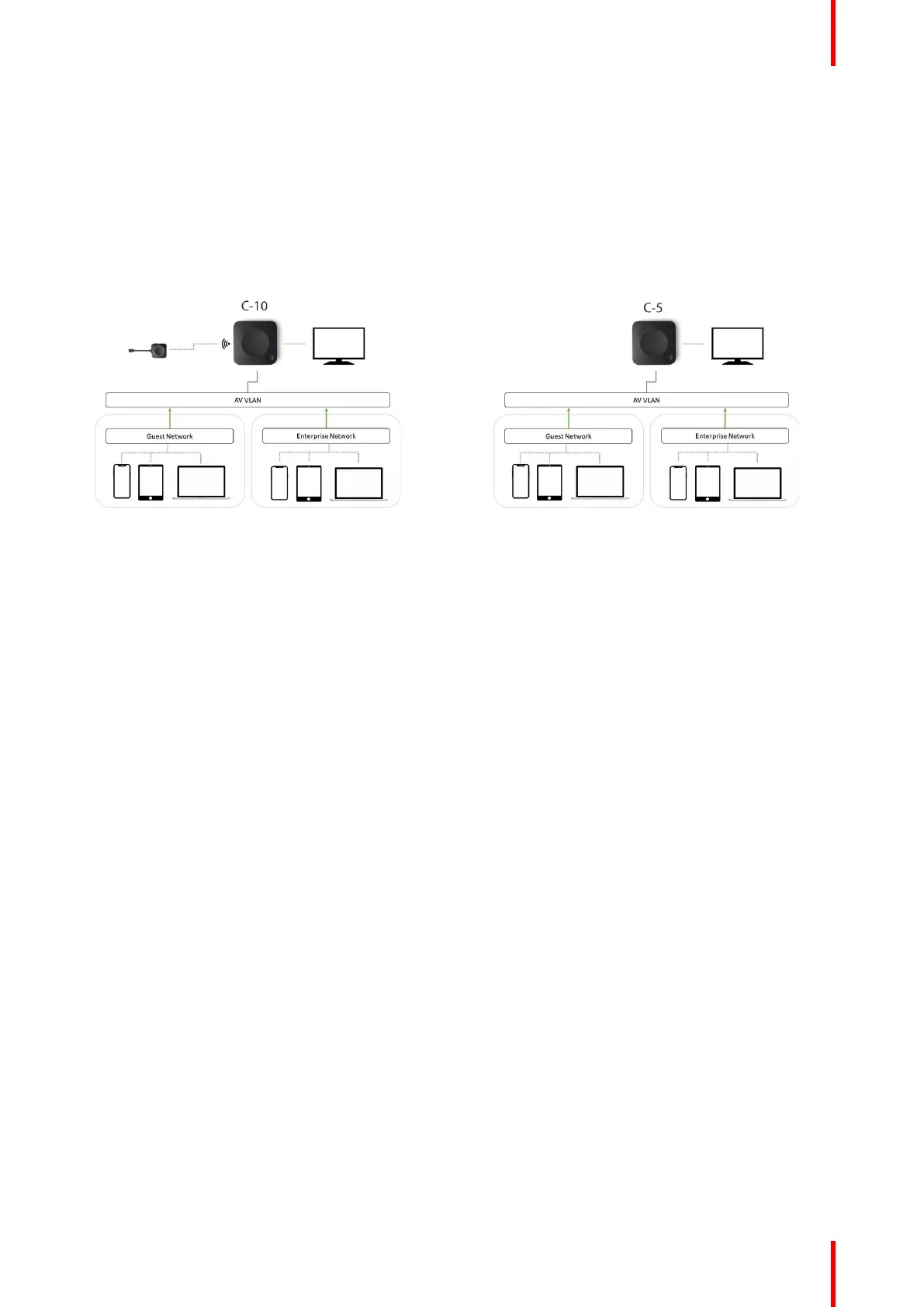

Image 4–8 Image 4–9
How to setup via the Configurator
1. Connect the Base Unit and browse to the ClickShare Configurator and log in.
2. Select Button in the System menu and click Edit settings.
Select External Access Point from the drop down menu and select the preferred authentication mode and
fill out the details.
Click Save Changes. For more information, see “Buttons”, page 108
3. Pair the Button again with the Base Unit.
4. Optionally the Base Unit’s WiFi can be set to Access Point or can be set to Off. For more info, see “Wi-Fi
settings, Wireless Client”, page 86
Setup via XMS
1. Log in to XMS and go to the Base Units tab.
2. In the device list select the Unit(s) for deploying network integration mode.
3. Open the Configure dropdown list and choose Network integration.
4. Select one of the authentication modes for network integration mode and fill out the details.
5. Re-pair the ClickShare Button with the updated Base Unit(s) to apply the new configuration
For more detailed information on how to use XMS, consult the XMS user guide.
4.8 Video signal connections to the Base Unit
About Video signal connection
A single screen can be connected to the Base Unit.
To connect a display, an HDMI connection should be made between the Base Unit and the display.
To connect
1. Connect the Base Unit to the display using a display cable.
C-10, C-5 Installation
