Barco ClickShare CB Core User Manual

R5917516 /00 ClickShare CB Core, CB Pro10
1
2
3
4
5

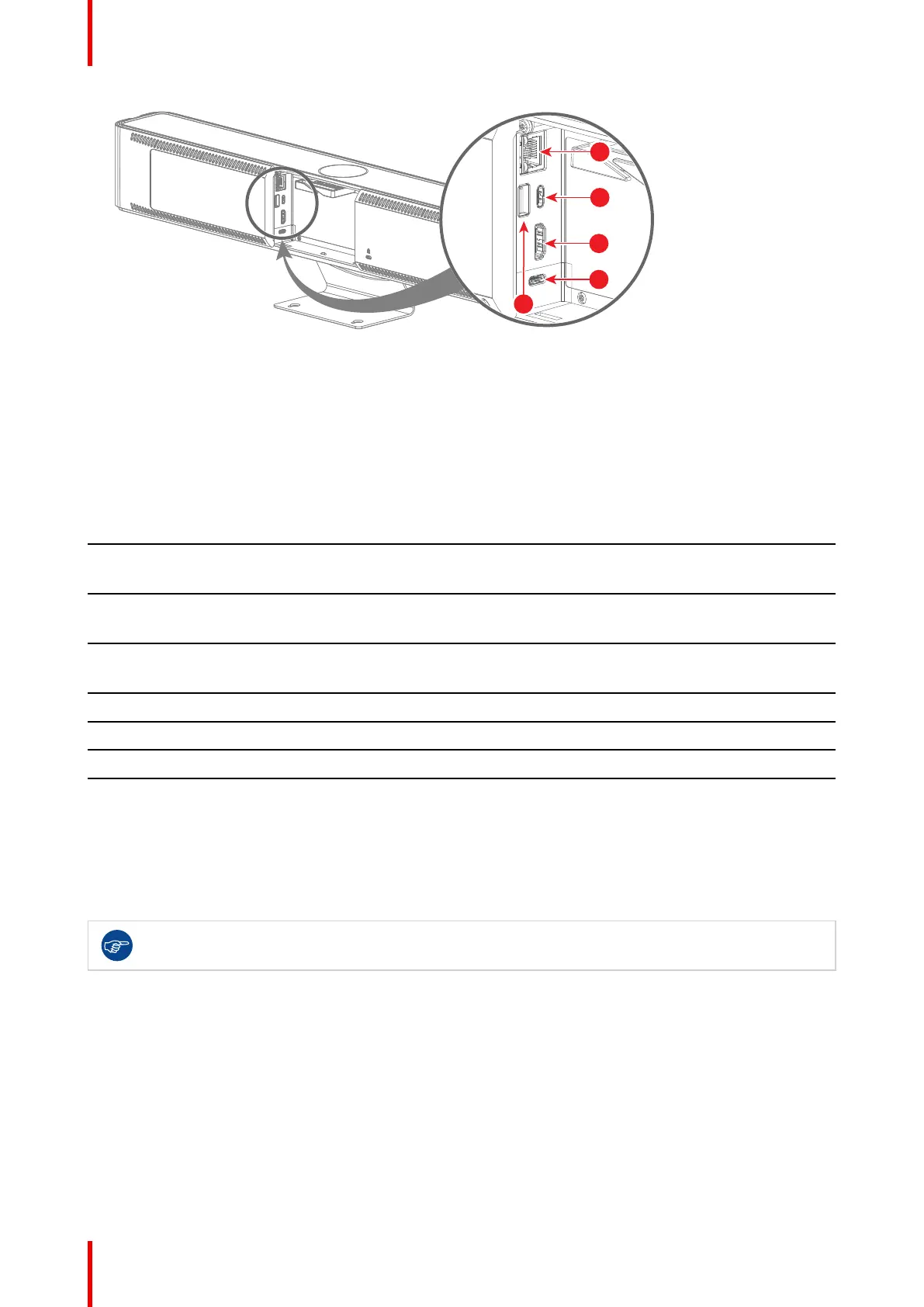

Image 1–6 CB Pro without a cable cover
1 LAN port
2 USB-C port (also for displays)
3 HDMI out port
4 USB-C port
5 USB-A port (also for for touch functionality)
Collaboration bar LED ring
There is an LED ring around the camera module that makes it easy to tell at a glance what the current status
of the ClickShare and its peripherals are.
See below table to know what each color or animation stands for:
LED status
Meaning
Breathing white Booting
Standby
Red - purple spinning animation Starting to share
Updating firmware
Steady white Sharing
Device powered on
Purple Peripherals are being used
Red Microphone muted
Blinking green Pairing in progress
Blinking red Error
1.2 The conferencing Button
What is a conferencing Button
The conferencing Button will be referred to as “Button” throughout the manual.
The conferencing Button is a small USB powered wireless device that simplifies sharing and using ClickShare
to a single press of a button.
Generation 4 Button overview
A generation 4 Button is easily identified by its USB-C connector to pair with Base Unit(s) and connect with
devices.
CB Core, CB Pro introduction

Barco ClickShare CB Core Specifications

General

Brand	Barco
Model	ClickShare CB Core
Category	DVD Player
Language	English
