Barco ClickShare CB Core User Manual

R5917516 /00 ClickShare CB Core, CB Pro46
5.1 Front cover replacement
About cover replacement
Only the front cover can be replaced if it has been damaged. It is not recommended to frequently detach the
front cover nor operate the Base Unit without a front cover attached.
Contact Barco to get a new front cover if a replacement is deemed necessary.
How to replace the cover
1. Disconnect or detach the Base Unit for easy access. (optional)
2. Detach the front cover.
Note: Use caution to avoid damaging the camera lens and speakers!
a) Place the Base Unit on its backside or upside down.
Note: Do not place the Base Unit on its front, as this might damage the camera!
b) Unscrew the five Phillips screws that hold the wall mount to the Base Unit.

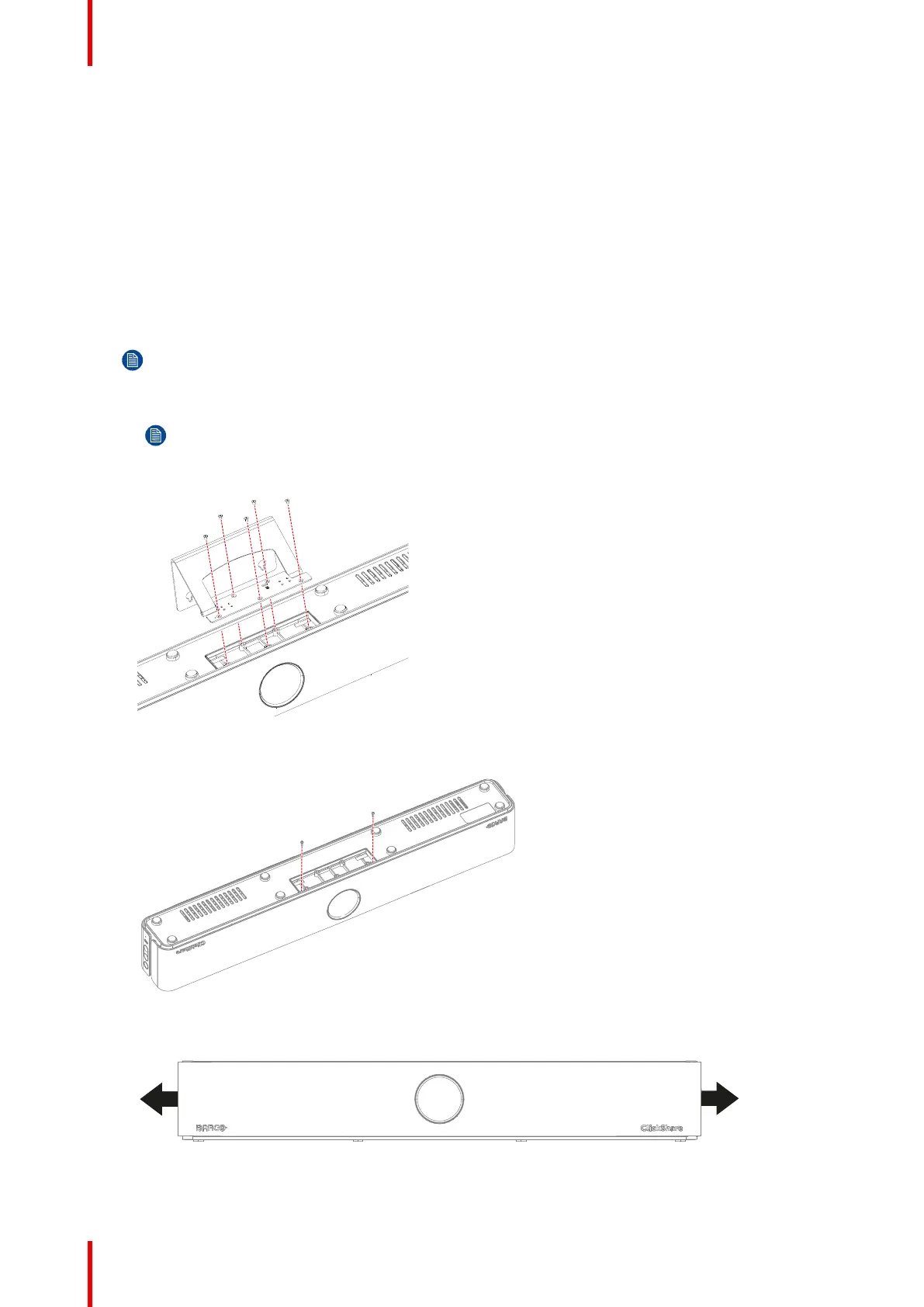

Image 5–1 Location of the five screws to unscrew
c) Unscrew the two Philips screws that hold the front cover to the Base Unit.
Image 5–2 Location of the two front cover screws to unscrew
d) Pull the sides away from the Base Unit until the fixations are no longer clicked into the Base Unit.
Image 5–3 Pull direction for the side fixations
