User Manual - Getting to know the projector
4.3 Connectivity
he projector features a wide range of video inputs and command/control connectors.

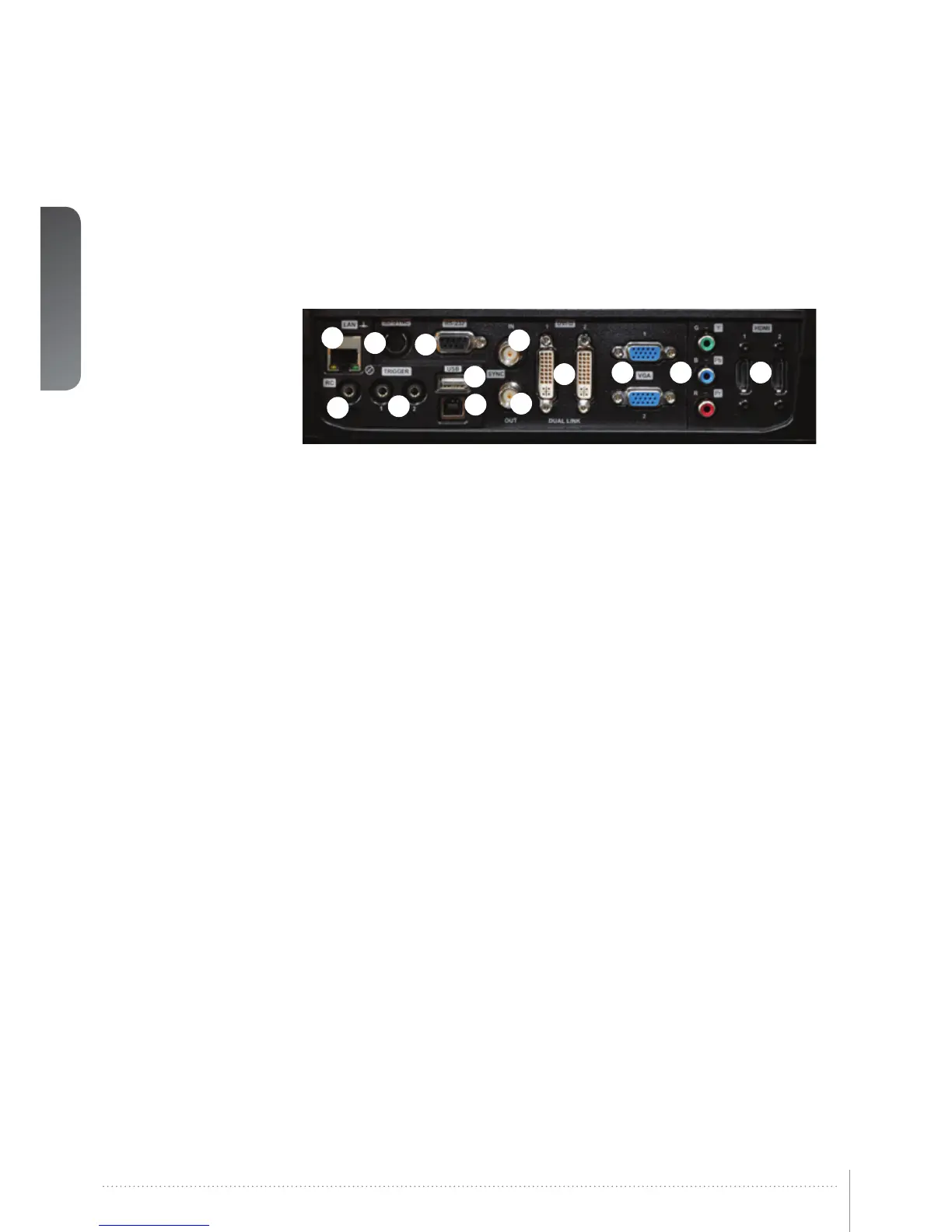

Figure 4-7 shows the connector panel.
Figure 4-7. Connector panel
A LAN: 10/100 Mbit Ethernet connector for command, control and software upgrade.
B RC INPUT: 3.5mm mini-jack connector. Allows connection of external IR receiver or
wired remote control.
C TRIGGERS: 3.5mm mini-jack connector triggers. Used for controlling peripheral
equipment like motorized screens.
D 3D SYNC: For 1080/WUXGA 3D projectors used to attach external ir-glass emitters
E RS-232: Allows for wired remote control and monitoring of many projector functions
used in installation environments.
F USB-A: Allows for software upgrades using a standard USB memory stick.
G USB-B: Reserved for future use.
H SYNC-IN: Allows for taking an external vertical sync signal and using that with the select
video input. This is mainly used in multiple projector installations with requirement of
video synchronization between the units.
I SYNC-OUT: Constantly outputs the vertical sync signal of the active video input. This
is mainly used in multiple projector installations with requirement of synchronization
between the units.
J DVI-D: Two Dual Link DVI-D connectors with bandwidth up to 330 Mhz total. These
connectors can also be used to form one uniform image by feeding half of the image
into each connector. HDCP compliant for sources up 165 Mhz.
K VGA: Two VGA connectors with bandwidth up to 170 Mhz
L YPbPr: Analog video input supporting YPbPr and RGB (sync-on-green) video standard
up to 1080i.
M HDMI 1.3: Two HDMI 1.3a connectors with bandwidth up to 165 Mhz each. These
connectors can also be used to form one uniform image by feeding half of the image
into each connector. HDCP compliant. All video formats specified by the HDMI 1.3a are
supported.
A
C
B
D
E
F
H
I
J
K
G
L
M
