6.4 Multi-channel 3D synchronization
X-PORT DCC120 has advanced capabilities for handling synchronization of multiple projec-
tors in a 3D installation.
6.4.1 Synchronous frame sequential
A typical synchronous frame sequential 3D setup is shown in Figure 6-2.

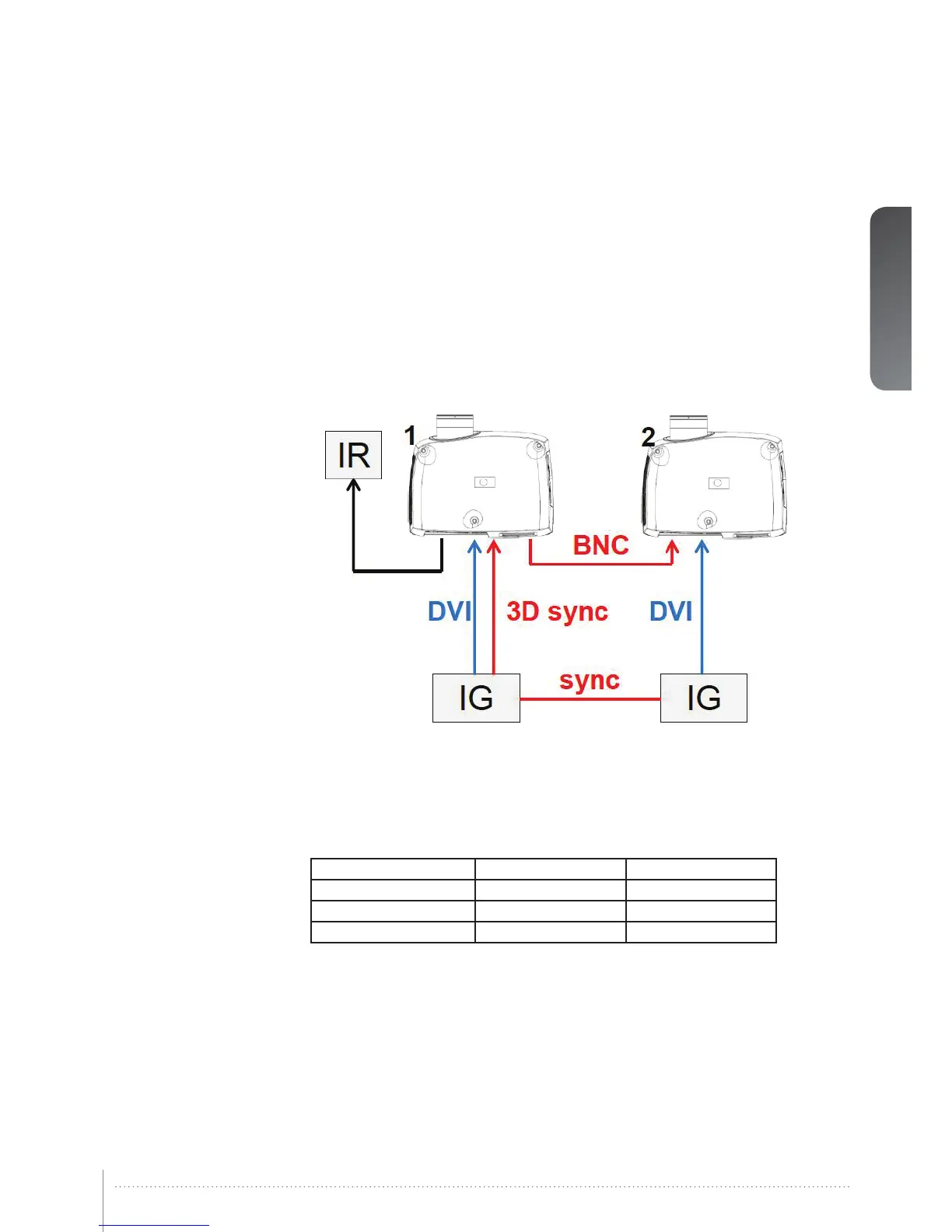

Figure 6-2. Synchronous frame sequential 3D
In this case IGs are synchronized and 3D sync from the source is connected from the DIN
connector on the IG to the BNC sync-in connector. The source 3D sync is then sent to every
projector in the setup. See table below.
SETTING PROJECTOR 1 PROJECTOR 2
3D Frame sequential Frame sequential
3D L/R sync BNC sync-in BNC sync-in
3D BNC sync-out signal Pass through Pass through
6.4.2 Asynchronous frame sequential
This mode is not supported.
