5.2 Adjusting on screen image size and position
Adjusting the placement of the image on screen can be done using the:
1. Adjustable feet (E in Figure 5-1).
2. Lens shift mechanism controlled from the keypad, the remote control, RS-232 or LAN (A
in Figure 9).
3. Zoom (for lenses with zoom) in the lens controlled from the keypad, the remote control,
RS-232 or LAN (B in Figure 5-1).
After the correct image size and position is found, please adjust the image focus using the
keypad, the remote control, RS-232 or LAN. (C in Figure 5-1).

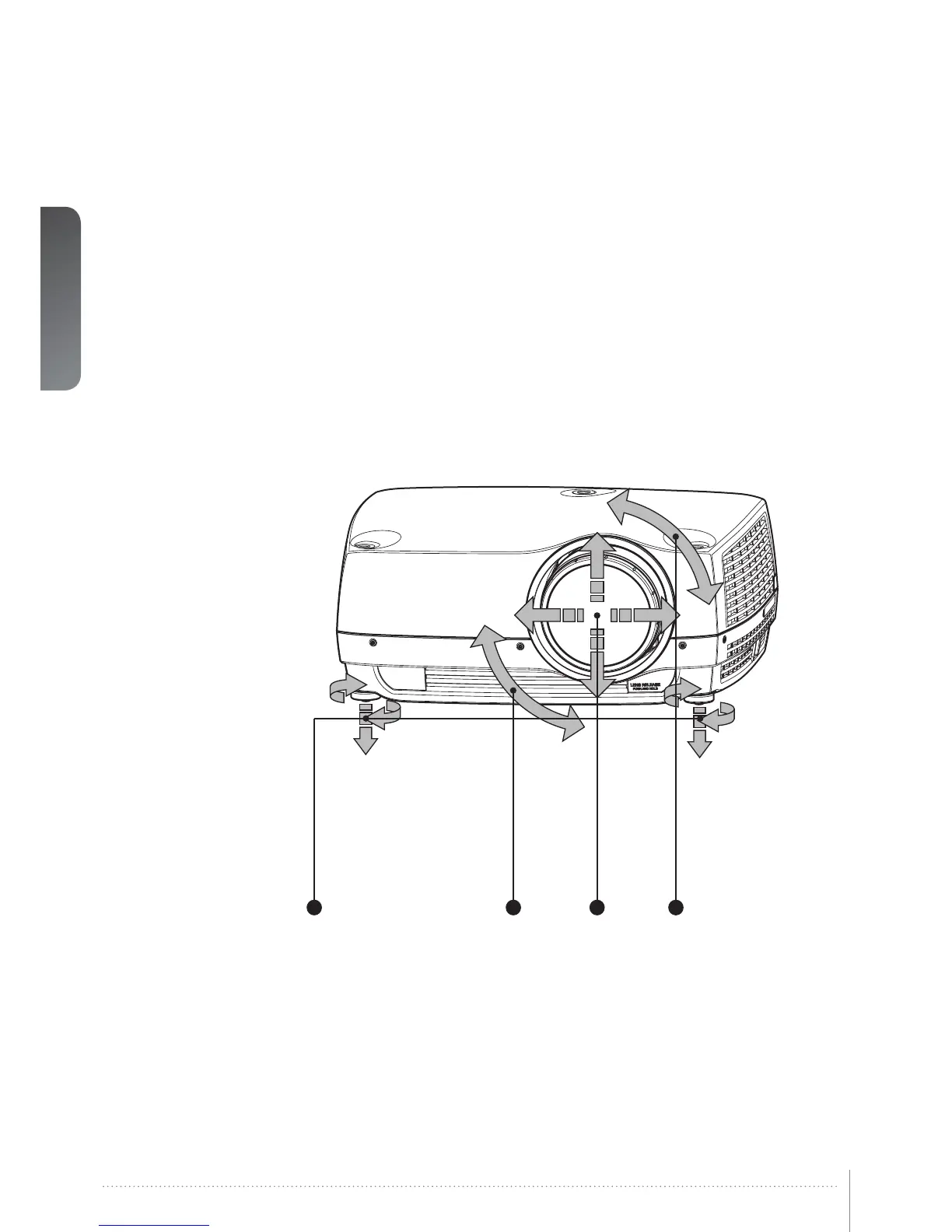

Figure 5-1. Image size ans position adjustment
5.3 Lamp operation
The projector is fitted with two individual projection lamps* that can be run in various modes.
In addition, lamps can be replaced as needed separately. This ensures an optimized cost of
ownership. Individual lamp timers are maintained for each lamp.
Lamp operation mode is controlled in the INSTALLATION > LAMPS sub menu.
* UHP lamp projectors only. LED projectors have only one lamp.
B
AE
C
To Next Page
