Barco DP2K-C Series Installation Manual

6. Input & communication
6. INPUT & COMMUNICATION
Overview
• Introduction
• Local keyp ad of the DP2K C-series projector
• Communication por ts of the D P2 K C-series projector
• Source input ports of the D P2K C-series projector
• LED indic ations on the Integrated Cinem a Processor module
6.1 Introduction
General
The input & commun ication s ide of a DP2K C-series projector consists of a button module and 3 s eparate removable units, fan
controller module, Integrated cinema processor (ICP), HDS DI module and a Cinema controller m odule.
1
2
3
4
5
6
A
B
C
G
D
F
E

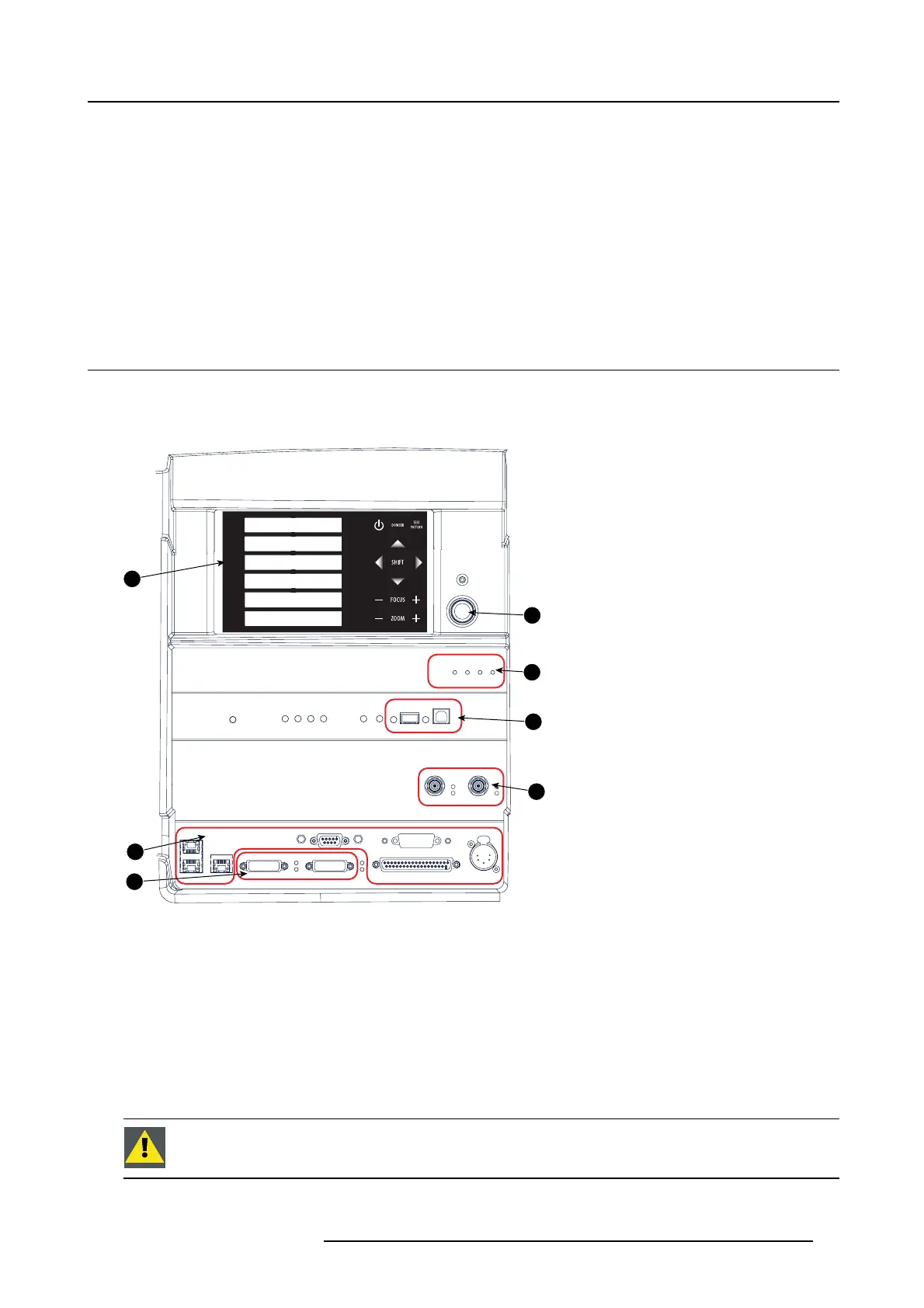

Image 6-1
Input and communication
A
Local keypad (button module)
B
Communication ports
C
DVI input ports
D
Socket for security key
E Fan controller module
F
USB ports (for future ex pansi
on) and LED indications for service purposes
G SMPTE inputs (HDSDI) ( only f
or 2K projectors)
CAUTION: A unit may only be removed by qualified service p ersonnel. Removing a un it will result in an
authorization request upon starting.
R5905050 DP2K C-SERIES 10/07/2012 47
