Barco DP2K-C Series Installation Manual

5. Lenses & lens holder
SCREEN
DMD
Lp1
Lp2
Fp1
Fp2
SCREEN
DMD
Lp3
Lp4
Fp3
Fp4
(Scheimpflug)

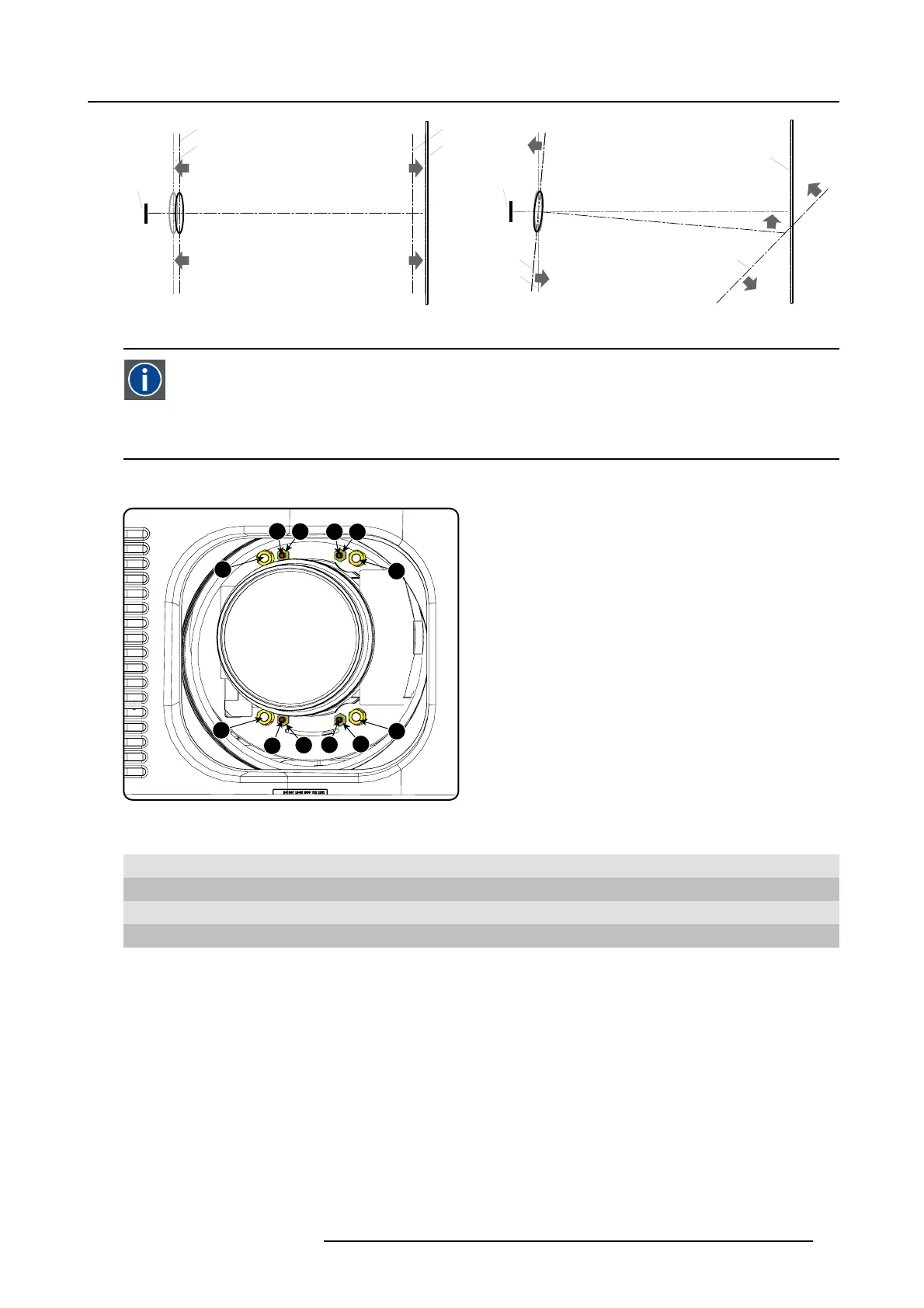

Image 5-18
Scheimpflug principle
Scheimpflug principle
The "plane of sharp focus" can be changed so that any plane can be brought into sharp focus. W hen the DM D plane
and lens plane are parallel, the plane of sharp focus will also be parallel to these two planes. If, h owever, the lens
plane is tilted with respect to the DMD plane, the plane of sharp focus will also be tilted accord
ing to geometrical and
optical properties. T he DMD plane, the principal lens plane and the sharp focus plane will intersect in a line be low the
projector for downward lens tilt.
Scheimpflug adjustment points
4
1
2
3
d
D
c
C
A
a
B
b
Image 5-19
Scheimpflug adjustments
Indication on drawing Function
4 Locking nut
1, 2 and 3
Scheimp flug adjustment nuts
A, B, C and D Set screws
a, b, c and d lock n uts
1, 2 and 3 ar e adjustment points.
4 is a locking point and NOT us ed during Scheimpflug adjustment.
Necessary tools
• Allenkey3mm
• Nut driver 13 mm
• Nut driver 10 mm
How to adjust
1. Project a gree n focus pattern.
R5905050 DP2K C-SERIES 10/07/2012
43
